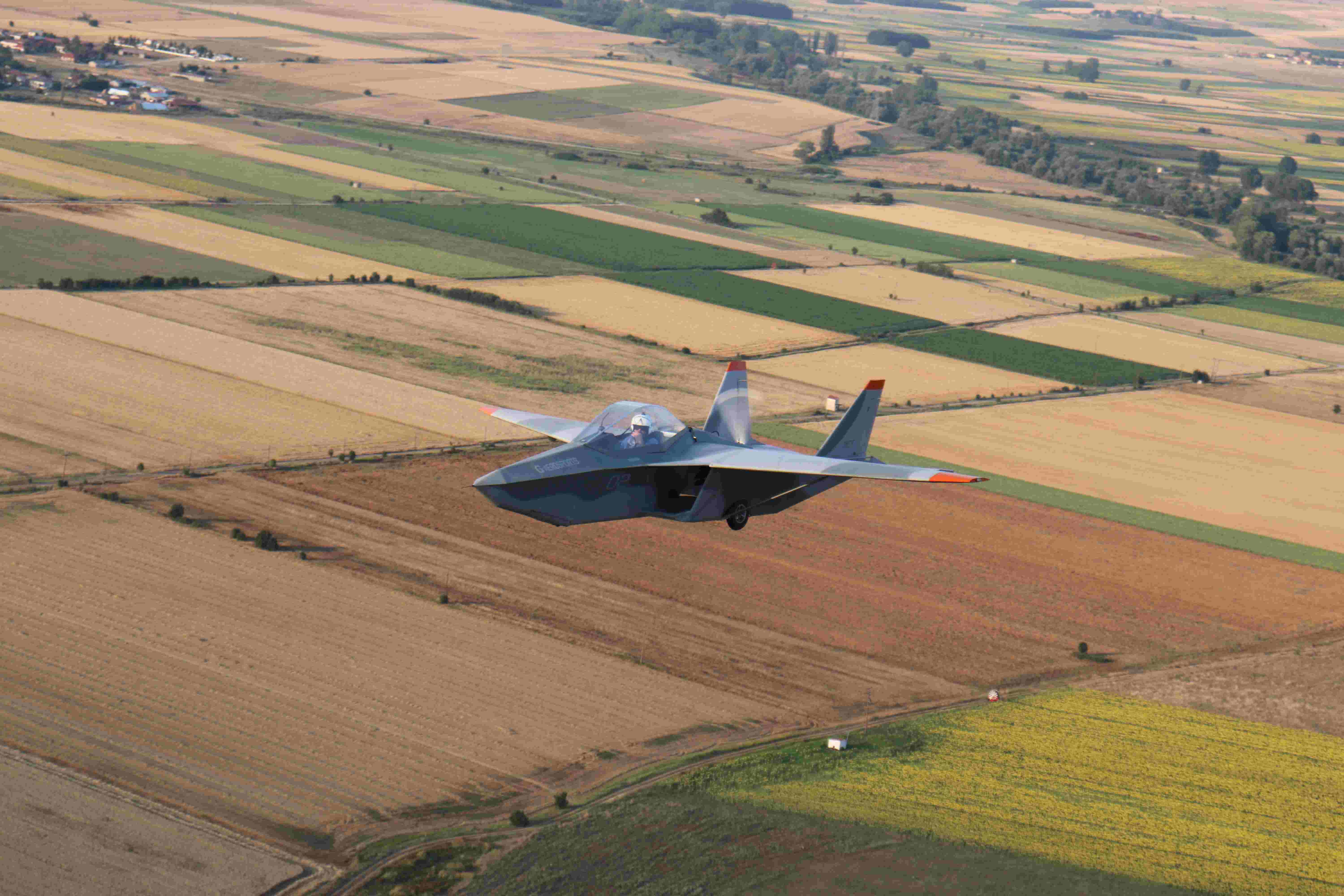

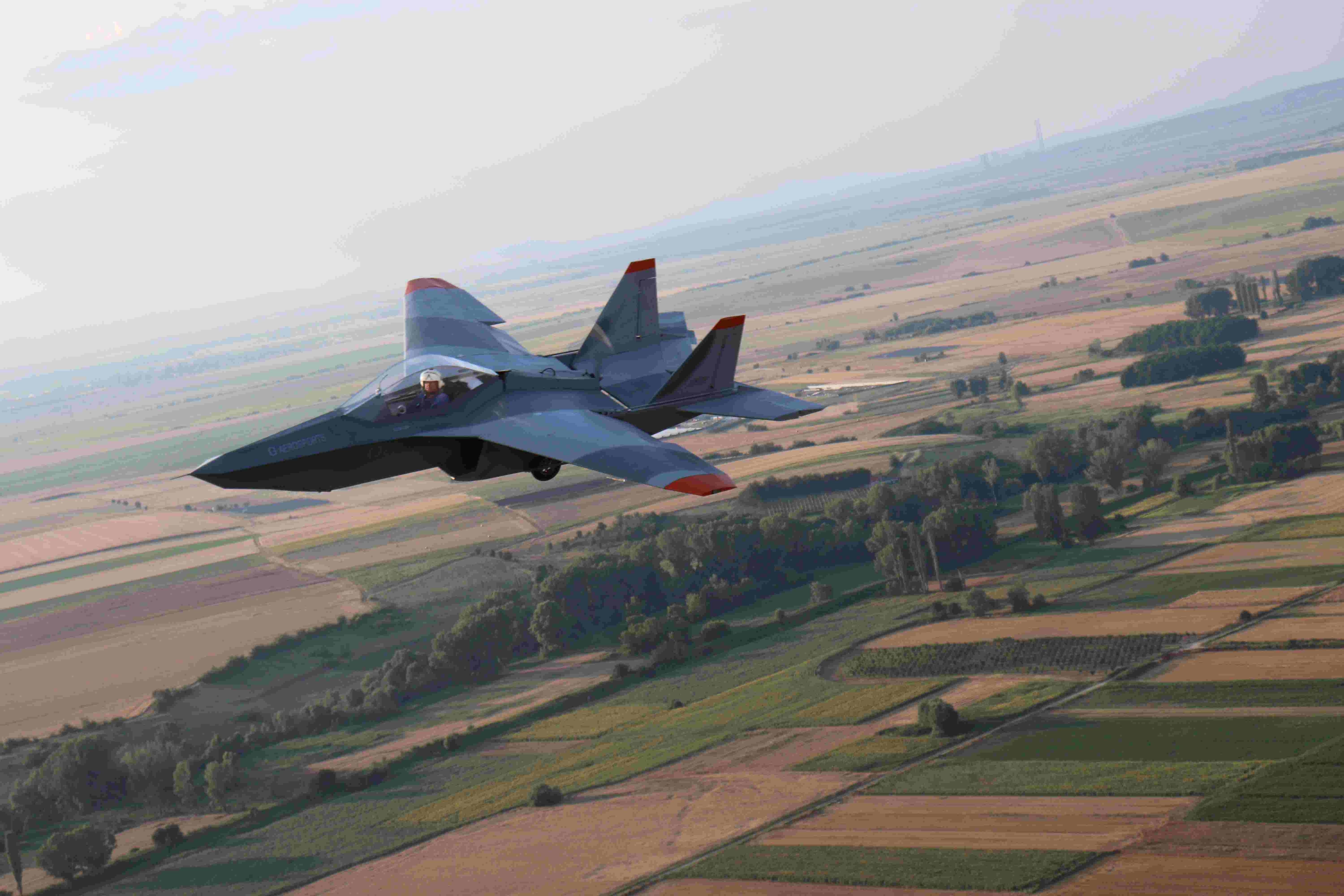

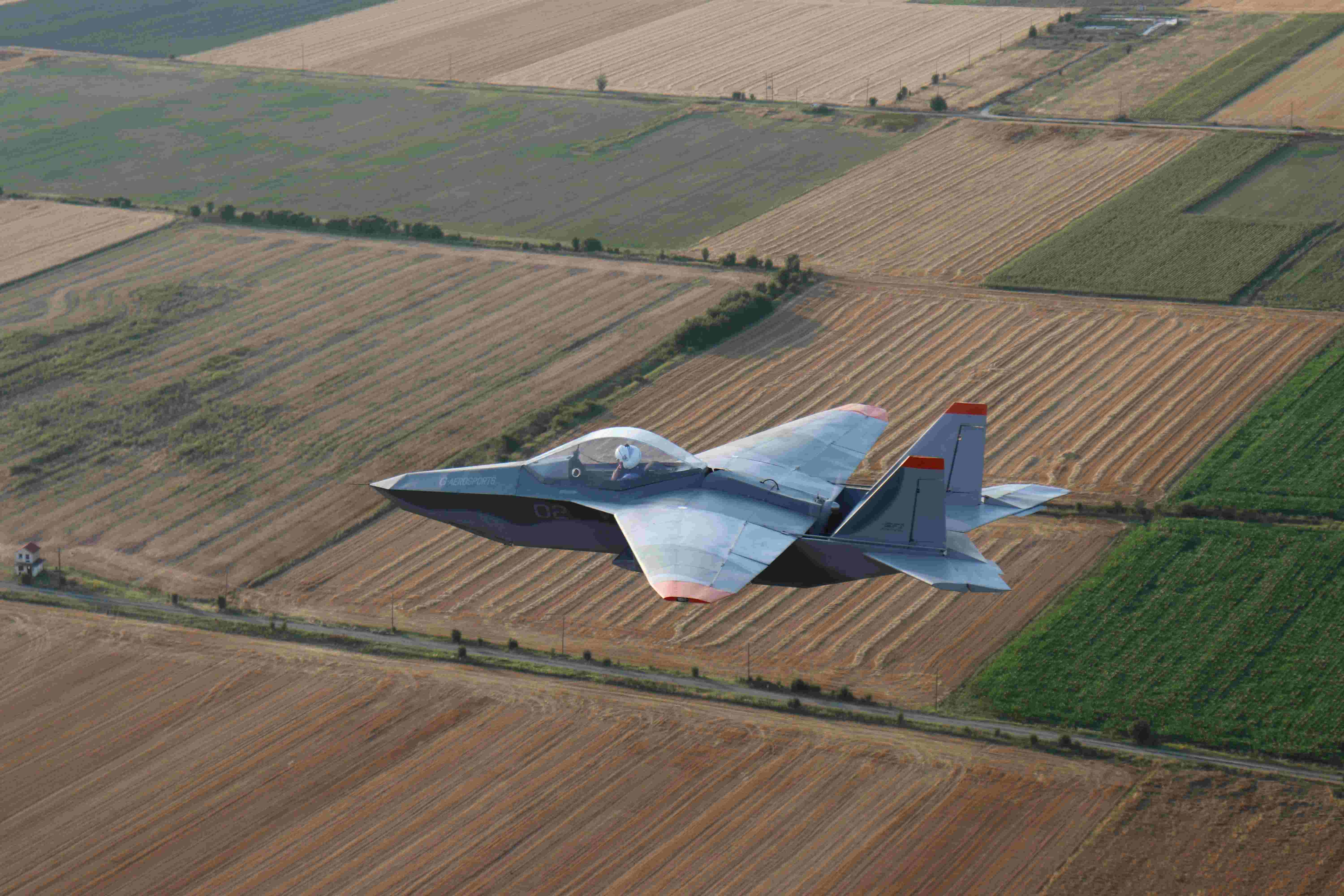

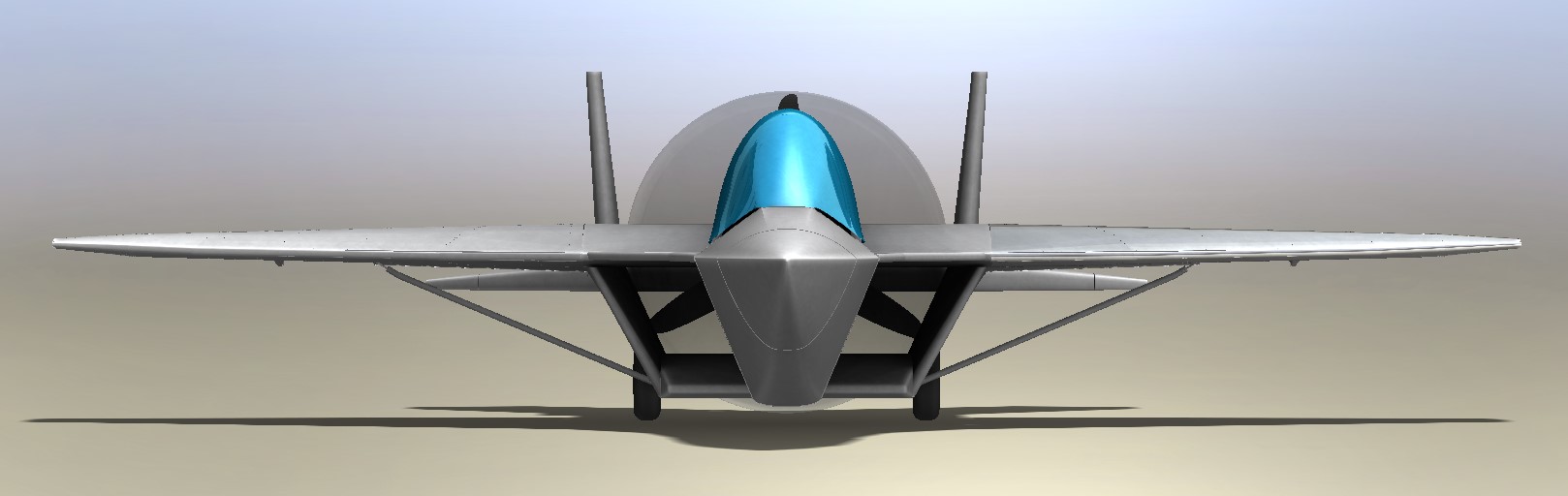

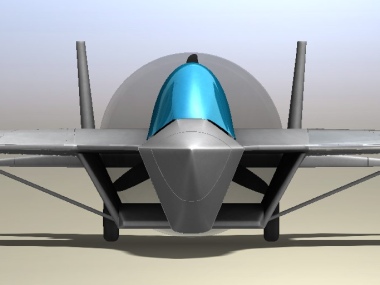

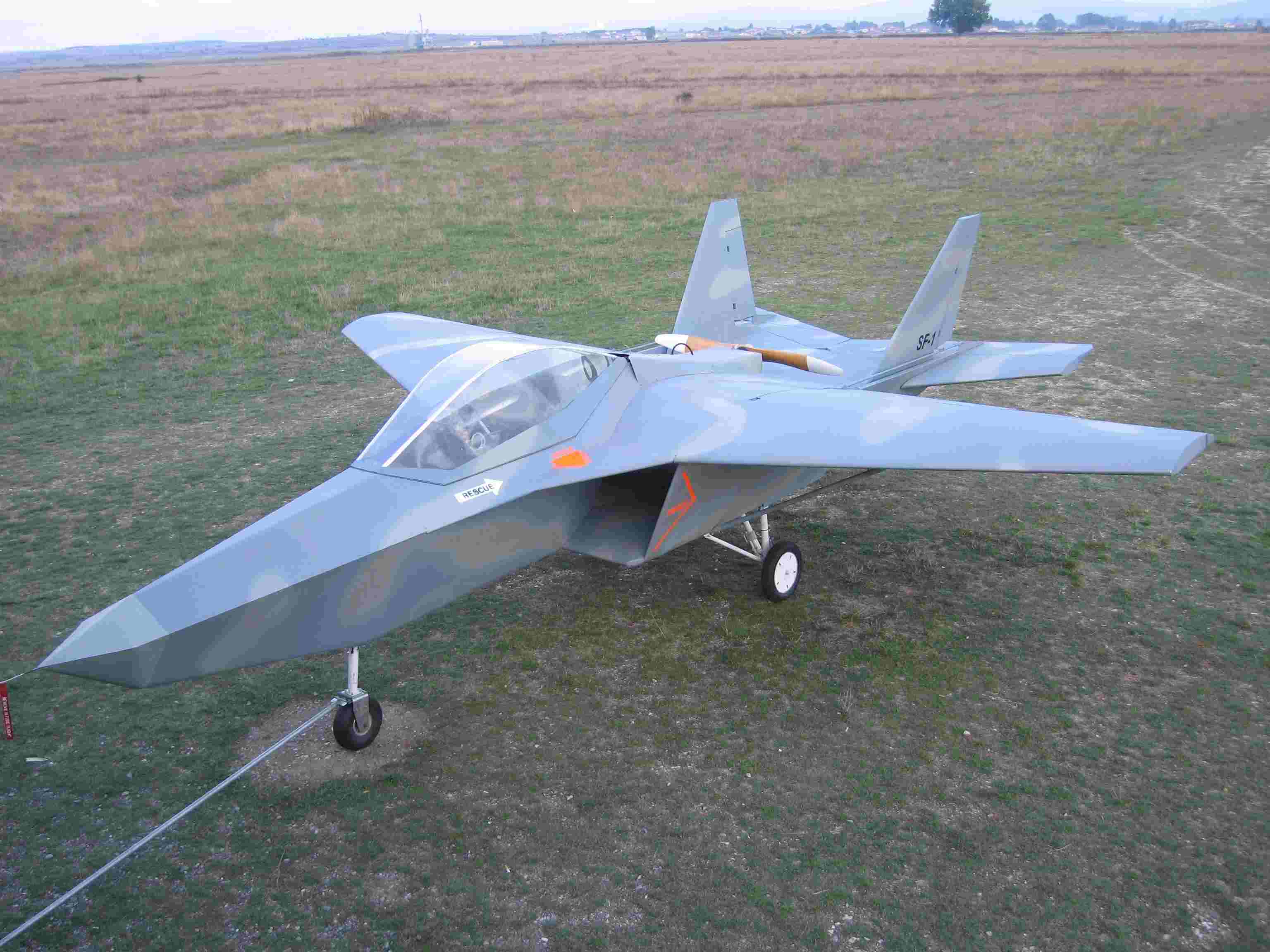

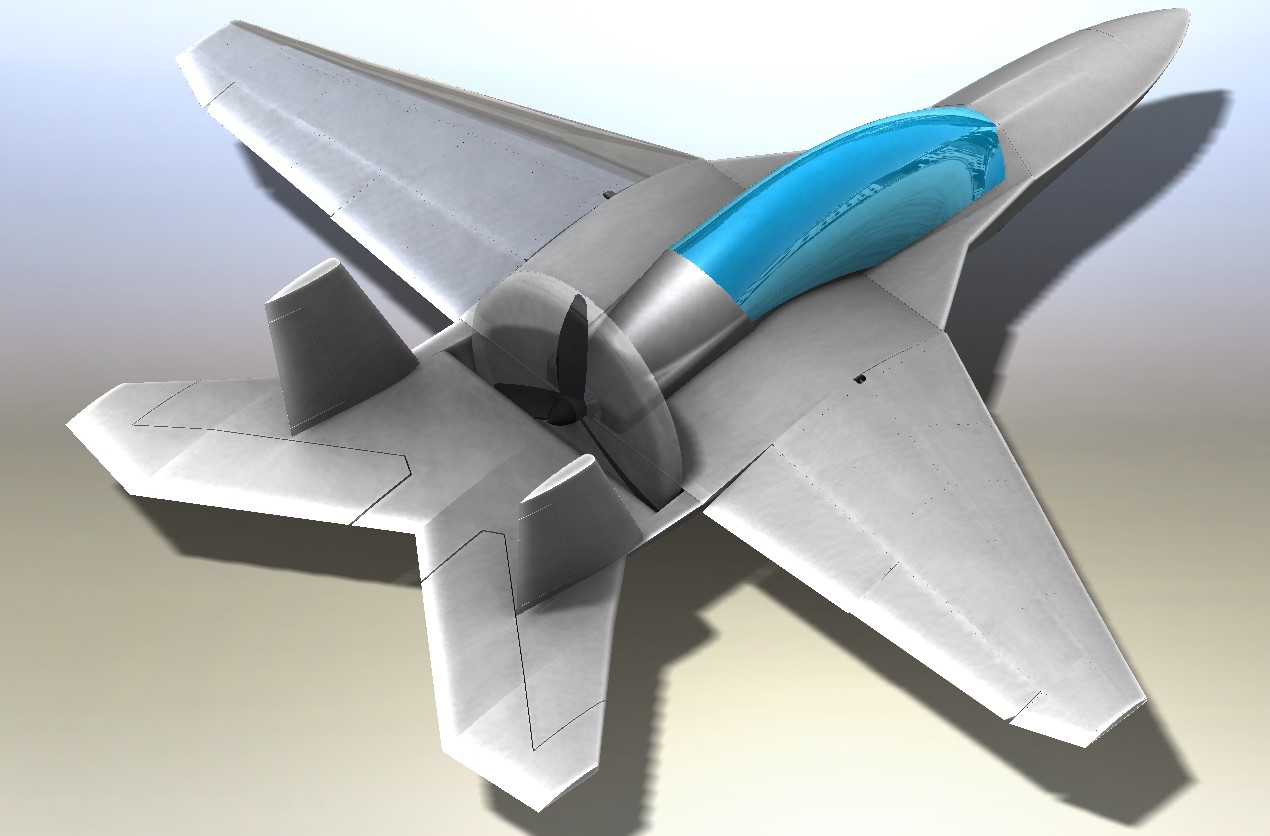

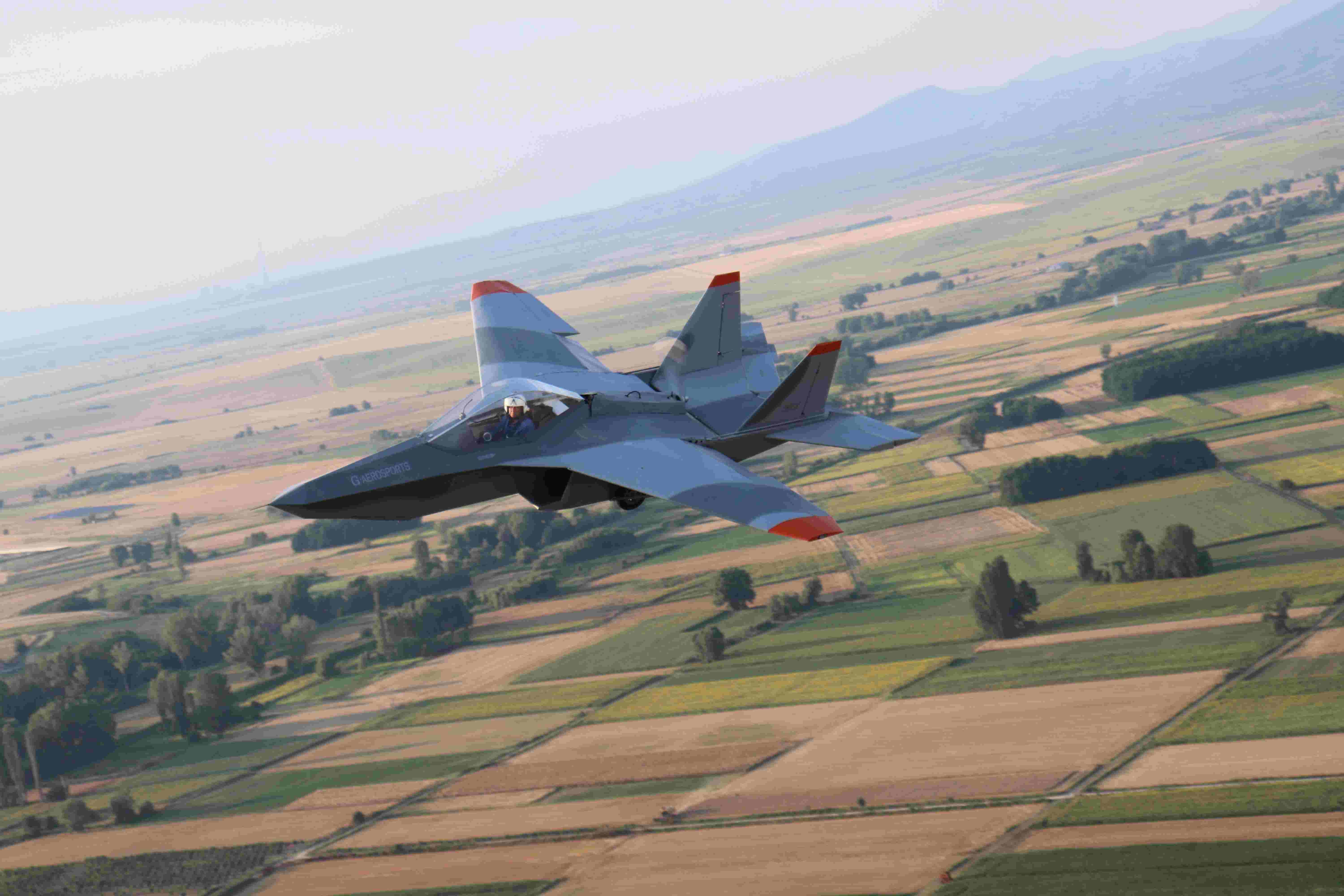

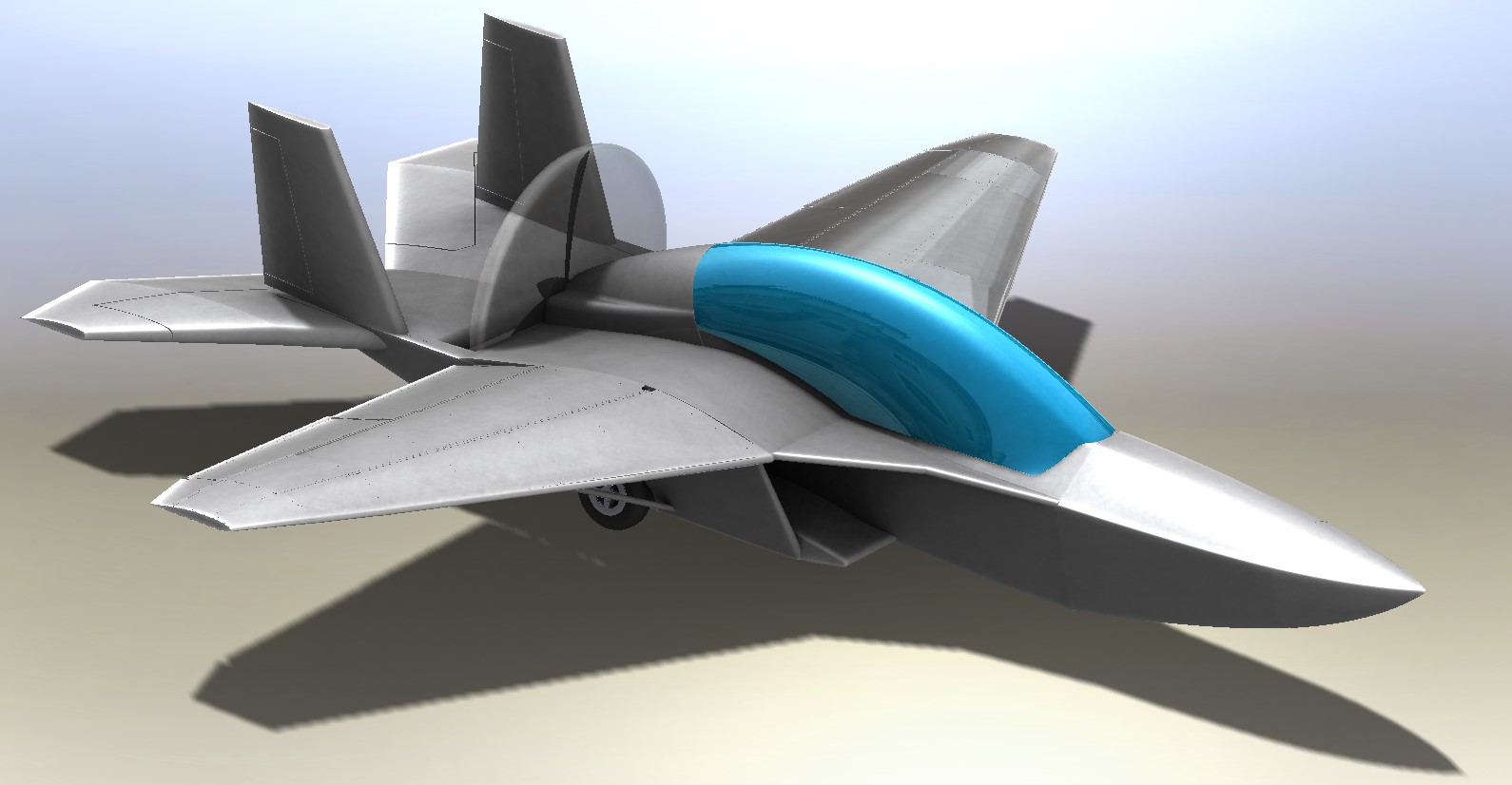

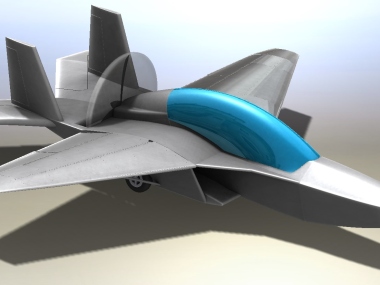

Do you Dream of Flying a Fighter? Or better yes, owning one? The Archon is a modern and stealth dream come true.
Features:
- All Aluminum
- Quick Build Time-Major Assemblies Completed for you.

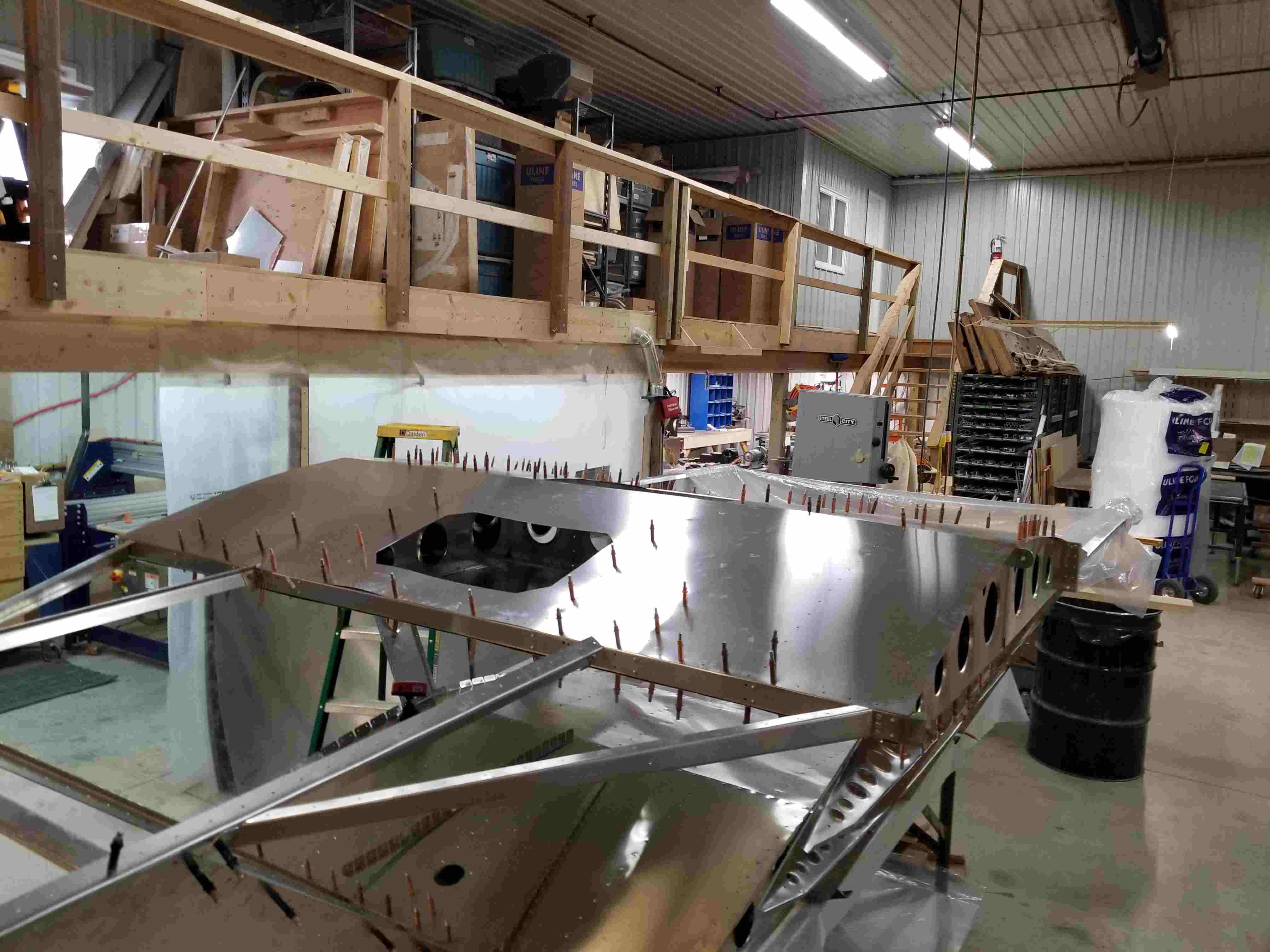

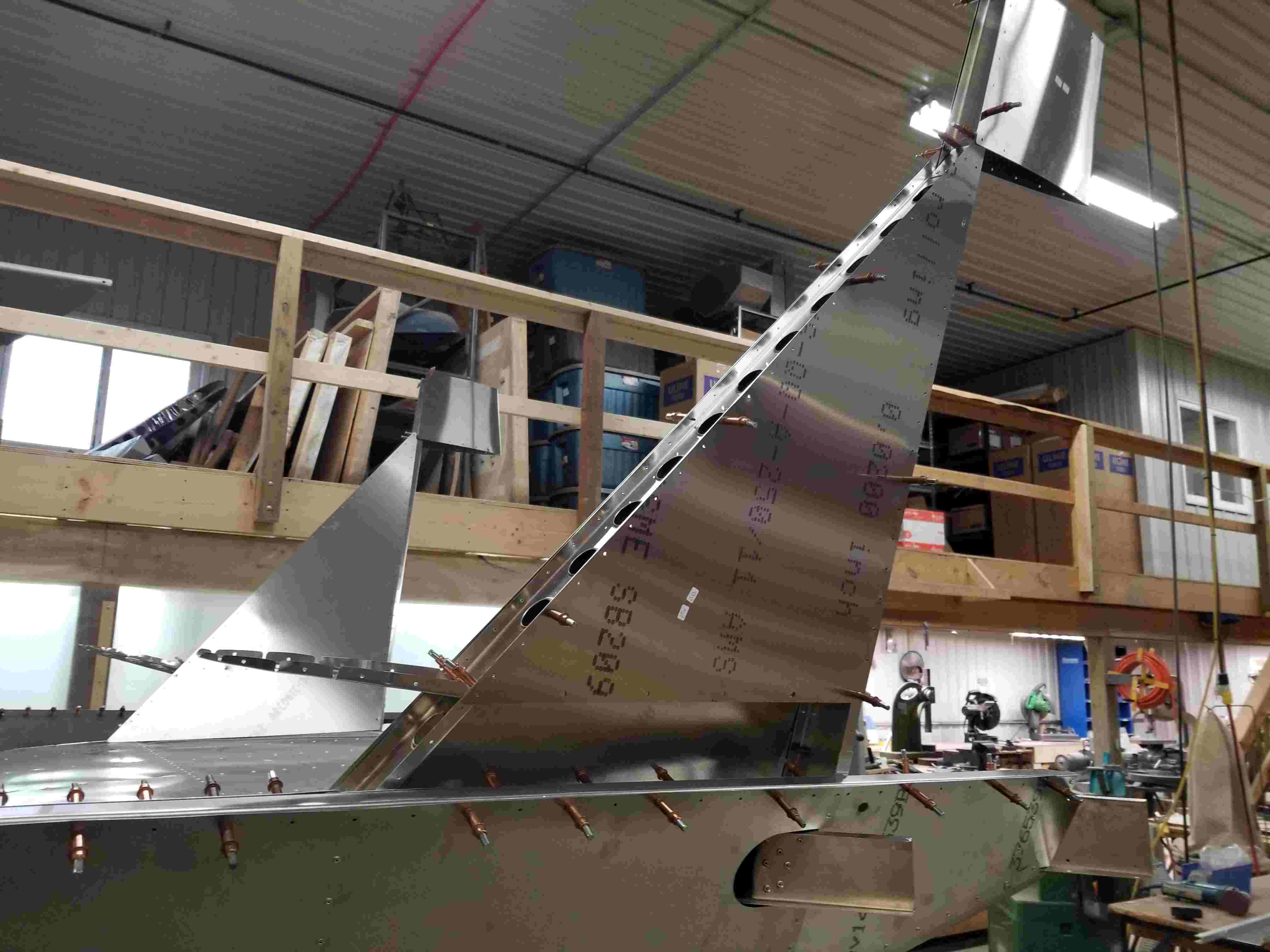

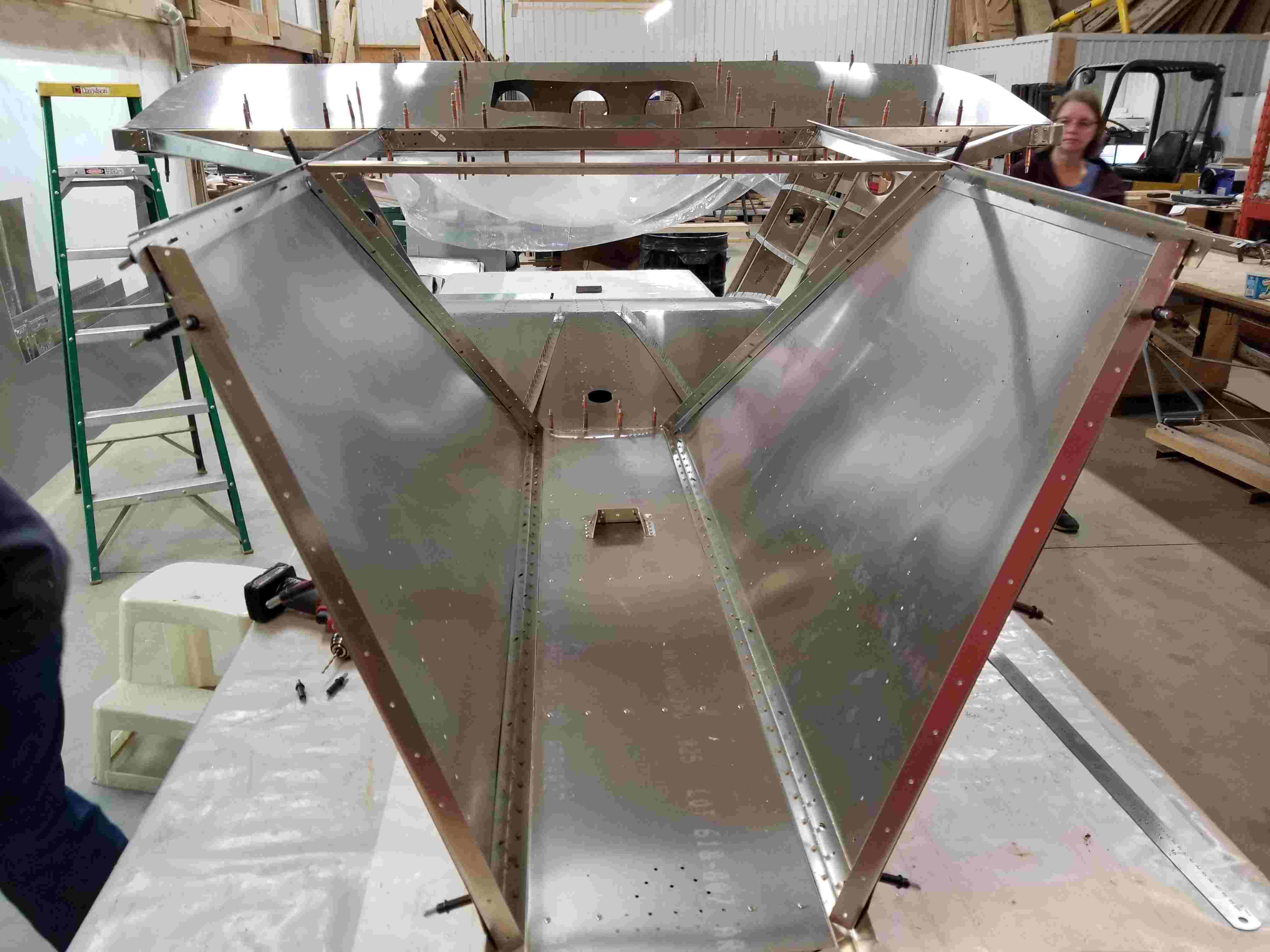

- Match-hole Construction using Pulled Rivets.
- No Welding
- All Bucked Rivets completed for you.
Build Kit:
- Complete-We provide the complete Fast-Build Kit
- Detailed Assembly Instructions-Included

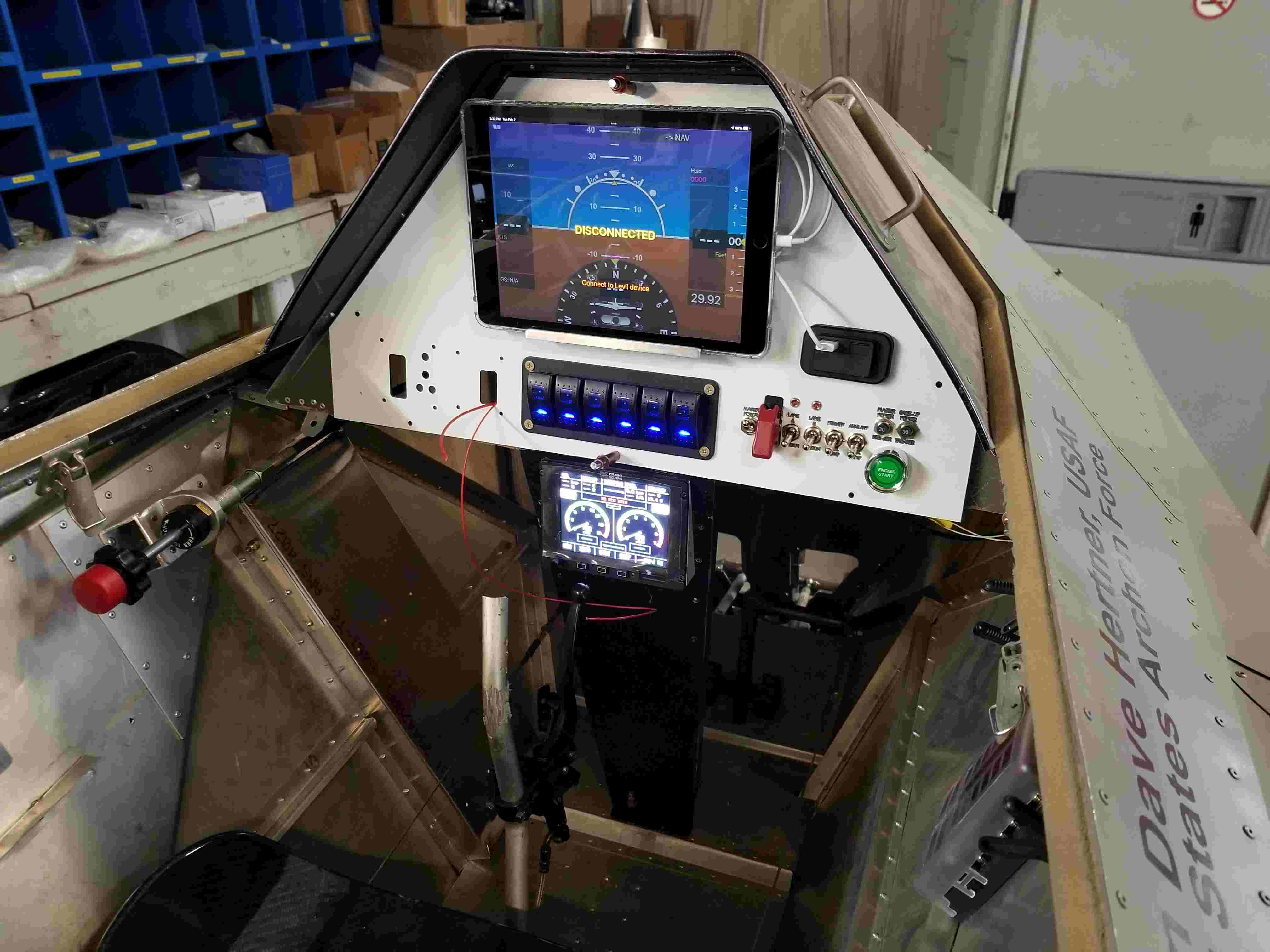

- Excluded-engine, avionics, and paint.
- Recommended Engine-Rotax 912iS.
Flight Performance:
| Stall Speed-VSO | 40 mph |
| Maximum Flap Speed-VFE | 80 mph |
| Maneuvering Speed-VMO | 90 mph |
| Cruise Speed | 110 mph |
| Max Normal Op-VNO | 112 mph |
| Never Exceed Speed-VNE | 155 mph |
| Takeoff Distance | 400 ft |
| Landing Distance | 650 ft |
| Cruise Range (912iS 1hr res) | 500 miles |
| Climb Rate | 1,000 fpm |
Specifications:
| Wingspan | 25’ |
| Fuselage Length | 26’ |
| Fuselage Height | 7’ |
| Number of Seats | 1 |
| Maximum Gross Weight | 1050 lb |
| Empty Weight | TBD-(Approx 550-600 lbs) |
| Useful Load | TBD-(450-500 lb) |
| Design Loads | +6G and -3G |
| Engines | Engine ZonSen C80, C100, or C115 |
| Engine HP | 80 to 141 |

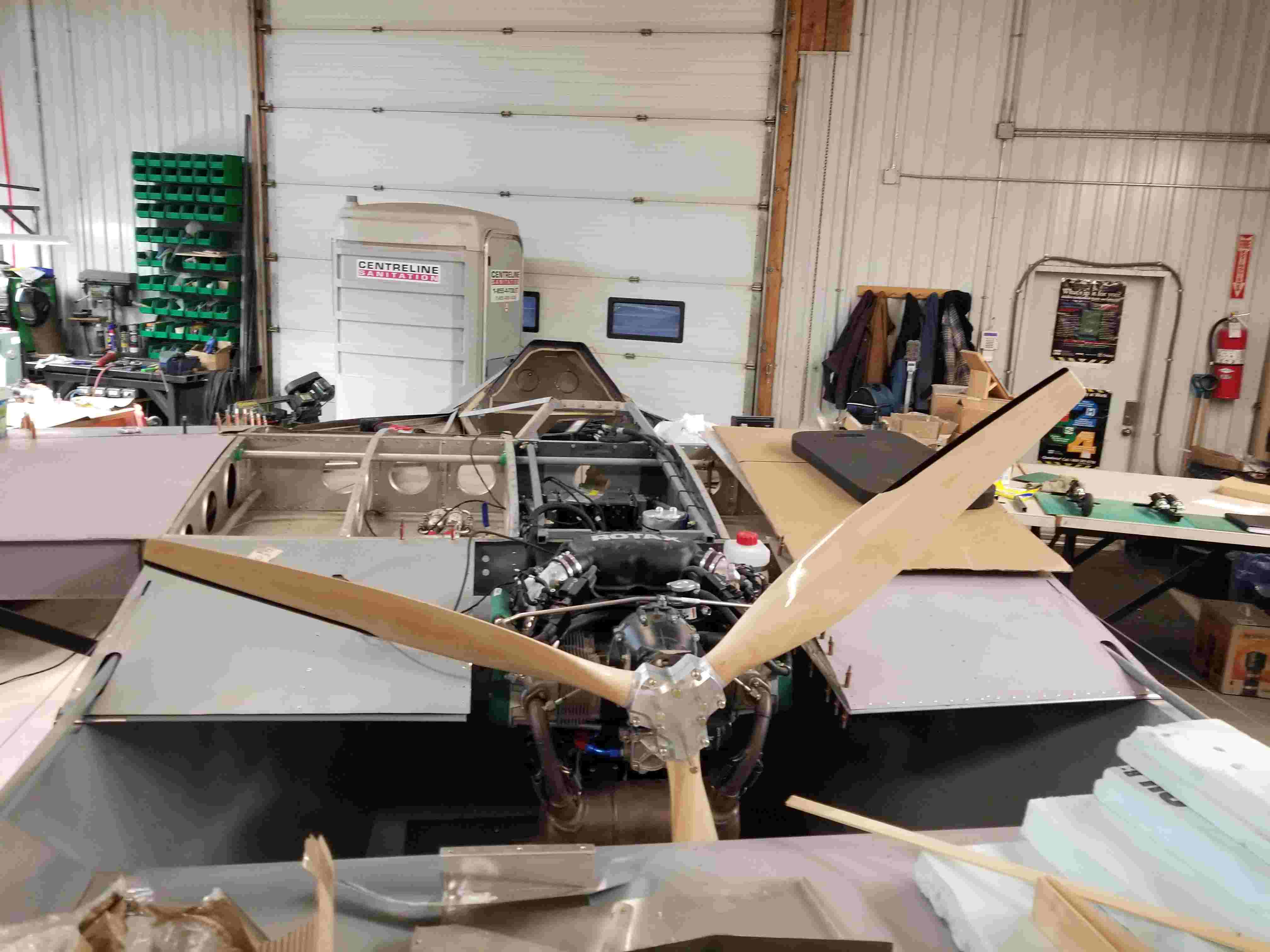

| Engine Configuration | Pusher |
| Wing Area | 133.04 sqft |
| Wing Loading | 7.89 lb/sqft |
| Fuel Capacity | 22 gallons |
| Power Loading | 13.2 lb/hp (@80hp) |
| Prop Diameter | 64” |
| Wing Removal Time | 30 Min per Wing |
