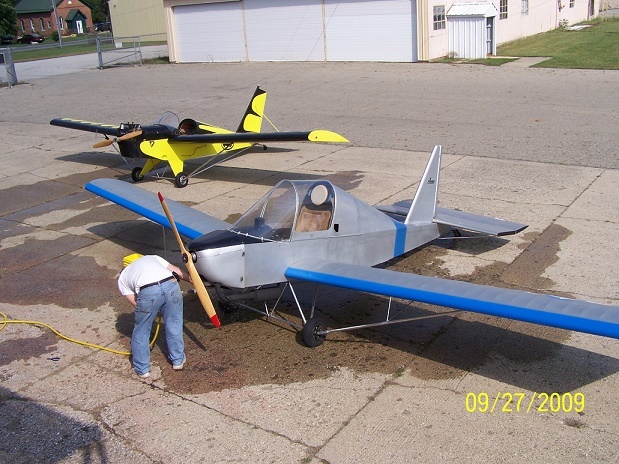

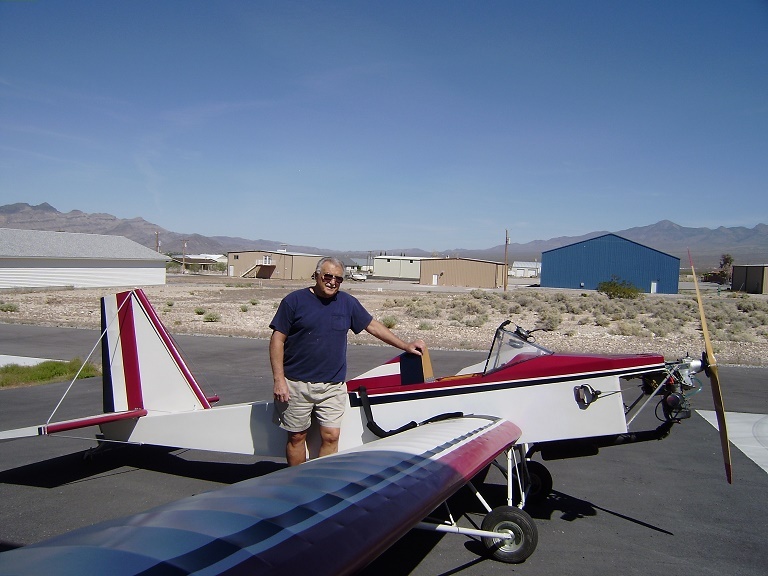

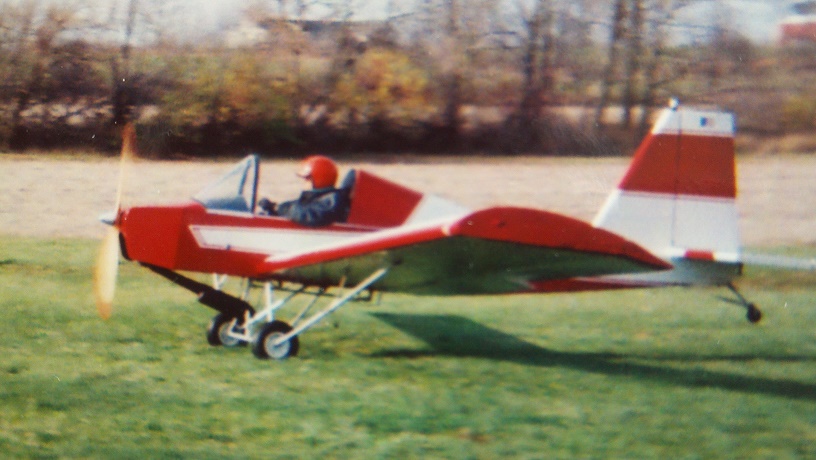

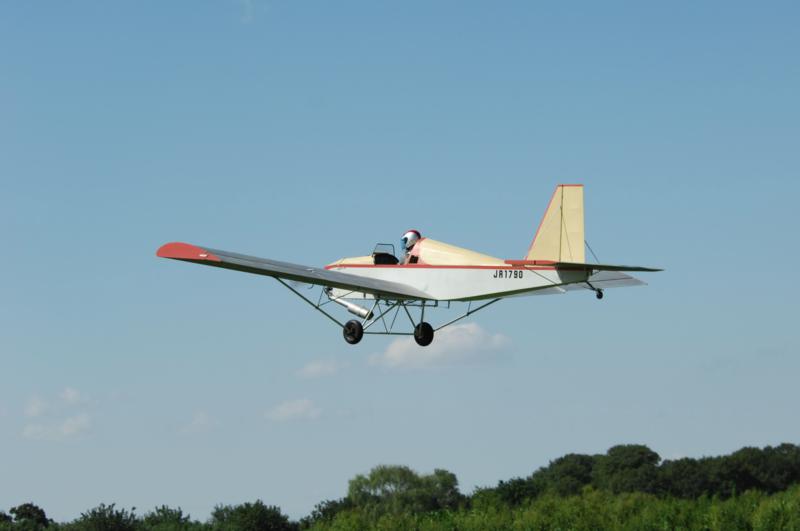

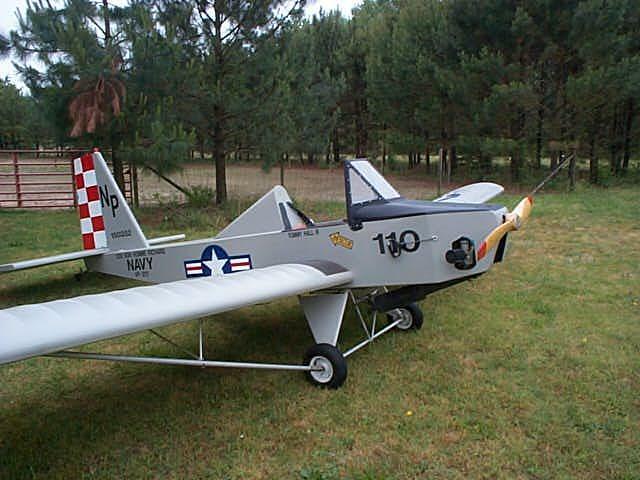

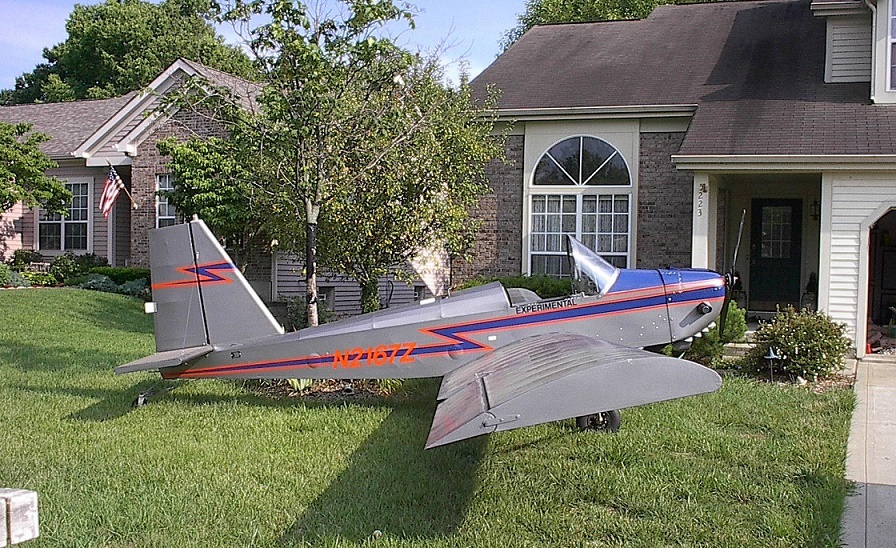

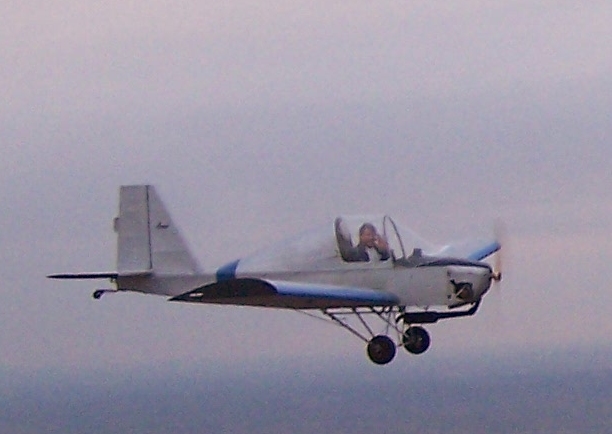

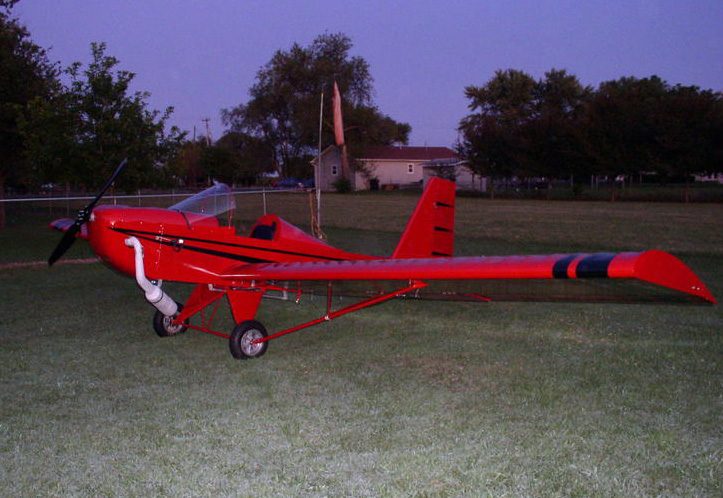

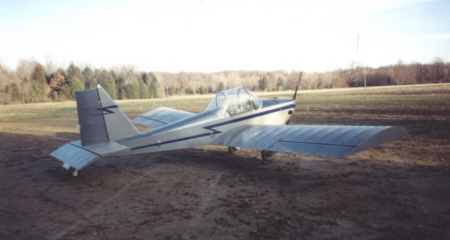

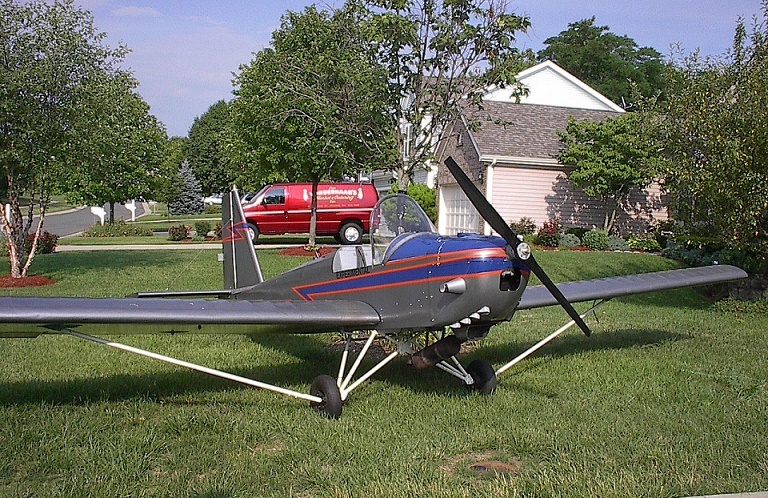

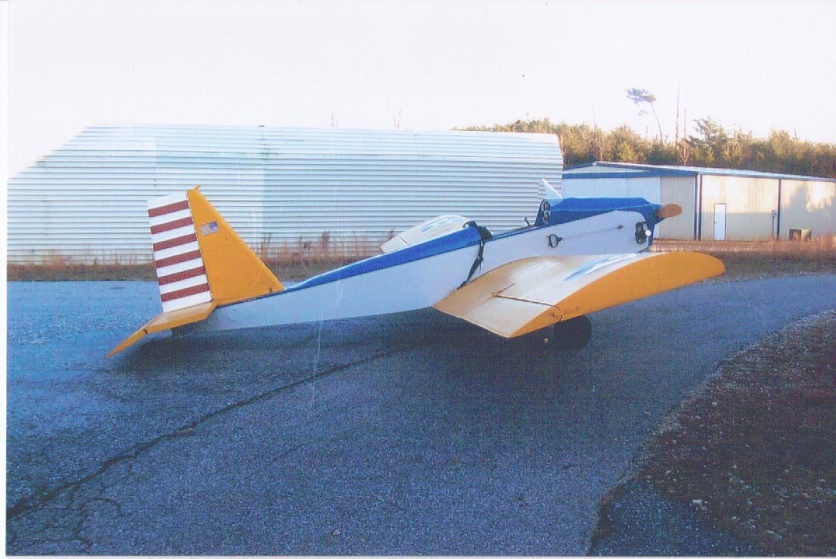

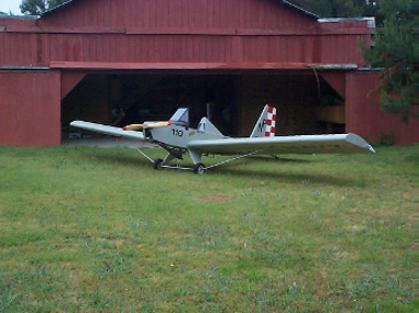

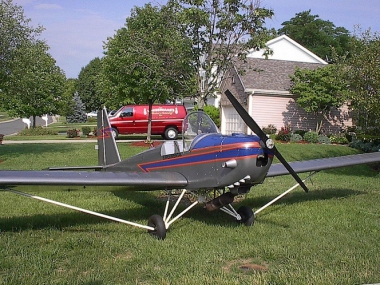

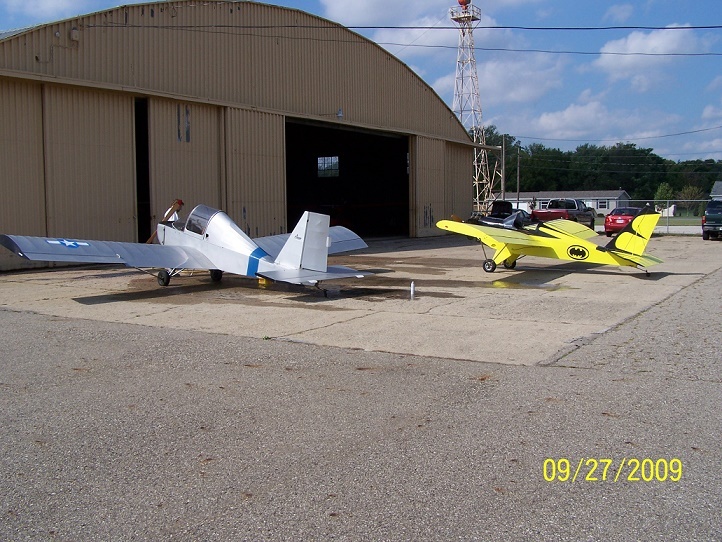

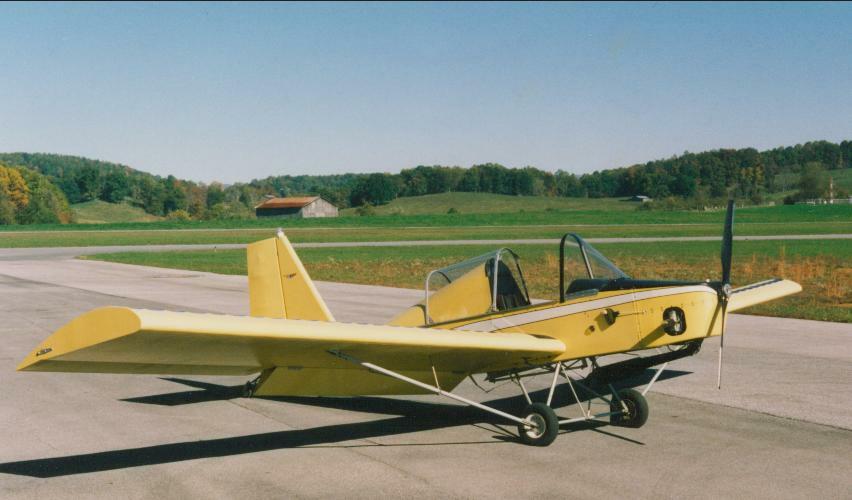

With its open cockpit and compact form, the FP-303 is wind-in-your-face flying that will take your breath away.
Features:
- All wood is cut to shape
- Metal parts are ready for installation
- 1/8” birch ply skin around cockpit
- Wings are easily removed to rest on the cantilevered horizontal stabilizer

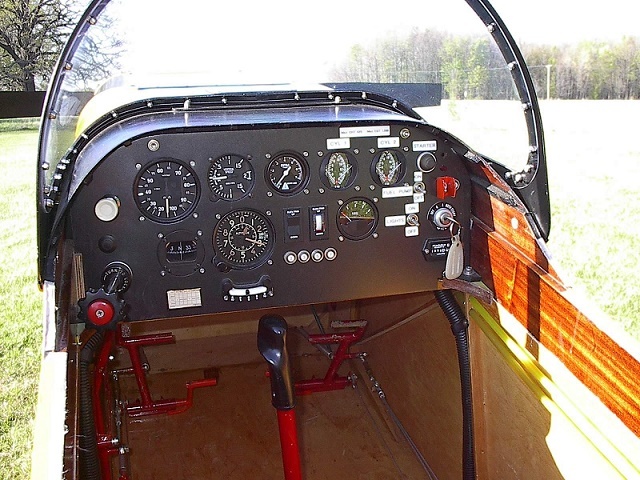

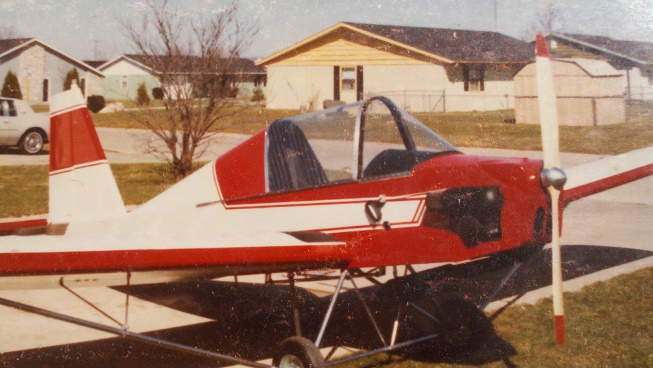

- Open cockpit is situated slightly forward of the wings leading edge
- Geodetic wood construction
Build Kit:
- Complete Airframe Kit:- Standard and Quick-Build
- Partial Airframe Kits:- Wing, Fuselage and Hardware Kits
- Plans and Instructions Included
- Excluded:- Engine, Engine Mount, Instruments, Upholstery, Restraints and Paint
Flight Performance:
| Stall Speed -VSO | 25 mph |
| Cruise Speed | 45-60 mph |
| Top Level Speed | 60 mph |
| Maximum Speed – VNE | 70 mph |
| Climb Rate | 700-800 fpm |
| Glide Ratio | 9:1 |
| Takeoff Run | 125 ft |
| Landing Roll | 125 ft |
Specifications:
| Cockpit Width | 24 in |
| Construction Time | Approx. 500 hrs |
| Design Loads | +4.6G and -2.3G |
| Empty Weight | 235 lbs |
| Engine | Polini THOR 303 DS |
| Engine HP | 38 hp |
| Field Assembly | Approx 30 min |
| Fuel Capacity | 5 gal |
| Gross Weight | 450 lbs |
| Height | 5 ft 2 in |
| Length | 16 ft 6 in |
| Power Loading | 11.8 lb/hp |
| Prop Diameter/Pitch | 60”/28” |
| Range | 125-150 Miles |
| Reduction Ratio | 2.58-to-1 |
| Useful Load | 215 lbs |
| Wing Area | 111 sq ft |
| Wing Loading | 4.05 lb/sf |
| Wingspan | 27 ft 8 in |
