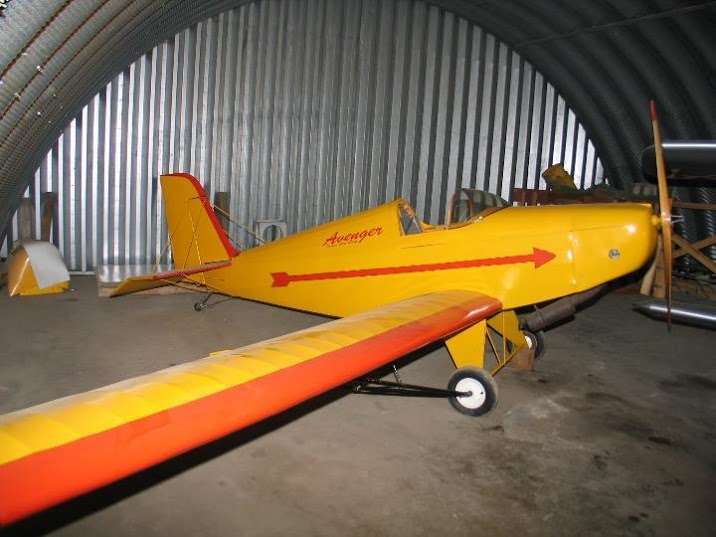

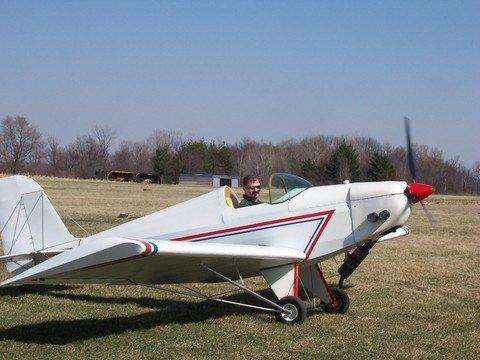

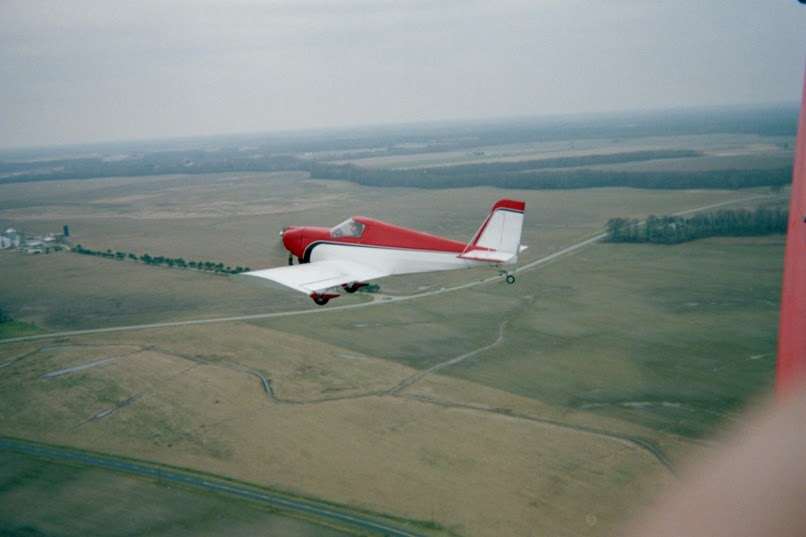

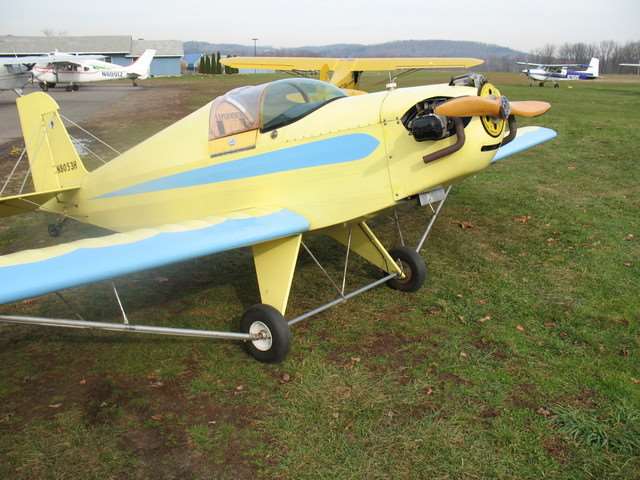

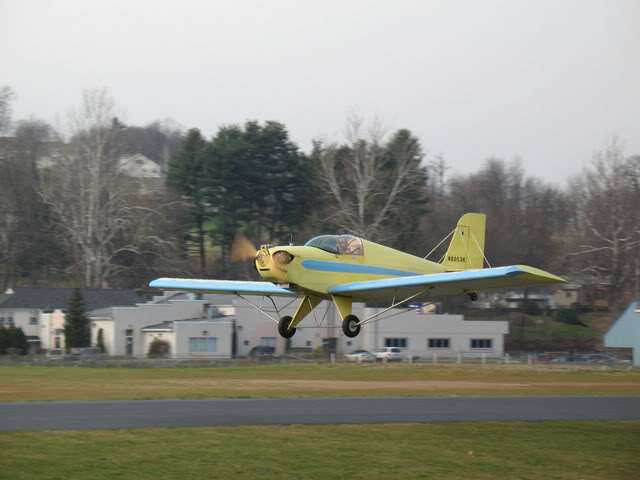

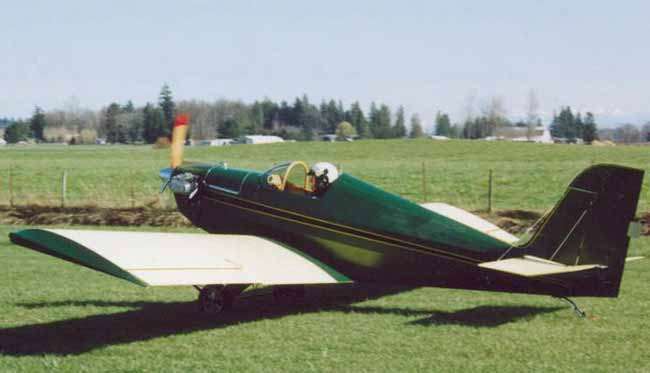

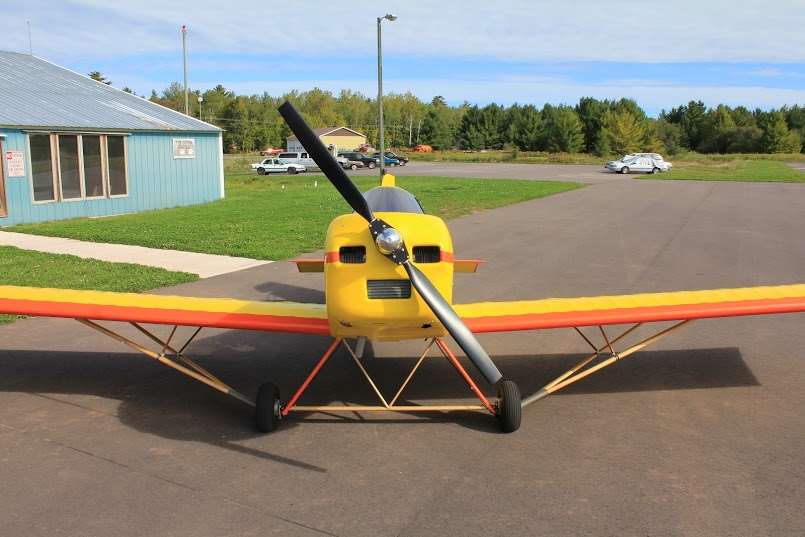

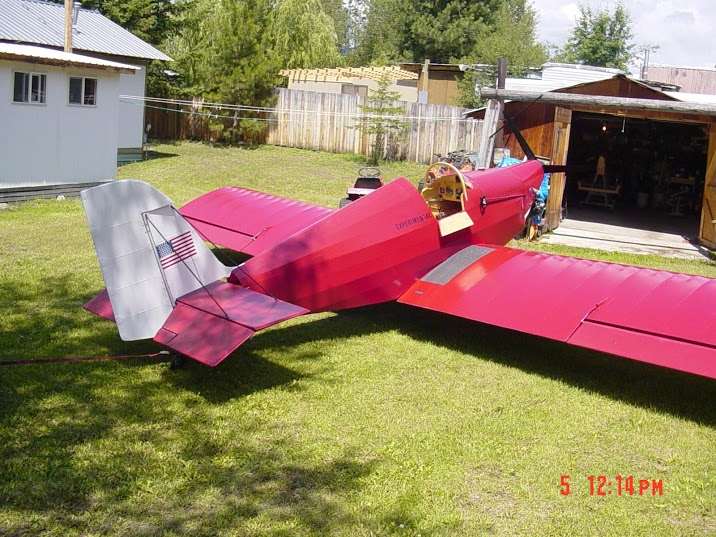

We are proud to offer you the Avenger. Another ultralight plane that comes with numbered parts. It’s a life size model airplane kit!
Features:
- All wood is cut to shape
- Metal parts are ready for installation
- Warner Truss Frame
- 1/8” birch ply skin
- Pre-molded fiber-glass cowling
- Moulded windshield w/canopy
Build Kit
- Complete Airframe Kit :- Standard and Quick-Build
- Partial Airframe Kits :- Wing, Fuselage and Hardware Kits
- Plans and Instructions Included
- Excluded :- Engine, Engine Mount, Instruments, Upholstery, Restraints and Paint
Flight Performance:
| Climb Rate | 800-900 FPM |
| Cruise Speed | 80-90 mph |
| Landing Roll | 250 ft |
| Maximum Speed-VNE | 100 mph |
| Stall Speed | 30-32 mph |
| Takeoff Run | 200 ft |
| Top Level Speed | 80-90 mph |
Specifications
| Cockpit Width | 23.75” |
| Construction Time | 300 hours |
| Cord | 54” |
| Design Loads | +4 and -2.5 |
| Empty Weight | 350 lbs |
| Engine HP Range | 45-75hp |
| Fuel Capacity | 7.0 Gal |
| Gross Weight | 650 lbs |
| Headroom | 40” w/canopy |
| Length | 16’ 3” |
| Max Pilot Height | 6’ 4” |
| Max Pilot Weight | 270 lbs |
| Seat(s) | 1 |
| Tail Span | 82.5” |
| Wing Area | 116 sqft |
| Wing Loading | 5.6 lb/sqft |
| Wingspan | 27’ |
