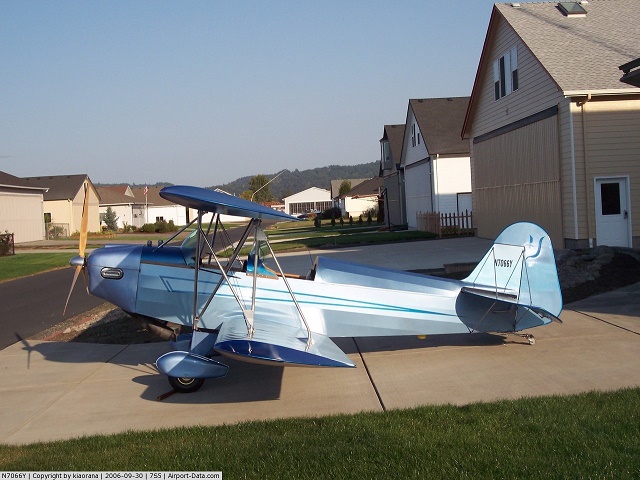

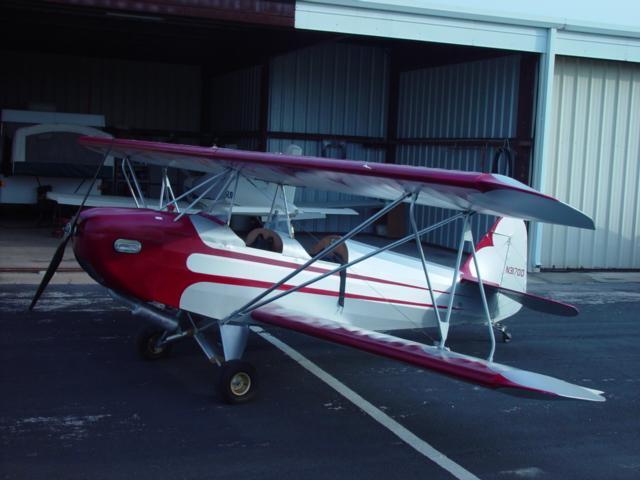

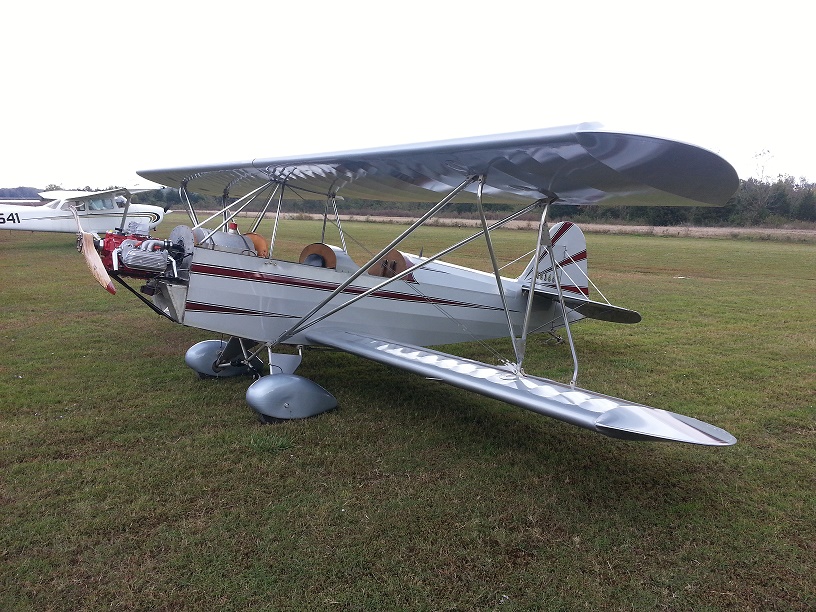

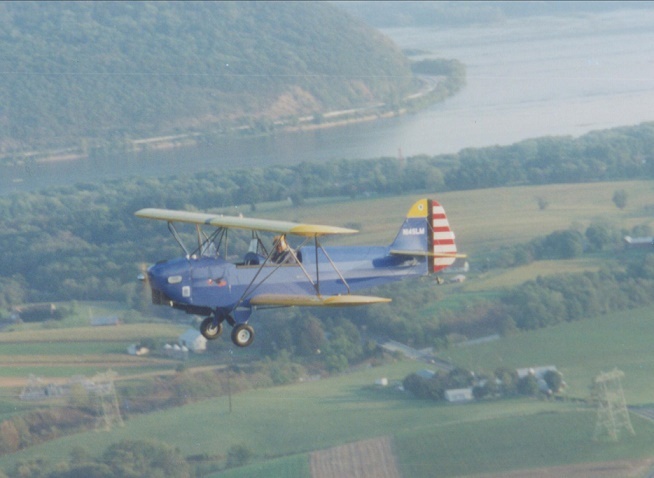

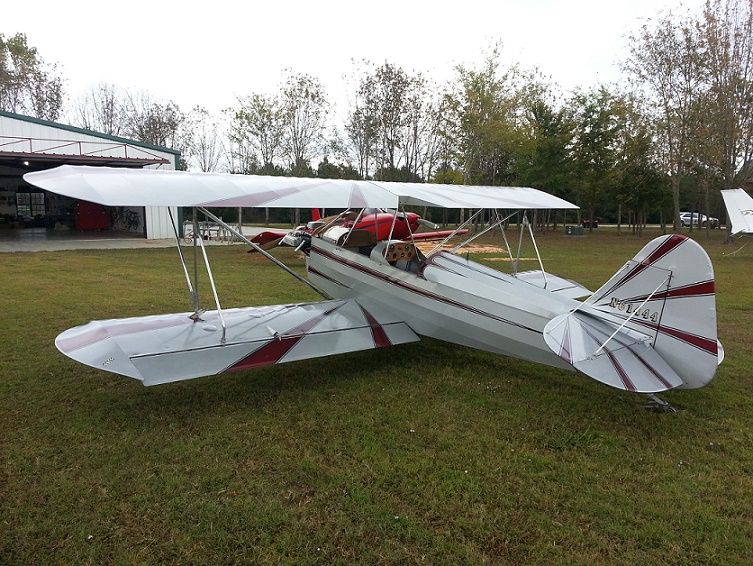

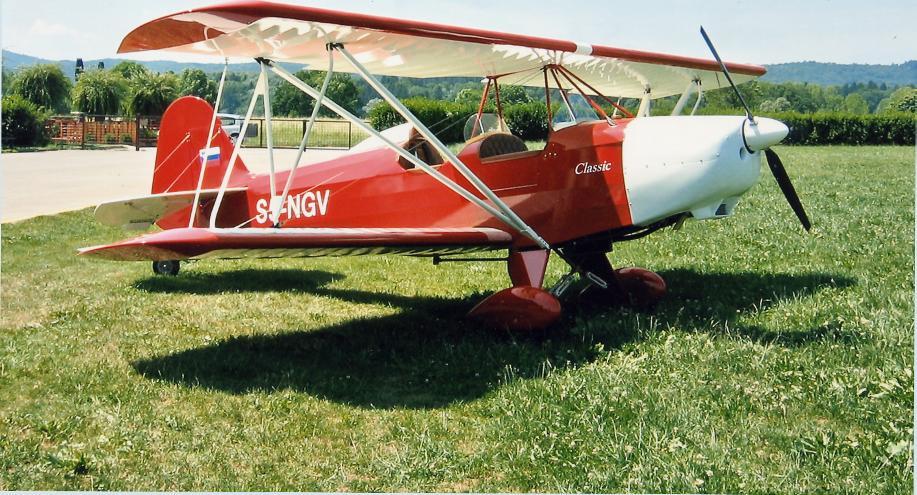

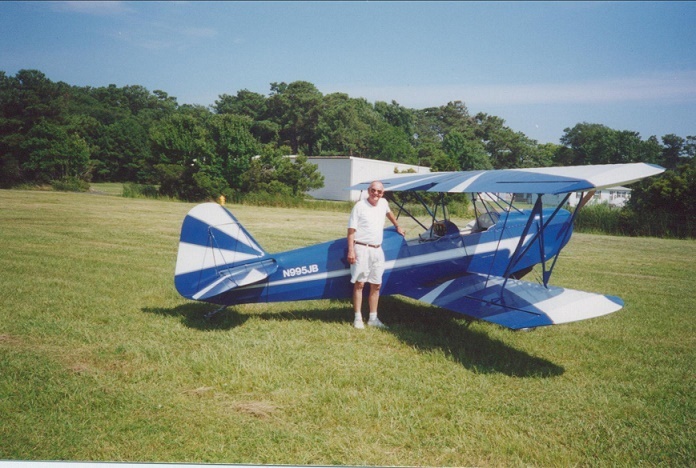

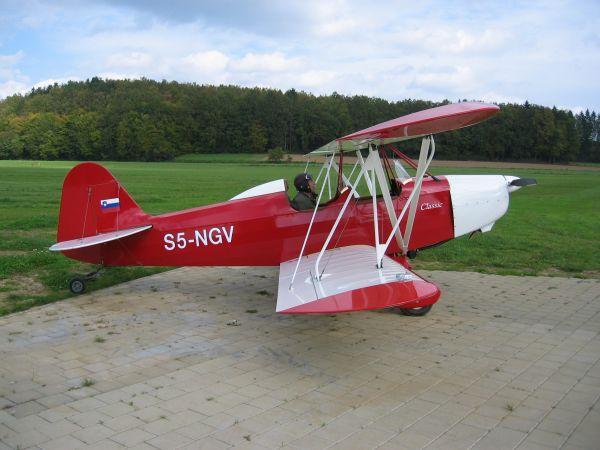

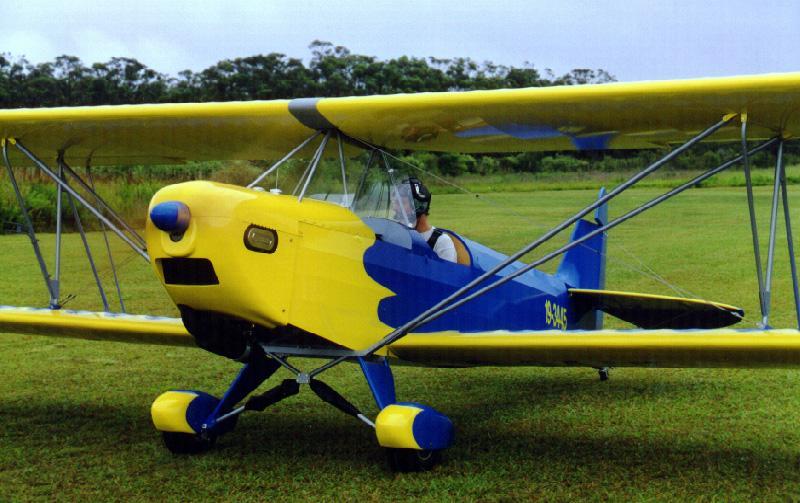

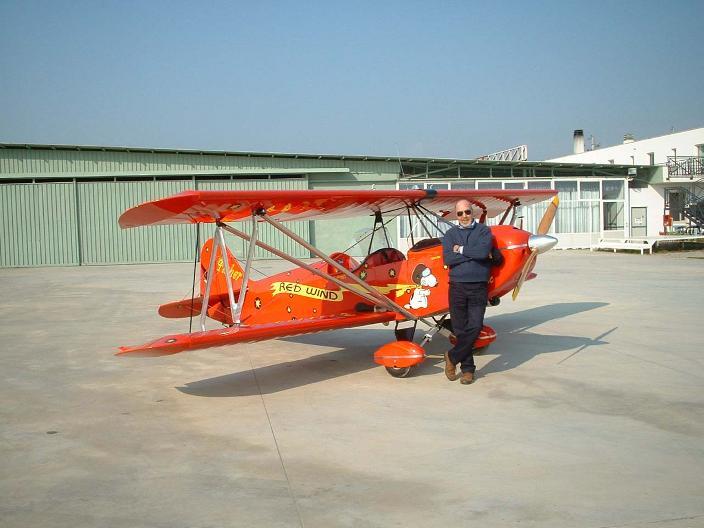

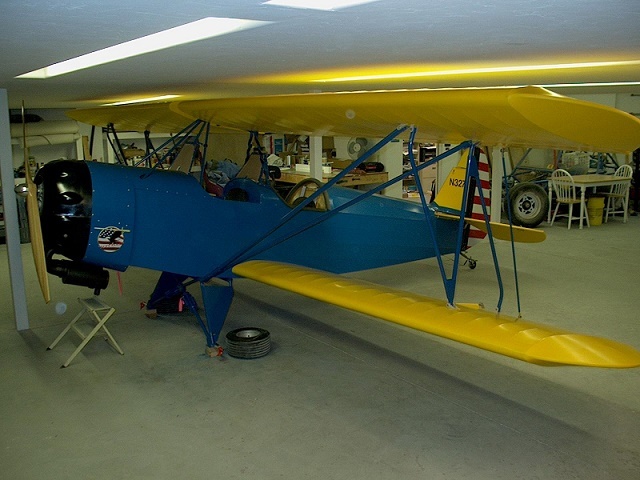

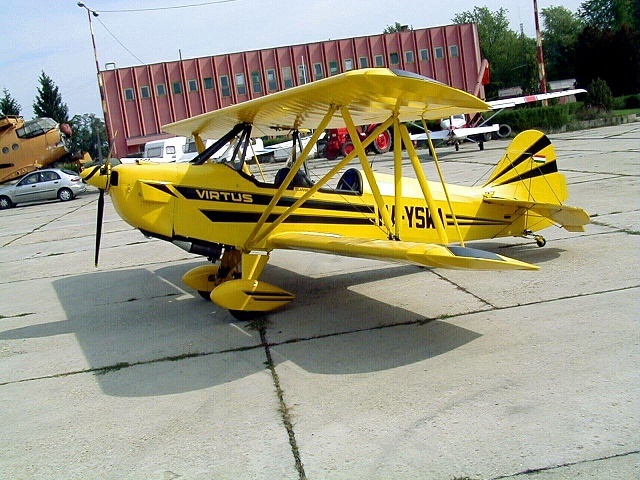

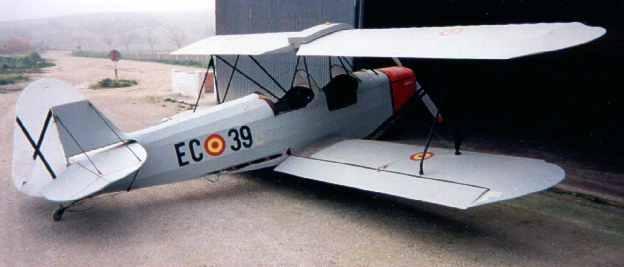

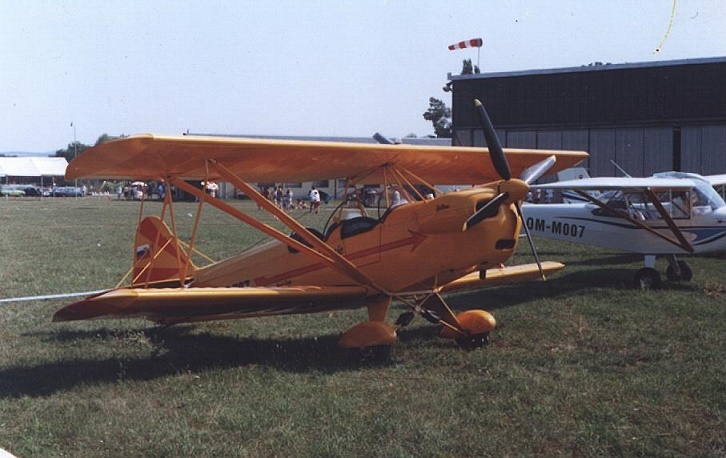

This Classic beauty will whisk you away to a romantic airborne adventures.
Features:

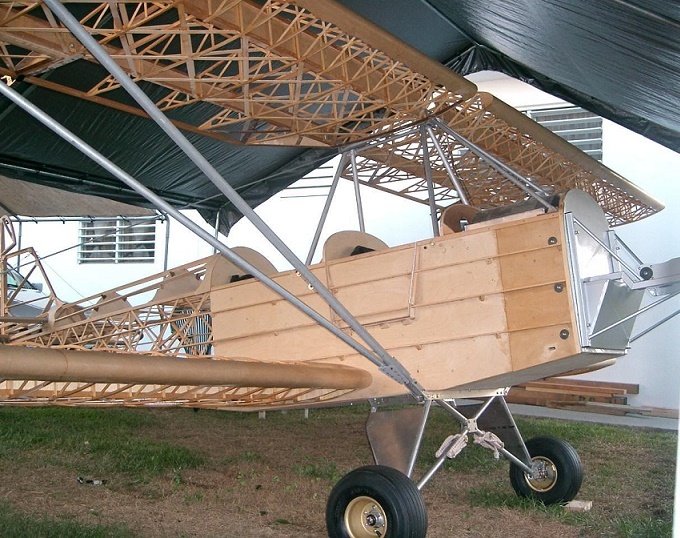

- All wood is cut to shape
- Metal parts are ready for installation
- Warner Truss Frame
- 1/8” birch ply skin

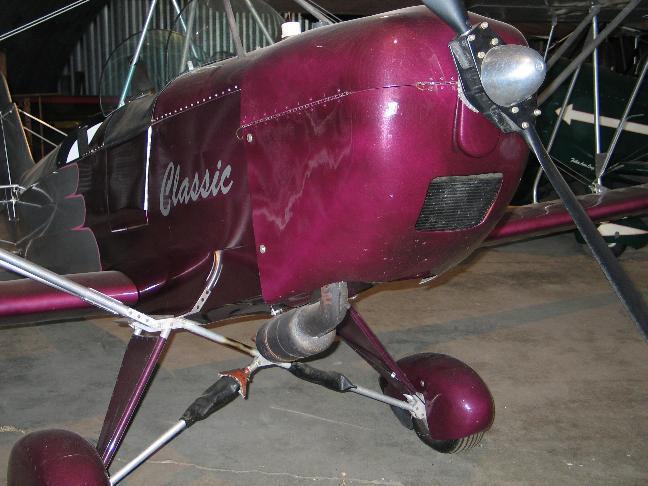

- Pre-molded fiber-glass cowling
- Moulded windshield w/canopy
Build Kit
- Complete Airframe Kit :- Standard and Quick-Build
- Partial Airframe Kits :- Wing, Fuselage and Hardware Kits
- Plans and Instructions Included
- Excluded :- Engine, Engine Mount, Instruments, Upholstery, Restraints and Paint
Flight Performance:
| Climb Rate | 600-700 FPM |
| Cruise Speed | 75-80 mph |
| Landing Roll | 200 ft |
| Max Normal Op – VNO | 90 mph |
| Maximum Speed – VNE | 100 mph |
| Stall Speed- VSO | 38 mph |
| Takeoff Run | 200 ft |
Specifications:
| Cockpit Width | 23 in. |
| Design Loads | +4G and -2.5G |
| Empty Weight | 400 lbs |
| Engine | Engine ZonSon C80 |
| Engine HP | 65 hp |
| Fuel Capacity | 7.5 gal -13.5 gal w/ wing tanks |
| Fuselage Height | 5ft 11in |
| Fuselage Length | 17.5 ft |
| Gap Between Upper Wings | 38 in. |
| Maximum Gross Weight | 850 lbs |
| Seat(s) | 2-(pilot weight-2@ 200lb) |
| Tail Span | 7.0 ft |
| Wing Area | 154 sq. ft. |
| Wing Loading | 5.51 lb/sqft at gross weight |
| Wingspan | 22.0 ft |
