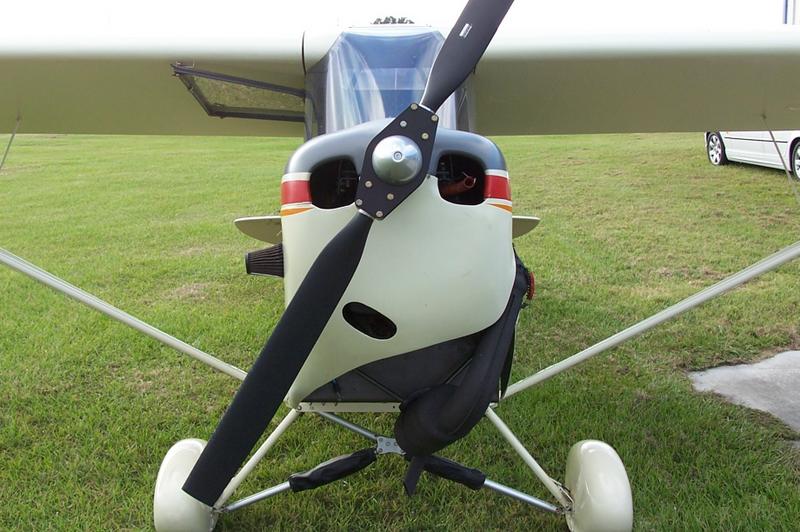

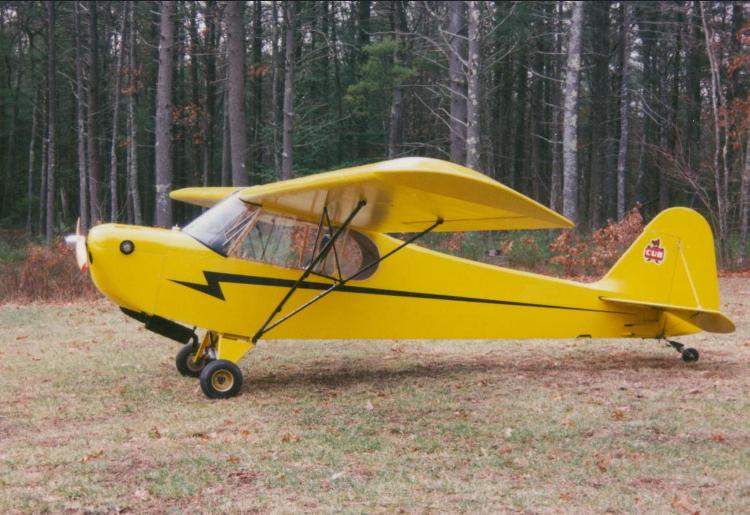

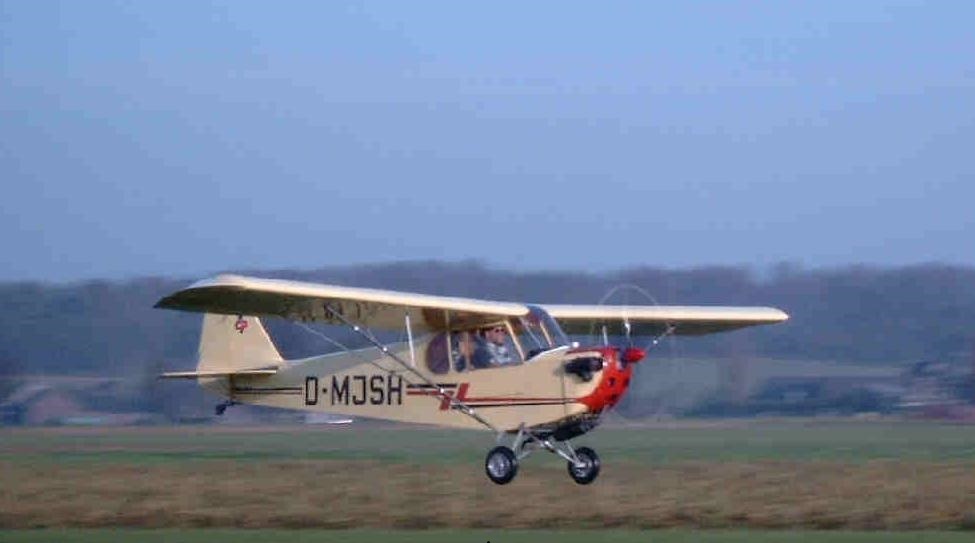

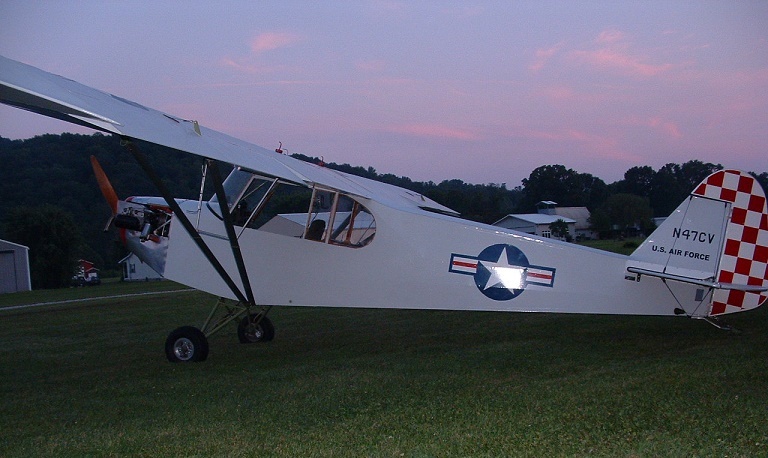

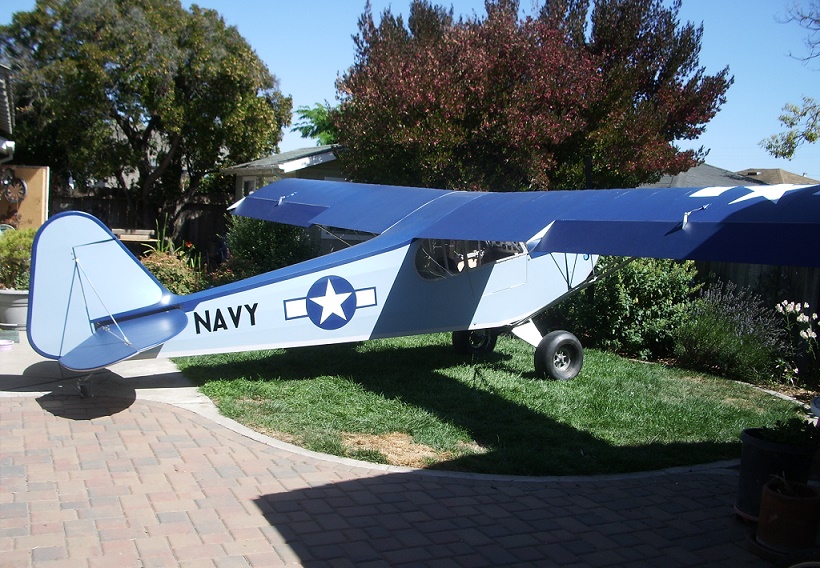

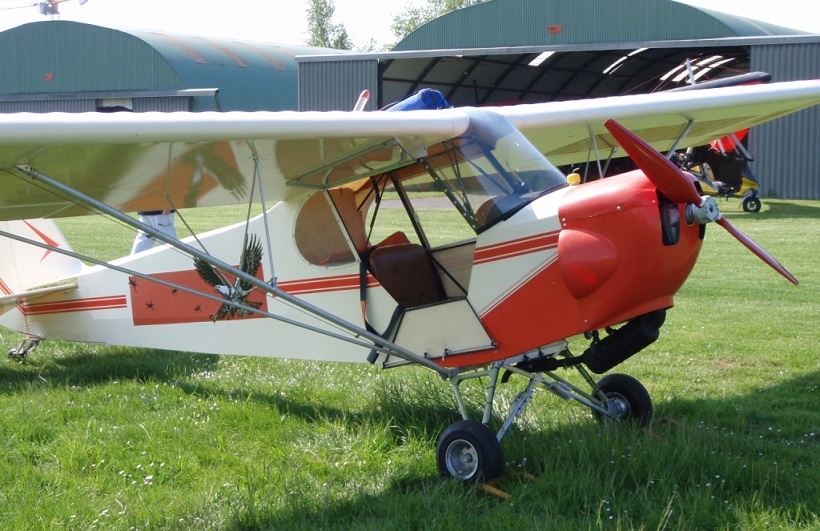

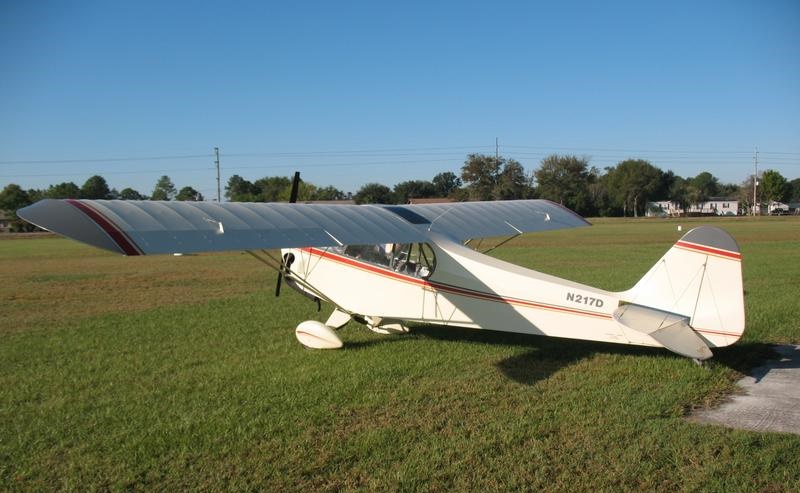

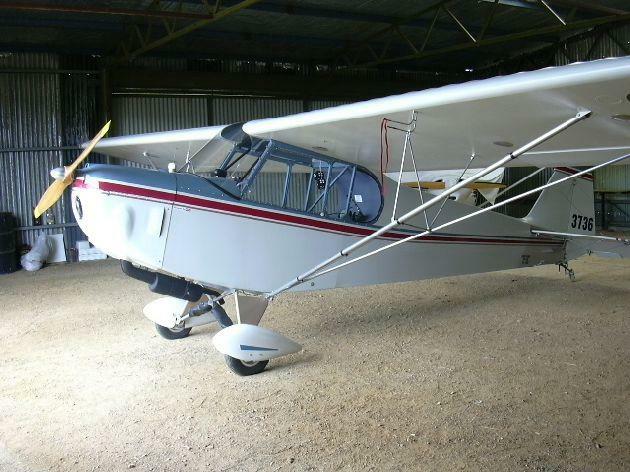

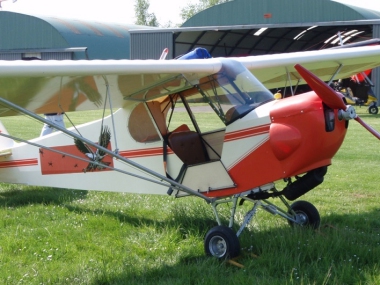

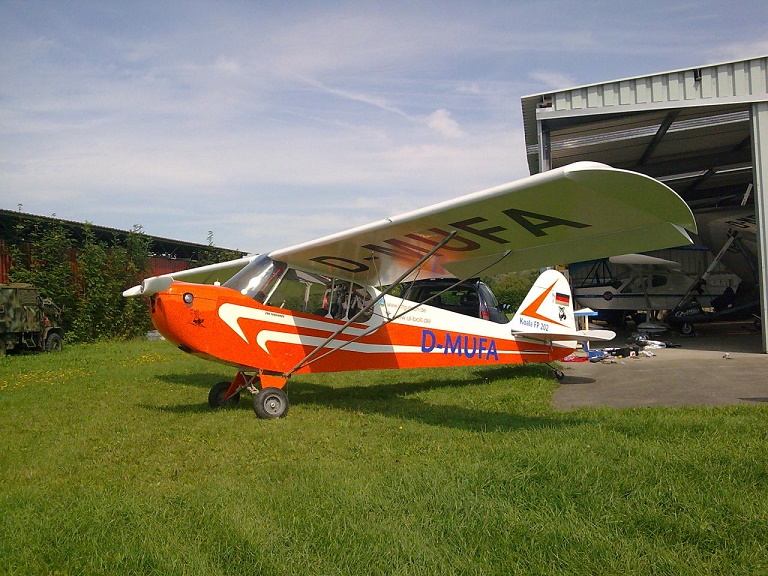

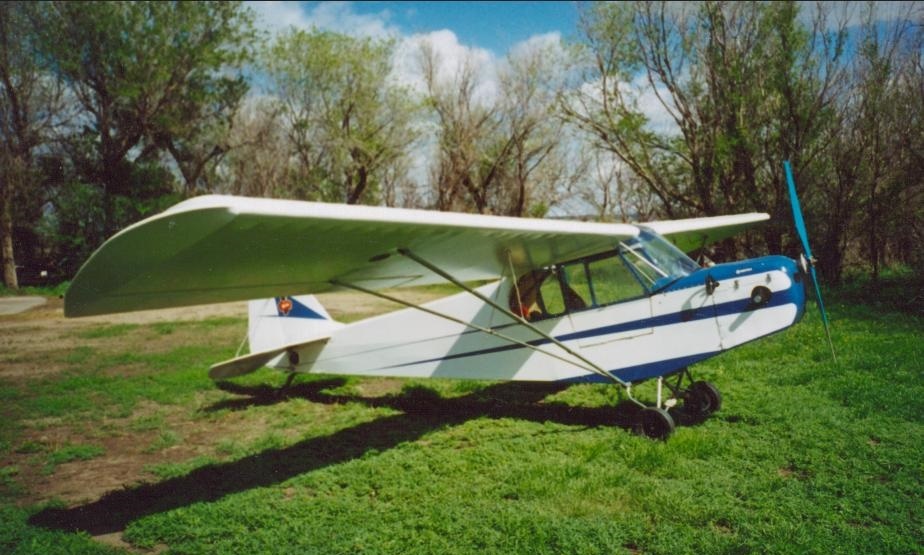

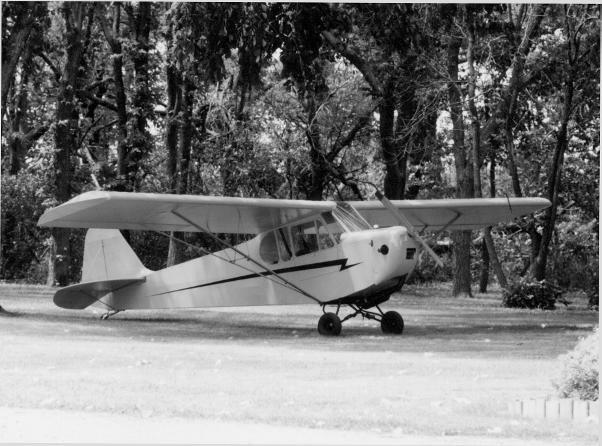

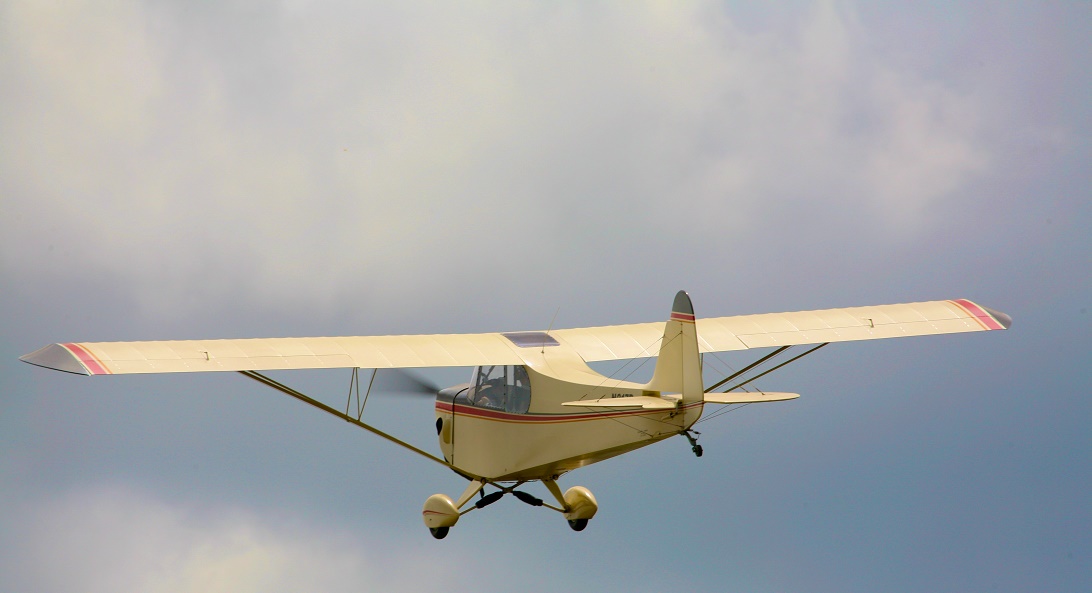

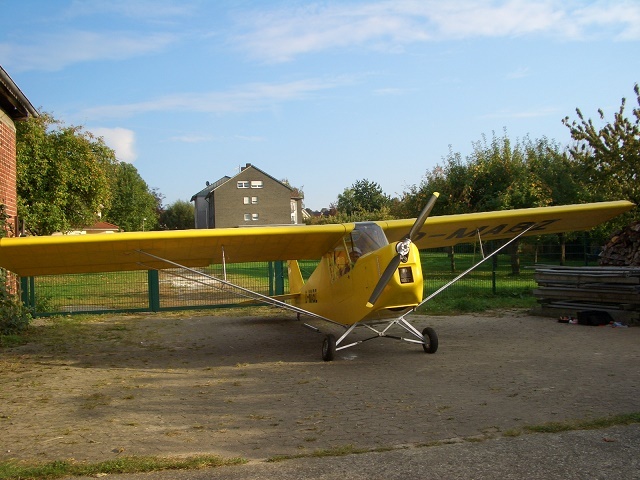

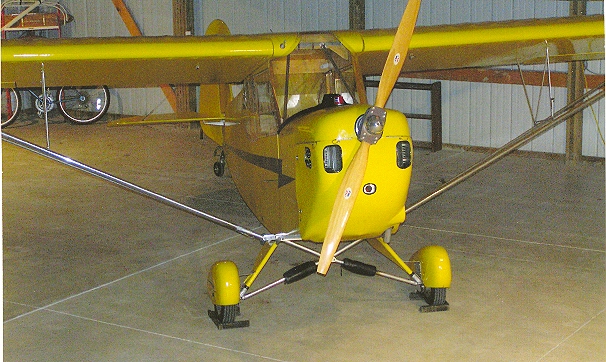

A strikingly faithful reproduction of one of the most popular aircraft ever built, the FP-202 Koala can make the dream of owning a classic flying machine a reality.
Features:
- All wood is cut to shape
- Metal parts are ready for installation
- 1/8” birch ply skin around cockpit
- Pre-molded fiber-glass cowling
- Lexan windshield
Build Kit:
- Complete Airframe Kit:- Standard and Quick-Build
- Partial Airframe Kits:- Wing, Fuselage and Hardware Kits
- Plans and Instructions Included
- Excluded:- Engine, Engine Mount, Instruments, Upholstery, Restraints and Paint
Flight Performance:
| Climb Rate | 900 fpm |
| Cruise Speed | 55 mph |
| Glide Rate | 9:1 |
| Landing Roll | 125’ |
| Maximum Speed-VNE | 75 mph |
| Stall Speed -VSO | 26 mph |
| Takeoff Run | 95’ |
| Top Level Speed | 60 mph |
Specifications:
| Cockpit Width | 23 in |
| Construction Time | Approx. 500 hrs |
| Design Loads | +4G and -2.5G |
| Empty Weight | 250 lbs |
| Engine | Polini THOR 303 DS |
| Engine HP | 38 hp |
| Field Assembly | Approx 30 min |
| Fuel Capacity | 5 gal (Optional 7 gal) |
| Gross Weight | 500 lbs |
| Height | 5’ 5” |
| Length | 17’ 9” |
| Power Loading | 13 lb/hp |
| Prop Diameter/Pitch | 60”/28” |
| Range | 125-150 Miles |
| Reduction Ratio | 2.58-to-1 |
| Useful Load | 250 lbs |
| Wing Area | 120 sq ft |
| Wing Loading | 4.17 p/sf |
| Wingspan | 29 ft 10 in |
