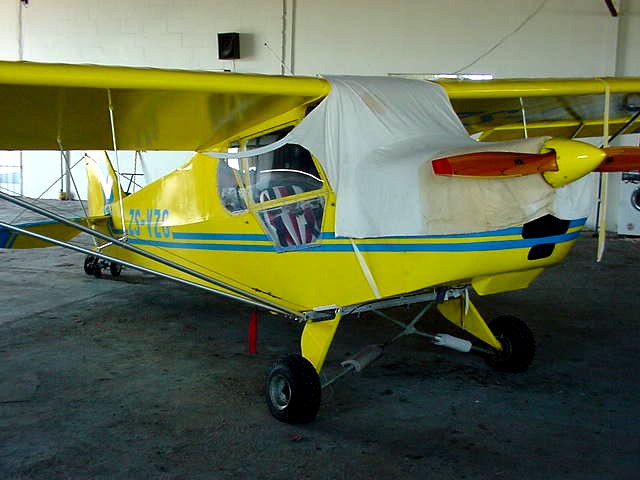

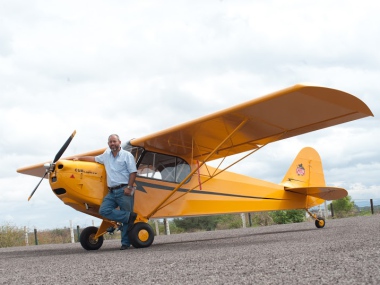

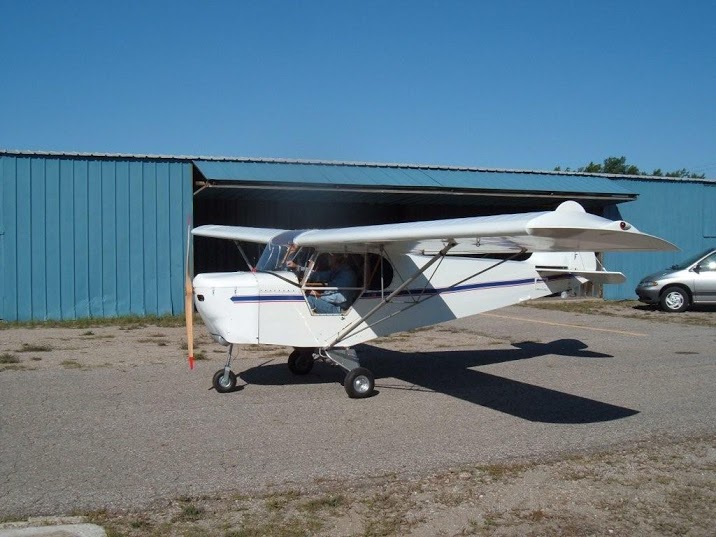

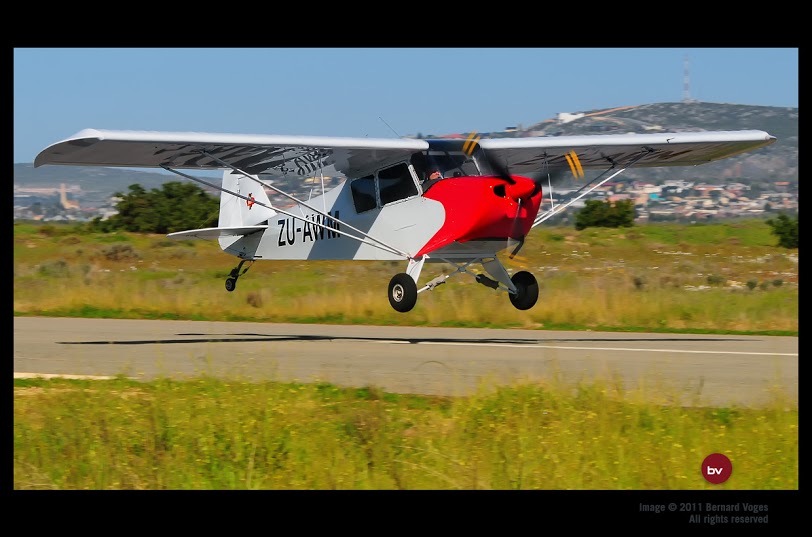

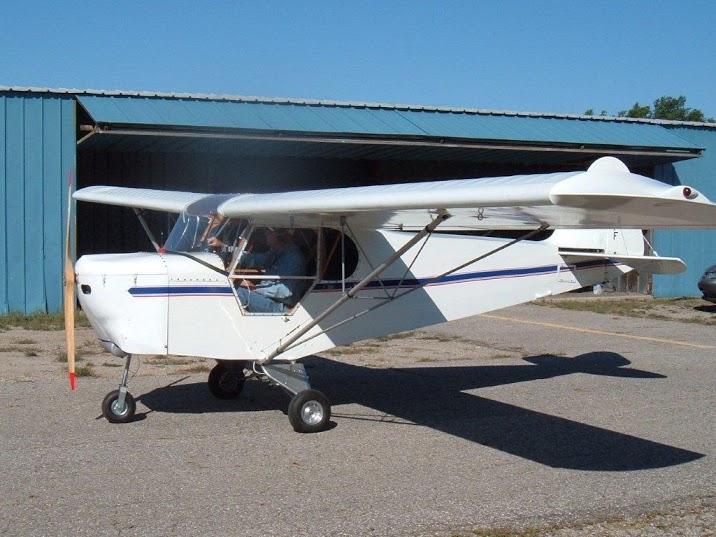

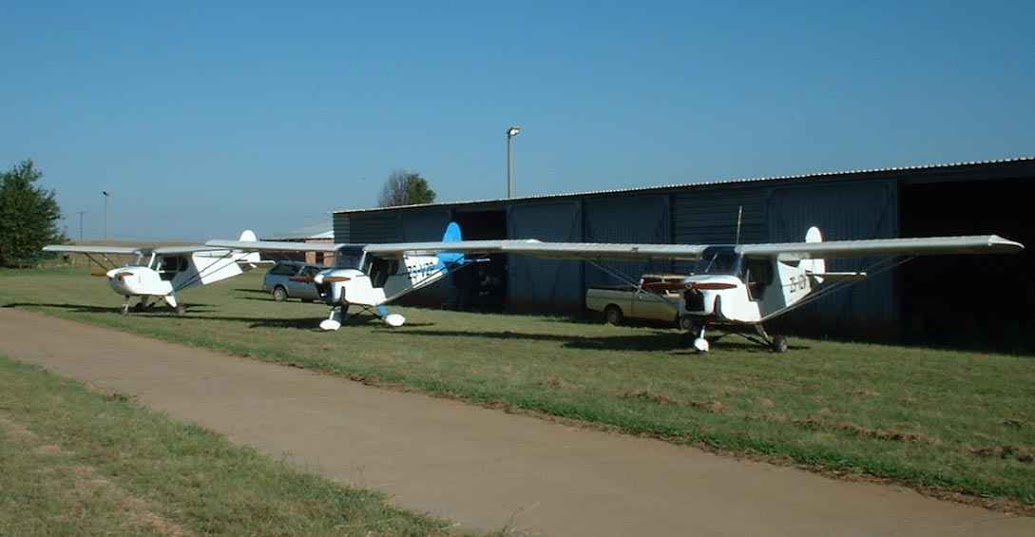

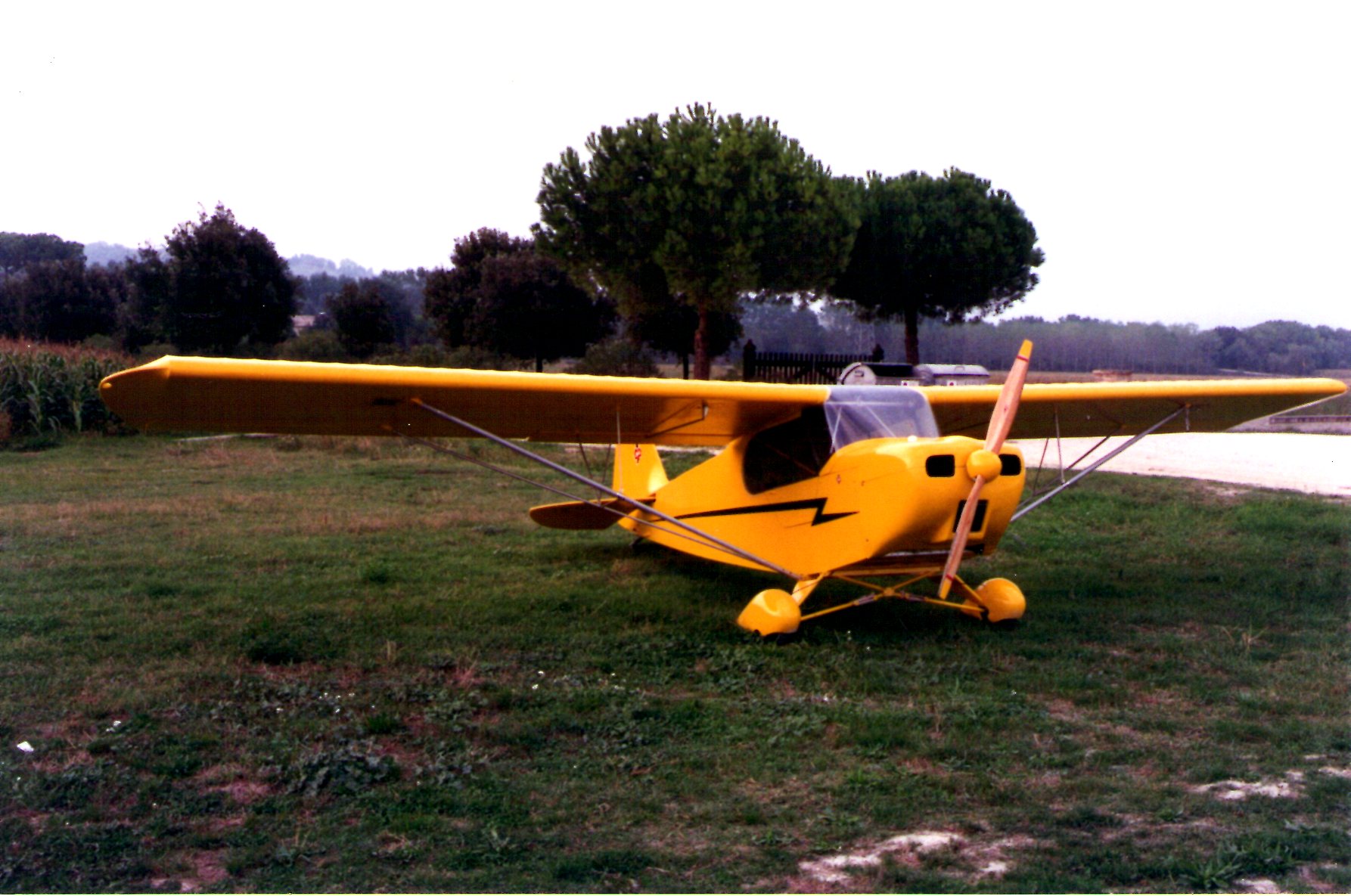

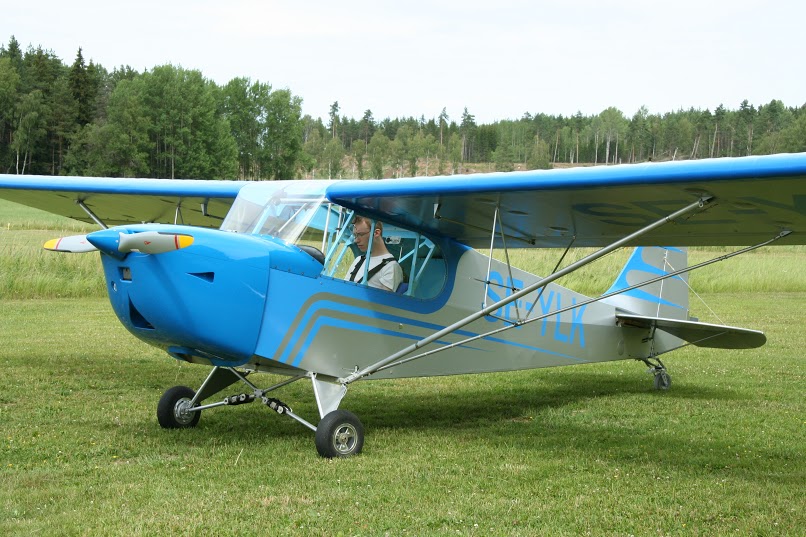

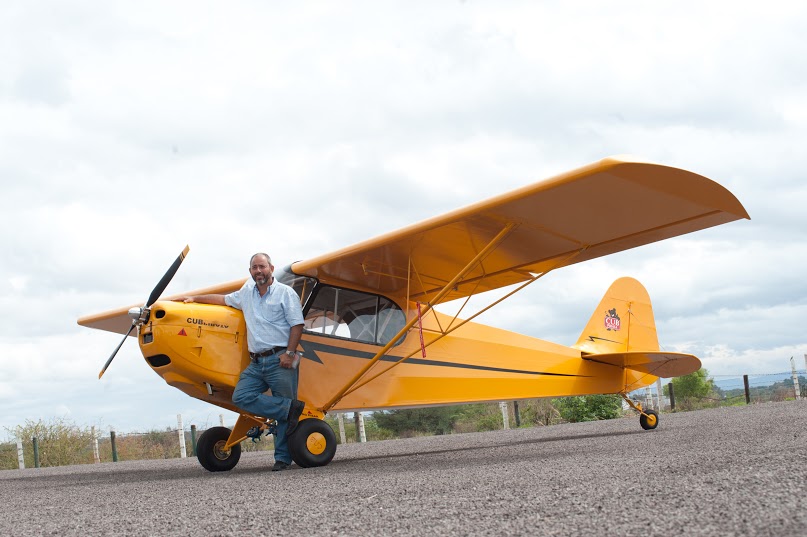

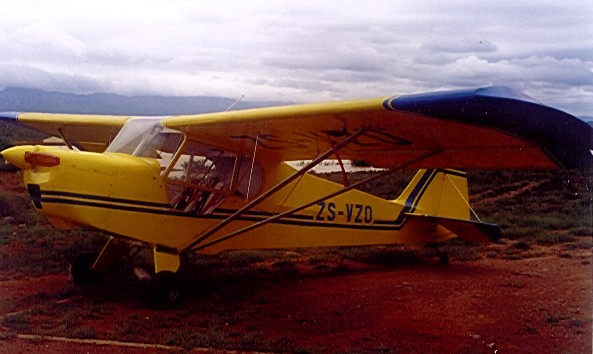

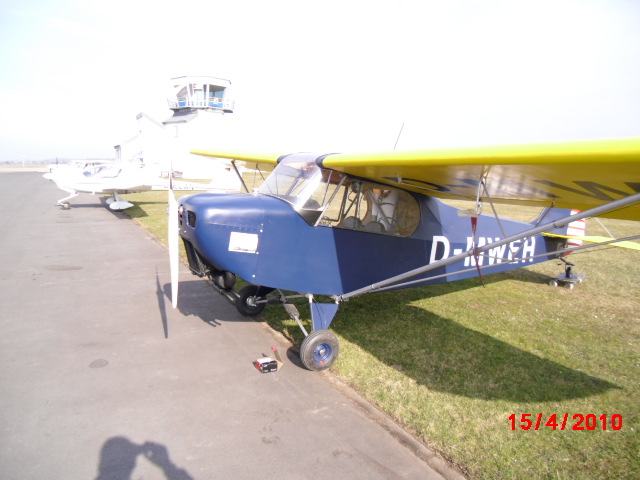

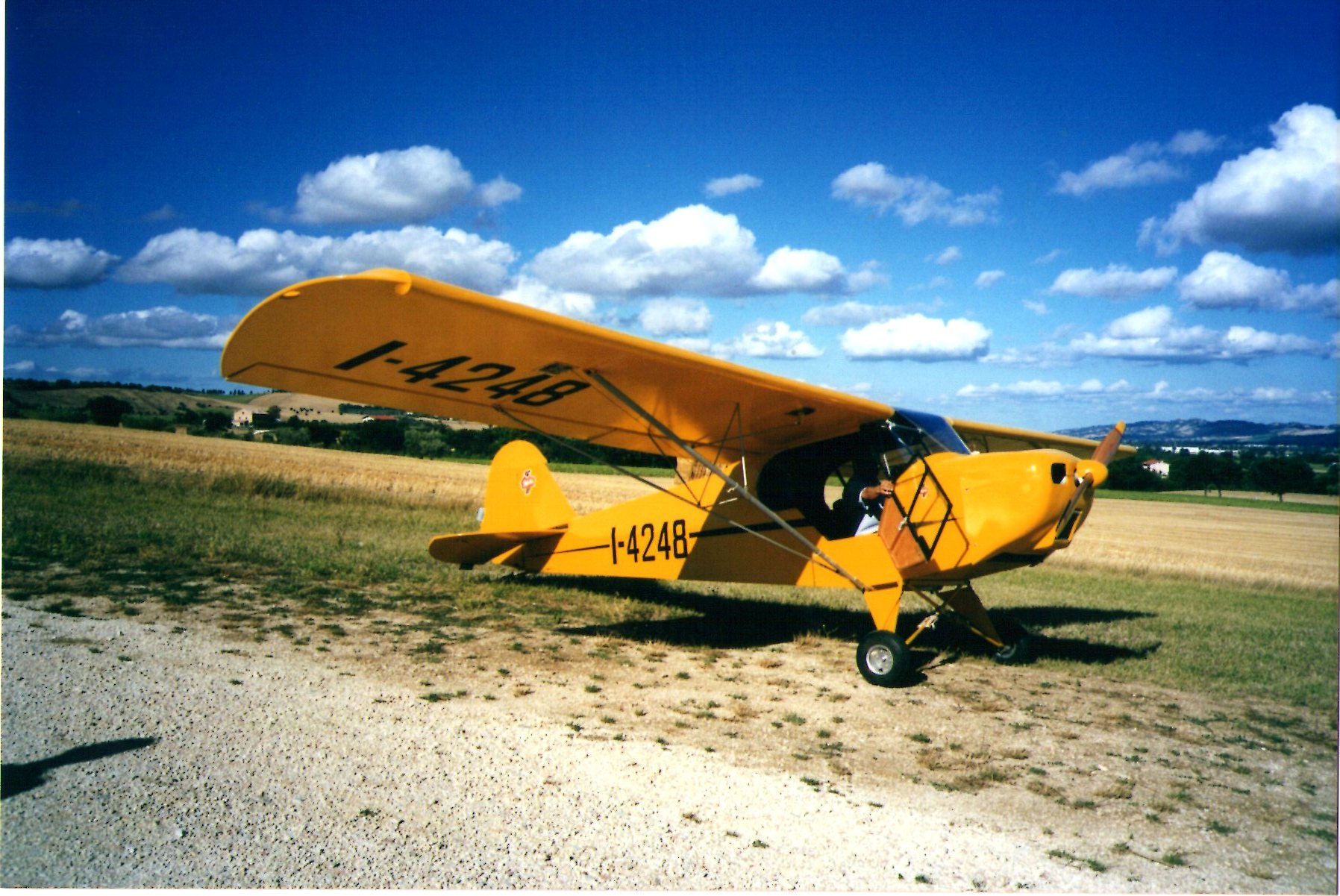

Standards for personal aircraft has been redefined, but not redesigned. . . the Super Koala.
Features:
- Can carry a payload equal to its weight.

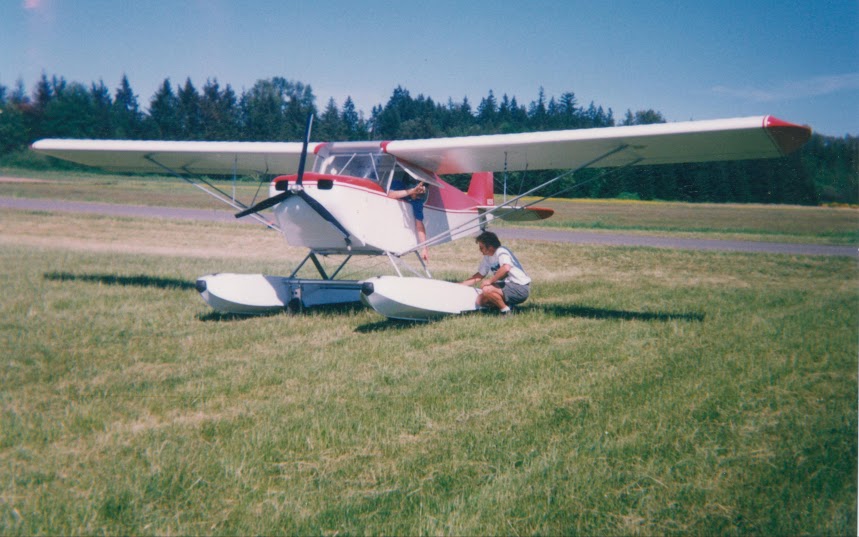

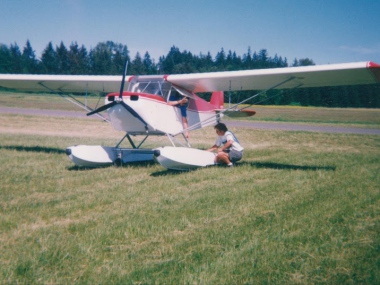

- Excellent platform for lightweight floats or skies

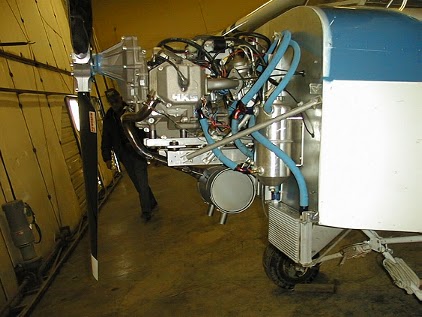

- Optional two-cycle or four-cycle engines
- Roomier cockpit
- One man-two minute wing fold system
Build Kit:
- Complete Airframe Kit:- Standard and Quick-Build
- Partial Airframe Kits:- Wing, Fuselage and Hardware Kits
- Plans and Instructions Included
- Excluded:- Engine, Engine Mount, Instruments, Upholstery, Restraints and Paint
- Engine HP range:- 65-80 hp
Flight Performance:
| Climb Rate | 1100 fpm |
| Cruise Speed | 75 mph |
| Glide Ratio | 9:1 |
| Landing Roll | 250 ft |
| Maximum Speed-VNE | 95 mph |
| Stall Speed -VSO | 32 mph |
| Takeoff Run | 150 ft |
| Top Level Speed | 90 mph |
Specifications:
| Cockpit Width | 24 in |
| Construction Time | Approx. 750 hrs |
| Design Loads | +4.0G and -2.2G |
| Empty Weight | 400 lbs |
| Engine HP | 65 to 80 hp |
| Engines |
ZonSen C80
|
| Field Assembly | Approx 30 min |
| Fuel Capacity | 8 gal (Optional wing tanks) |
| Gross Weight | 830 lbs |
| Height | 5 ft 7 in |
| Length | 18 ft 1 in |
| Power Loading | 10.4 lb/hp |
| Prop Diameter/Pitch | 60”/28” |
| Range | 250-400 Miles |
| Reduction Ratio | 2.58-to-1 |
| Useful Load | 430 lbs |
| Wing Area | 140 sq ft |
| Wing Loading | 5.9 lb/sf |
| Wingspan | 31 ft 0 in |
