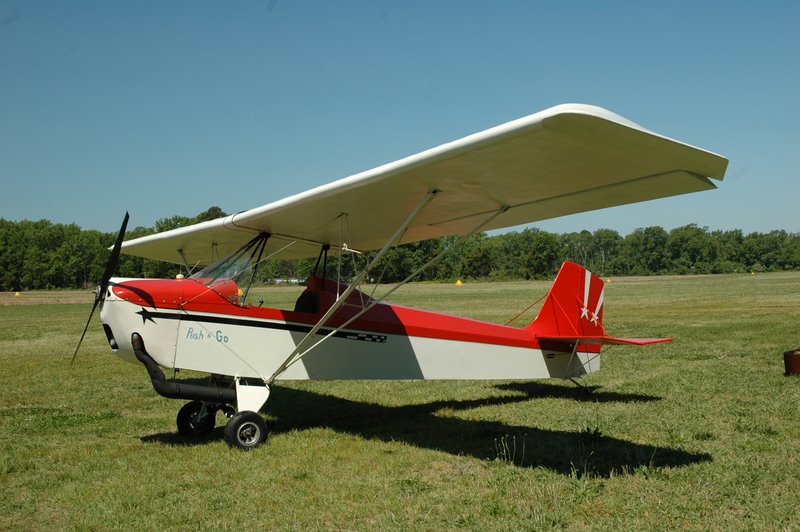

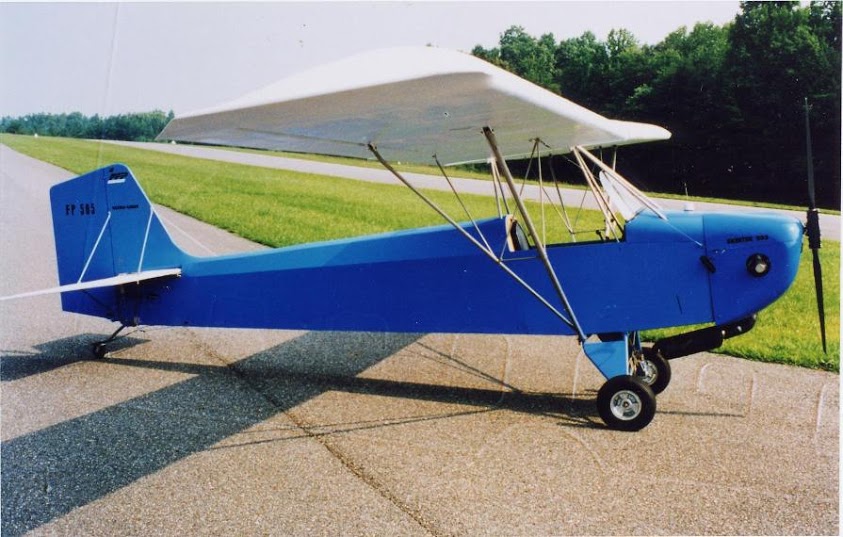

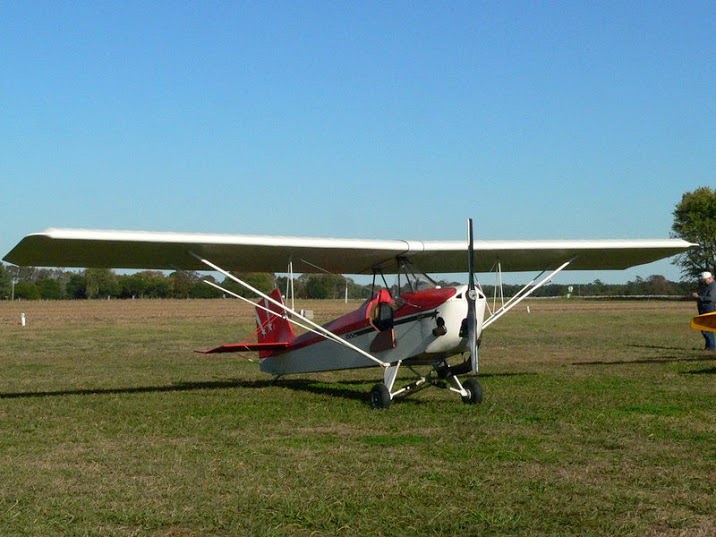

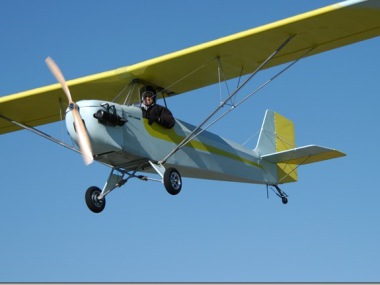

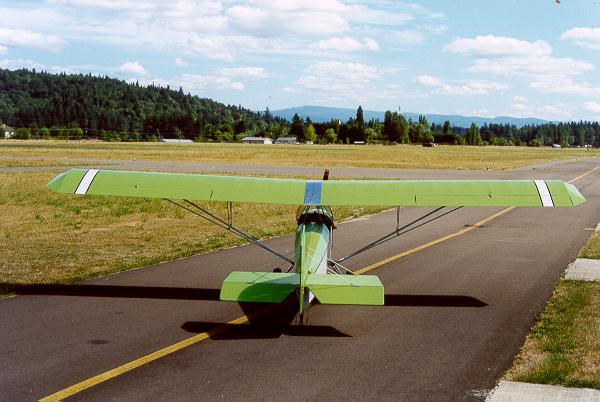

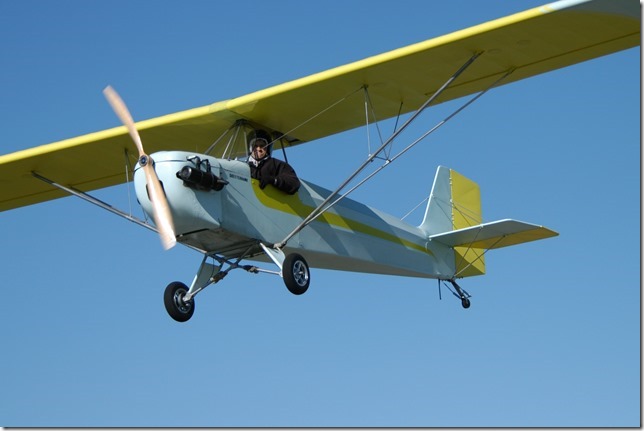

Once you are in the cockpit you can’t wait to get into the air.
With the wings above you, you’re rewarded with the view around you.
Features:
- Pylon-mounted high wing

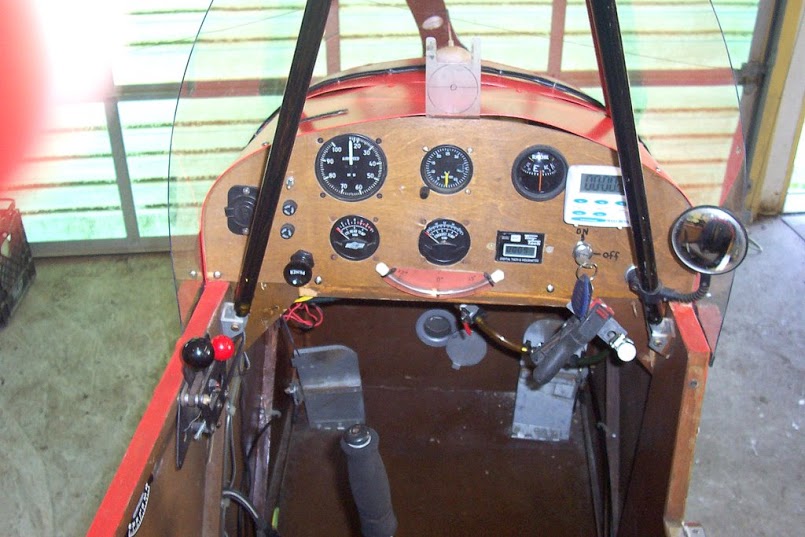

- Open cockpit
- Shock-absorbing gear

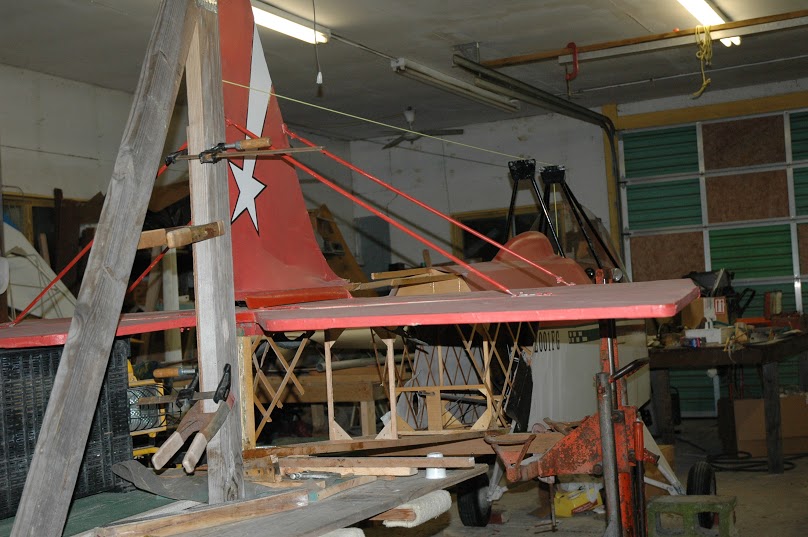

- Geodetic construction

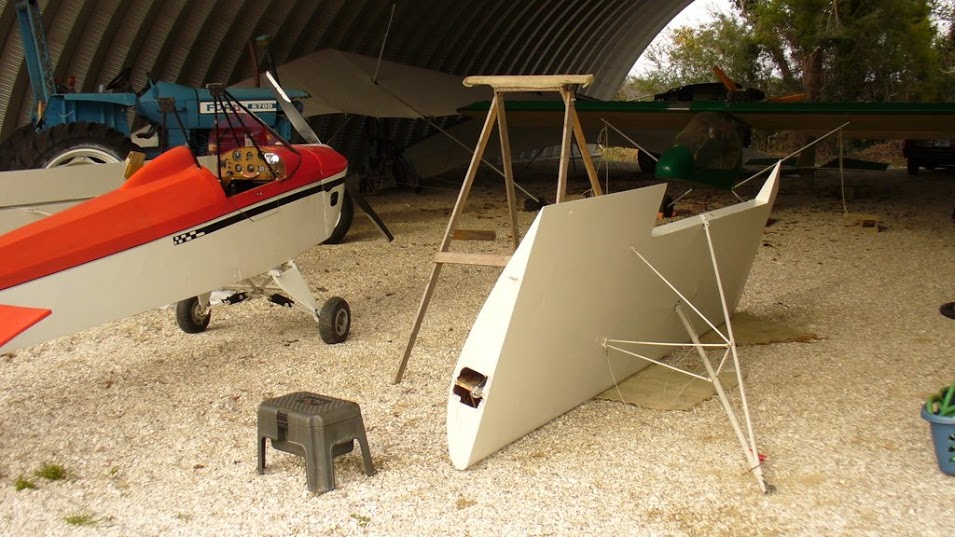

Build Kit:
- Complete Airframe Kit:- Standard and Quick-Build
- Partial Airframe Kits:- Wing, Fuselage and Hardware Kits
- Plans and Instructions Included
- Excluded:- Engine, Engine Mount, Instruments, Upholstery, Restraints and Paint
Flight Performance:
| Climb Rate | 700-800 fpm |
| Cruise Speed | 55-60 mph |
| Glide Ratio | 9:1 |
| Landing Roll | 150 ft |
| Maximum Speed-VNE | 83 mph |
| Stall Speed -VSO | 26 mph |
| Takeoff Run | 150 ft |
| Top Level Speed | 75 mph |
Specifications:
| Cockpit Width | 24 in |
| Construction Time | Approx. 500 hrs |
| Design Loads | +4.6G and -2.3G |
| Empty Weight | 240 lbs |

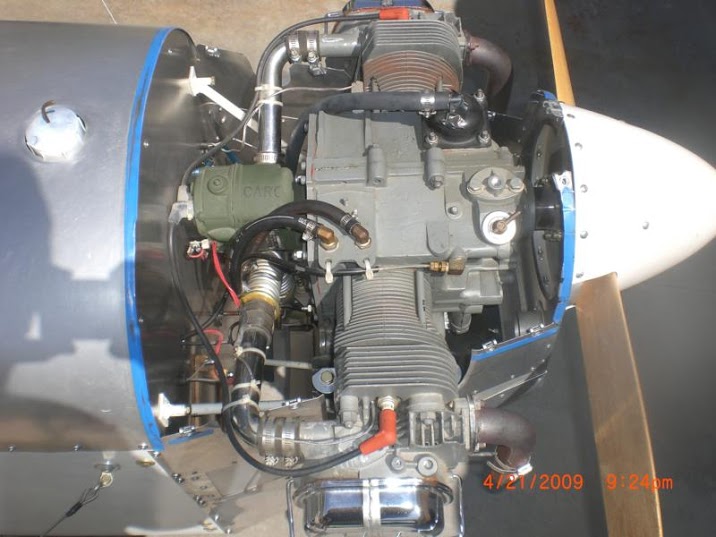

| Engine | Polini THOR 303 DS |
| Engine HP | 38 hp |

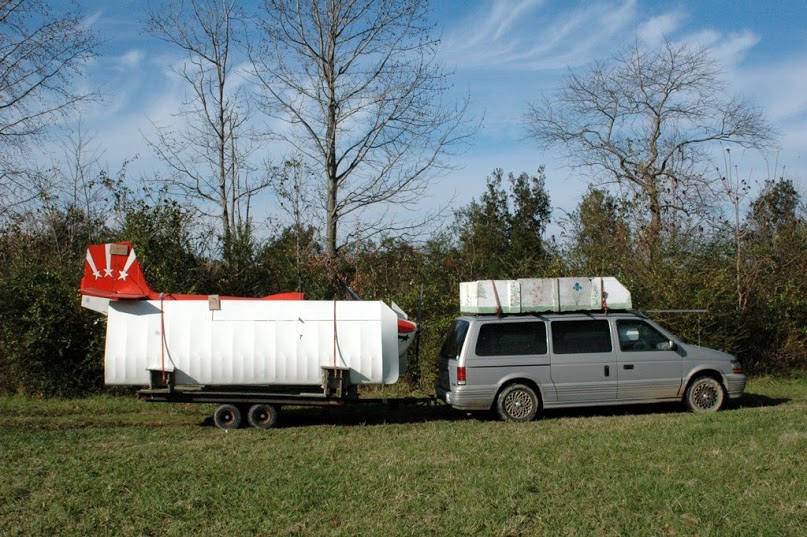

| Field Assembly | Approx 30 min |
| Fuel Capacity | 5 gal |
| Gross Weight | 500 lbs |
| Height | 5 ft 2 in |
| Length | 16 ft 6 in |
| Power Loading | 13.2 lb/hp |
| Prop Diameter/Pitch | 60”/28” |
| Range | 125-150 Miles |
| Reduction Ratio | 2.58-to-1 |
| Useful Load | 260 lbs |
| Wing Area | 112sq ft |
| Wing Loading | 4.46 lb/sf |
| Wingspan | 28 ft 0 in |
