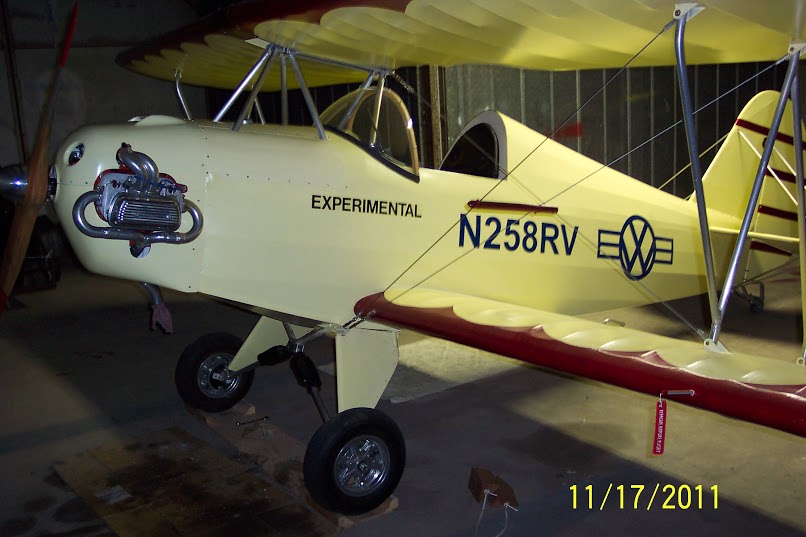

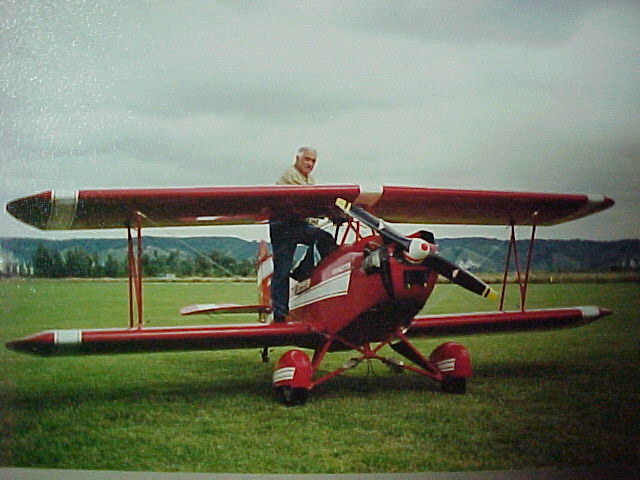

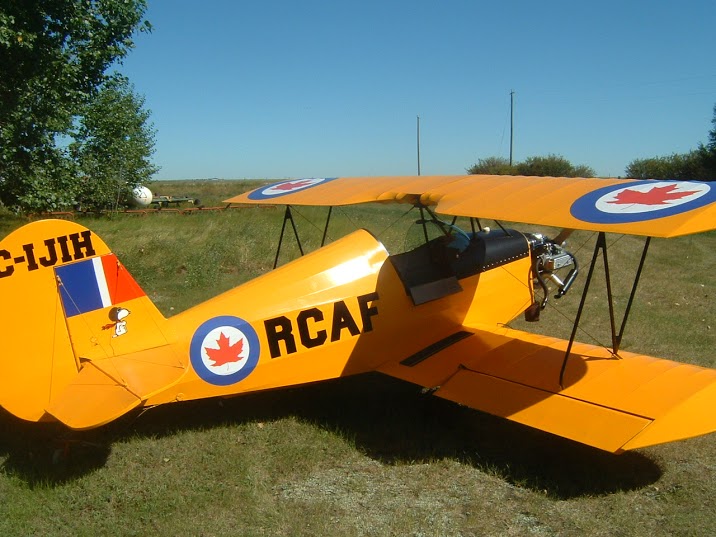

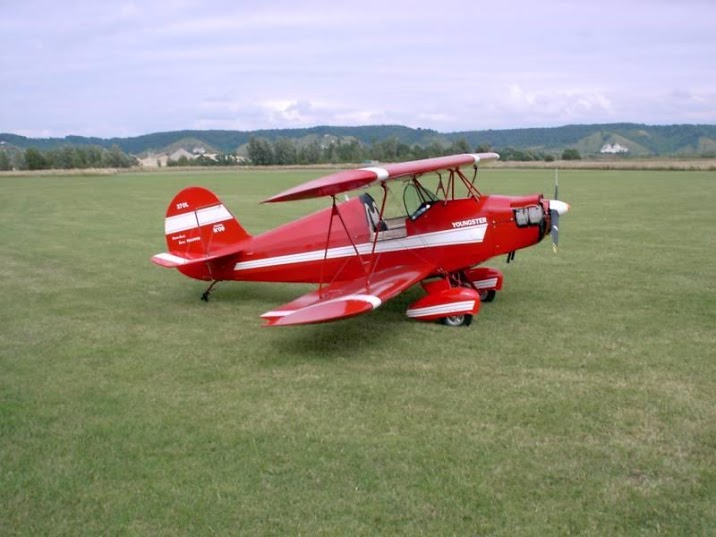

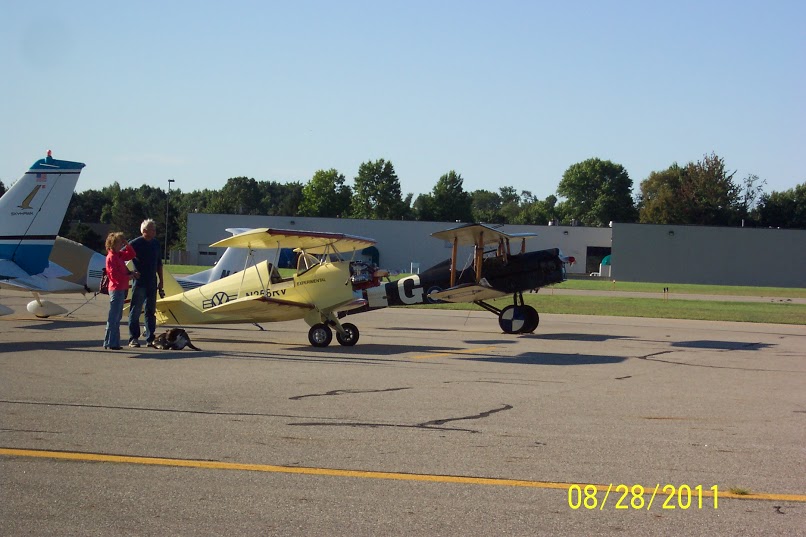

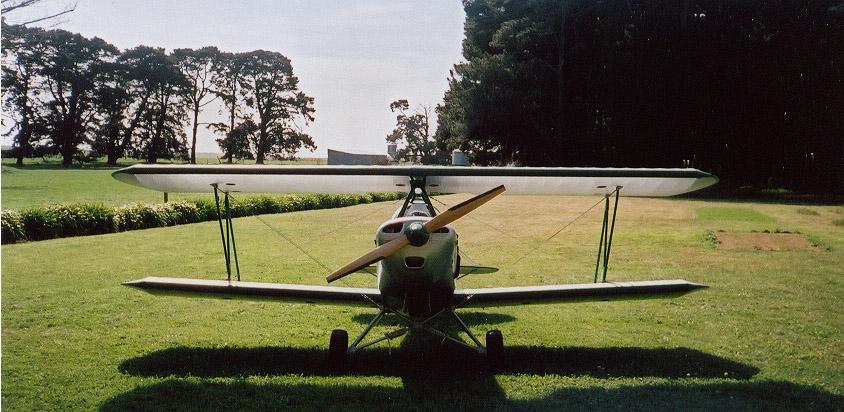

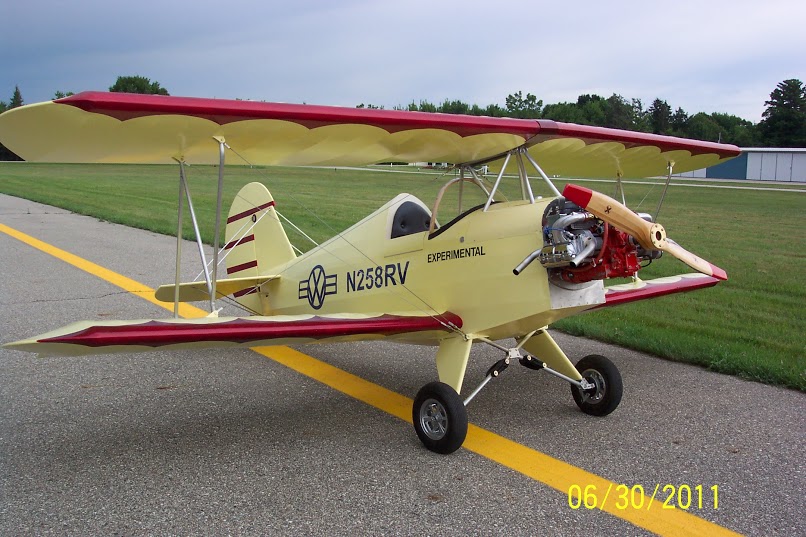

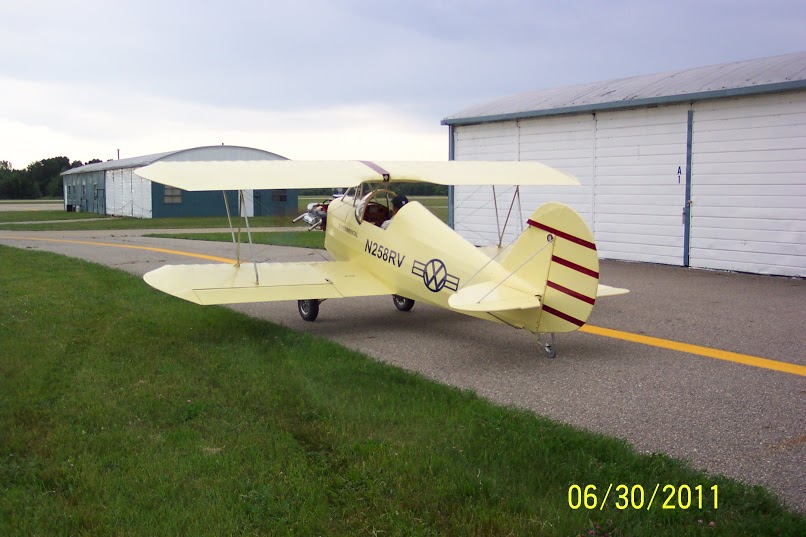

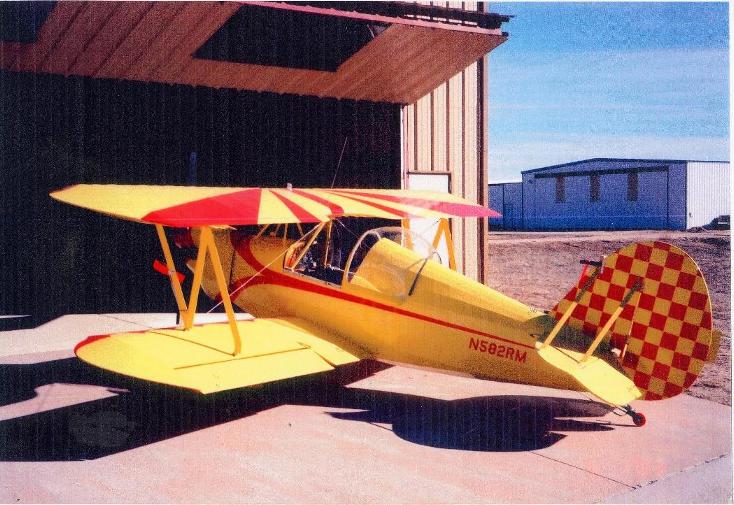

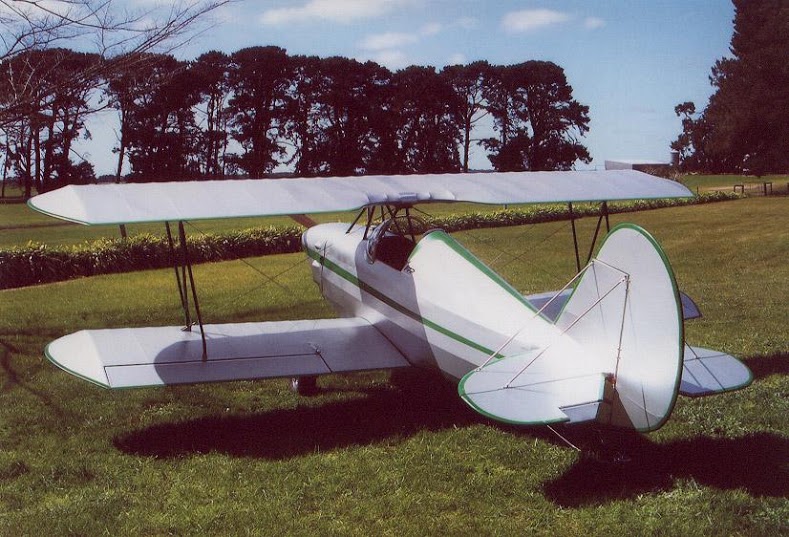

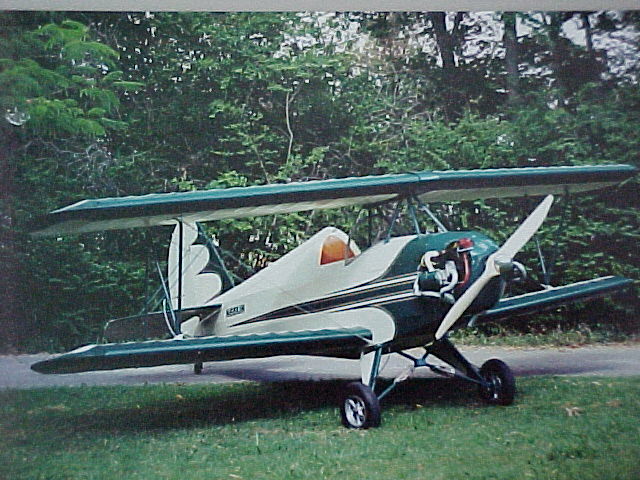

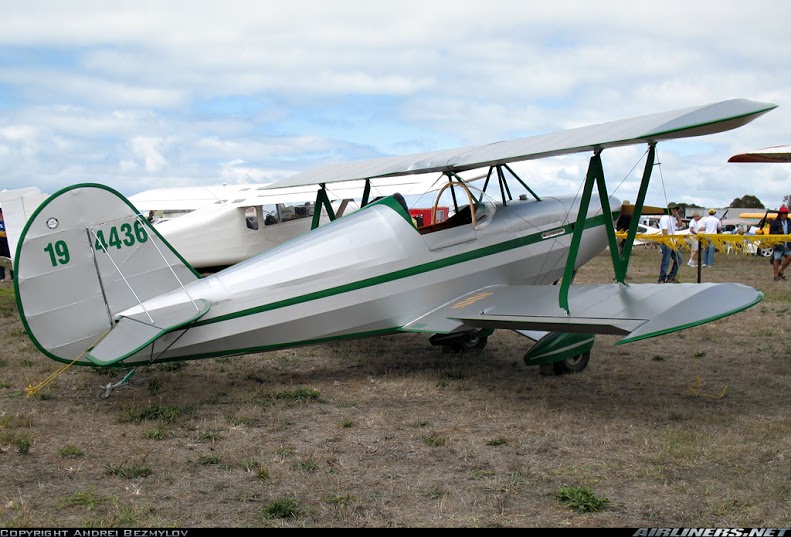

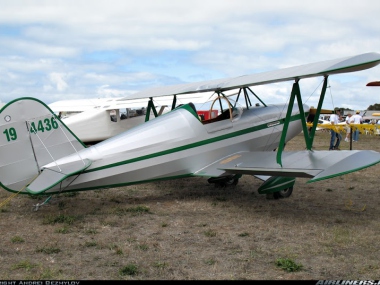

The Youngster. . . gentle on the ground yet plays in the air.
Features:
- Can carry a payload equal to its weight.
- Excellent platform for lightweight floats or skis

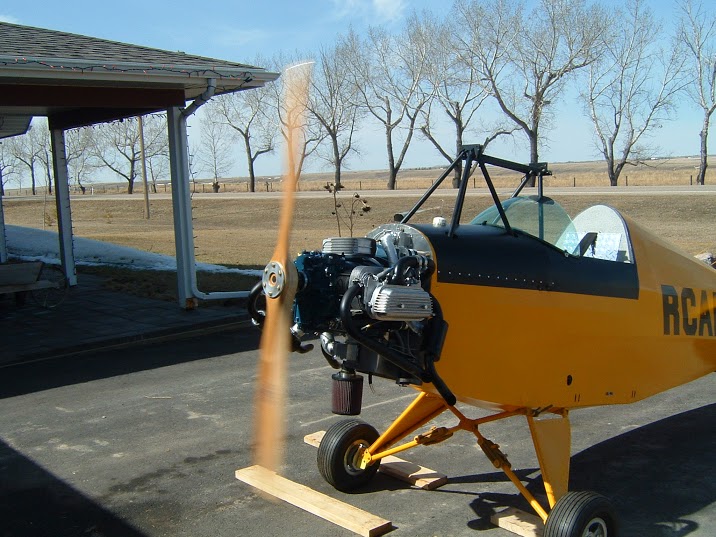

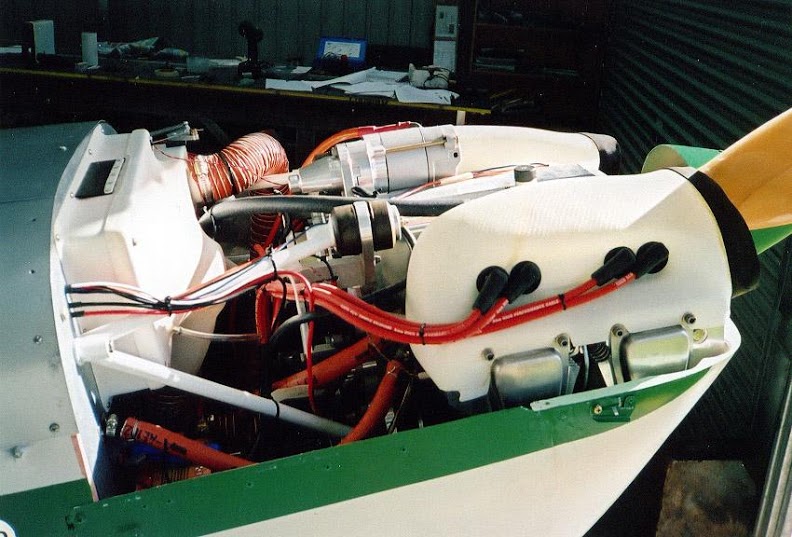

- Optional two-cycle or four-cycle engines
- Roomier cockpit
- One man-two minute wing fold system
Build Kit:

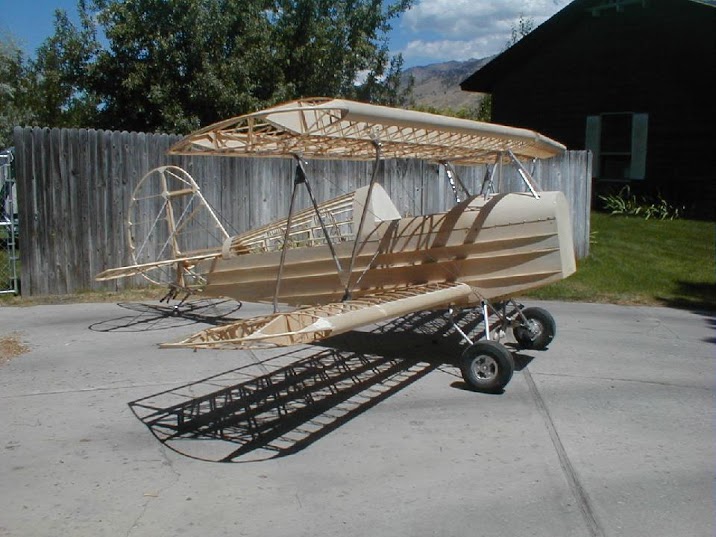

- Complete Airframe Kit:- Standard and Quick-Build
- Partial Airframe Kits:- Wing, Fuselage and Hardware Kits
- Plans and Instructions Included
- Excluded:- Engine, Engine Mount, Instruments, Upholstery, Restraints and Paint
Flight Performance:
| Climb Rate | 800 fpm |
| Cruise Speed | 90 mph |
| Glide Ratio | 9:1 |
| Landing Roll | 250 ft |
| Maximum Speed-VNE | 110 mph |
| Stall Speed -VSO | 35 mph |
| Takeoff Run | 200 ft |
| Top Level Speed | 100 mph |
Specifications:
| Cockpit Width | 24 in |
| Construction Time | Approx. 1500 hrs |
| Design Loads | +5.8G and -2.8G |
| Empty Weight | 400 lbs |
| Engine HP | 65-80 hp |
| Engines | ZonSen C80 |
| Field Assembly | N/A |
| Fuel Capacity | 8 gal (Optional wing tanks-6 gal) |
| Gross Weight | 650 lbs |
| Height | 6 ft 1 in |
| Length | 15 ft 6 in |
| Power Loading | 10.0 lb/hp |
| Prop Diameter/Pitch | 60”/28” |
| Range | 250-400 Miles |
| Reduction Ratio | 2.58-to-1 |
| Useful Load | 250 lbs |
| Wing Area | 126 sq ft |
| Wing Loading | 5.0 lb/sf |
| Wingspan | 18 ft 0 in |
