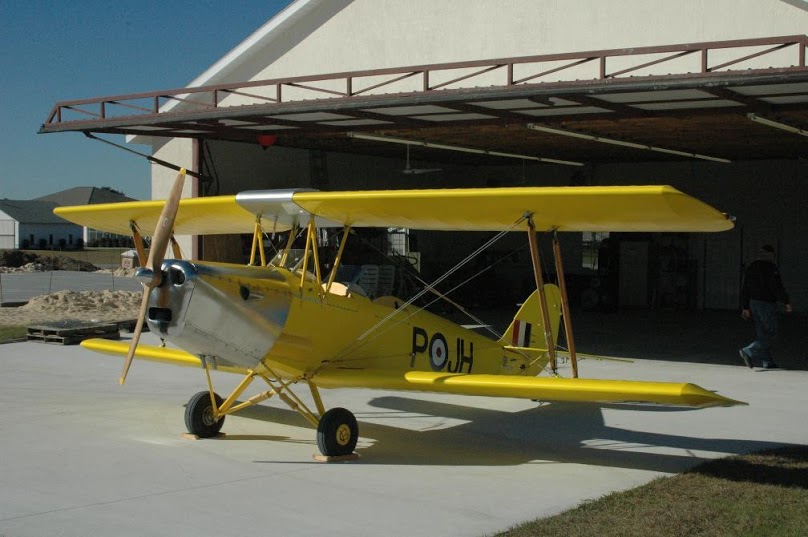

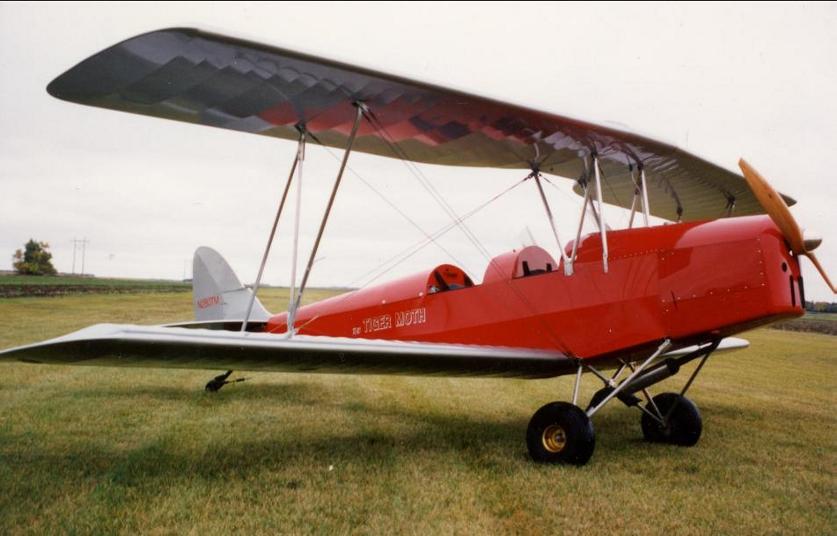

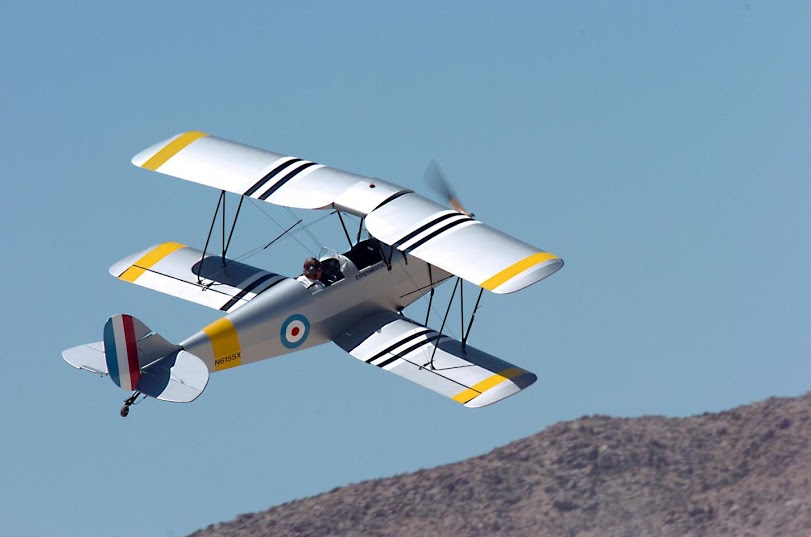

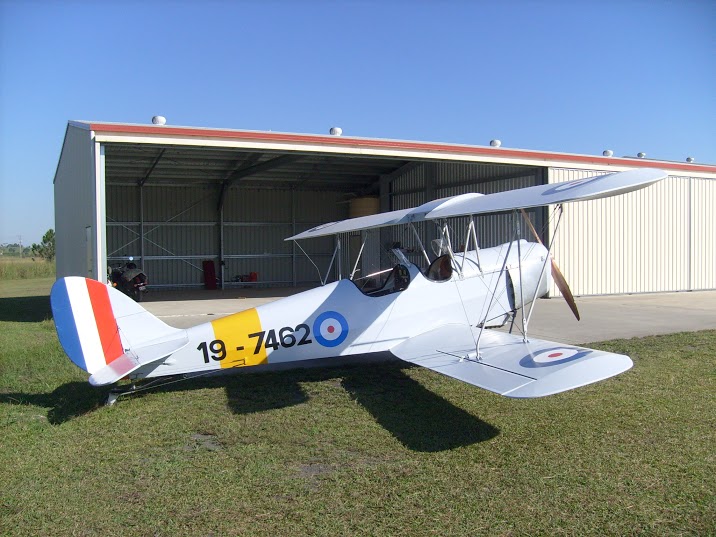

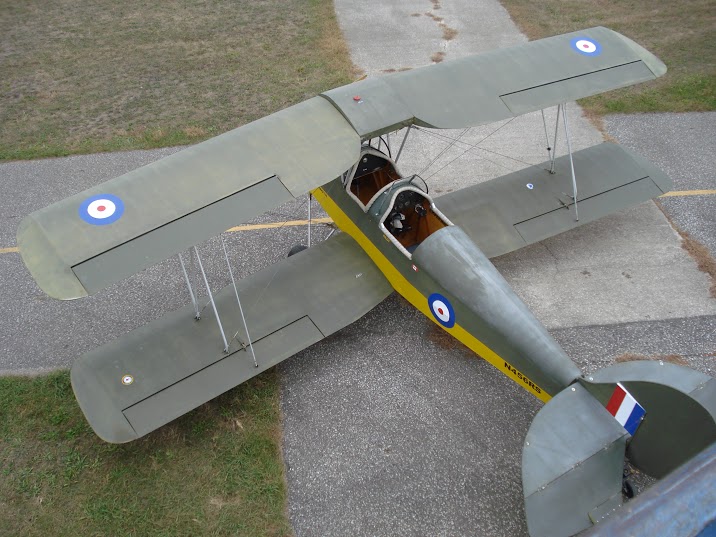

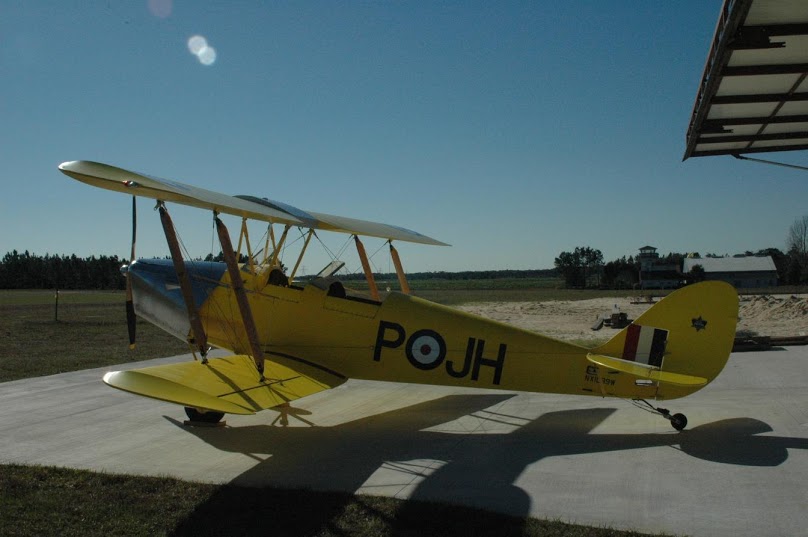

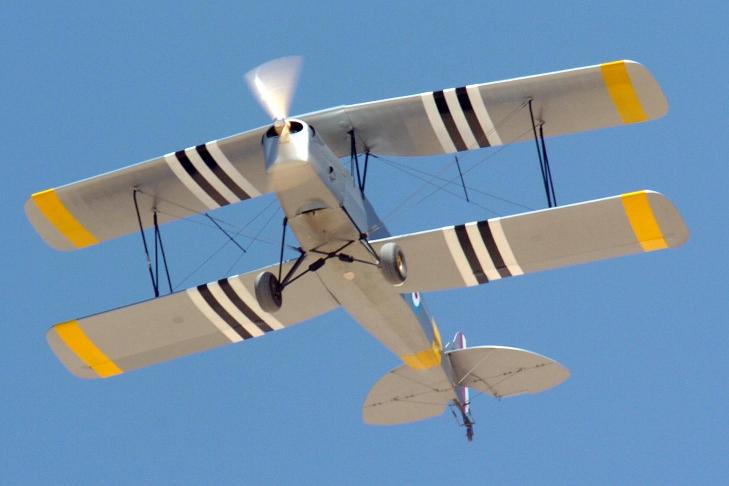

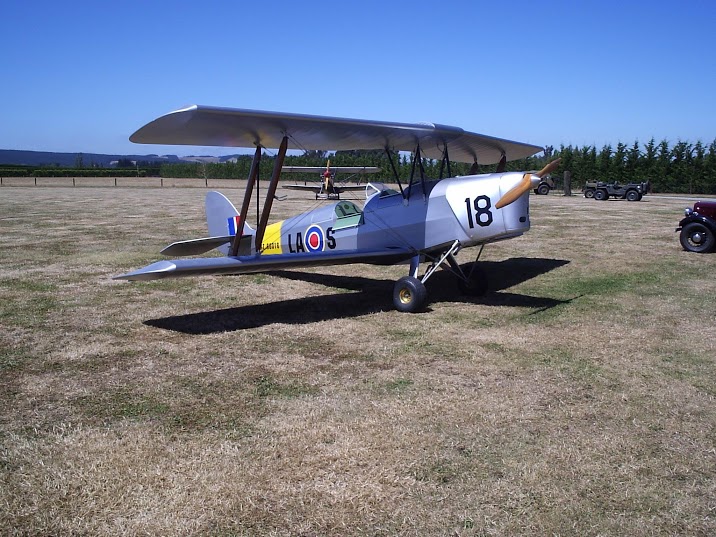

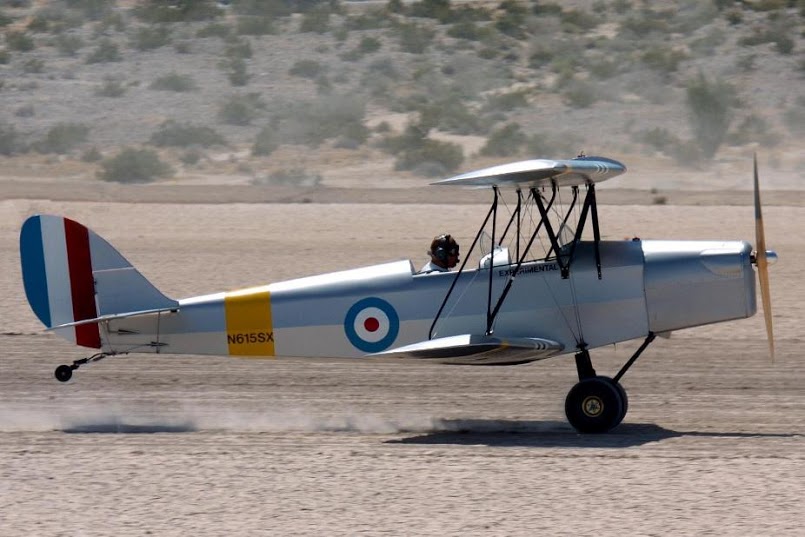

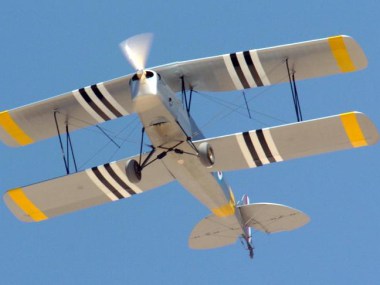

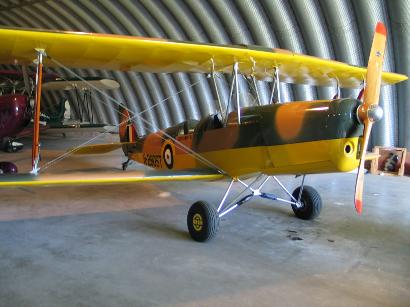

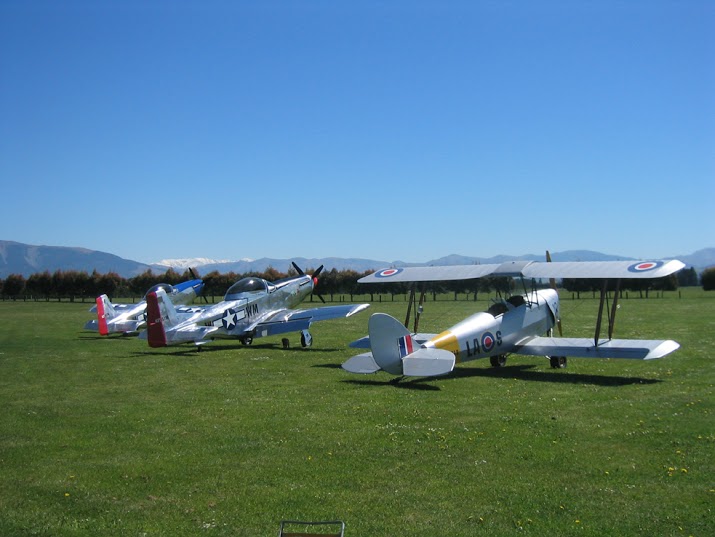

Now you can relive a part of history when you fly your own replica of the DeHavilland Tiger Moth.
Features:

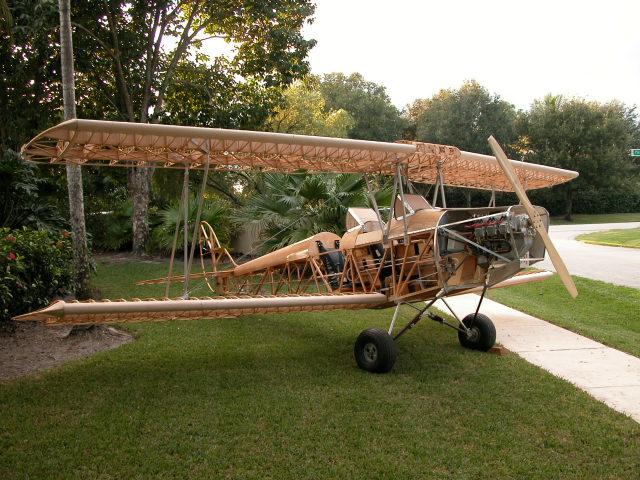

- Geodetic construction

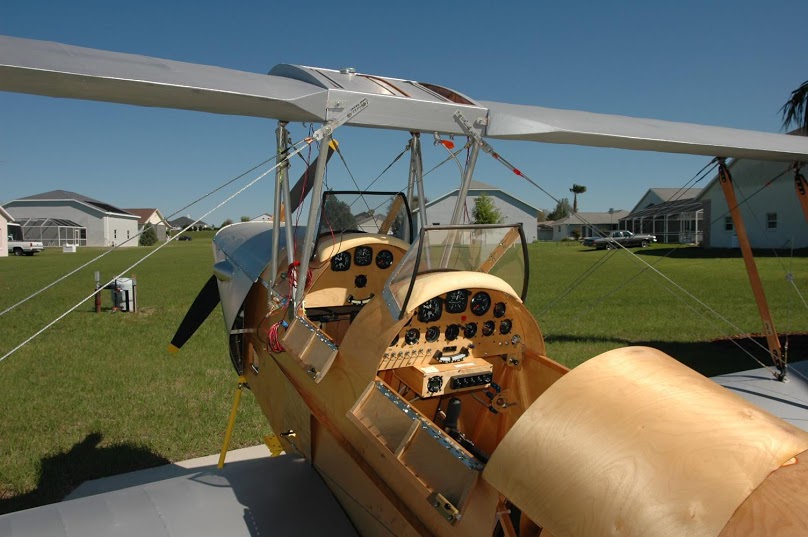

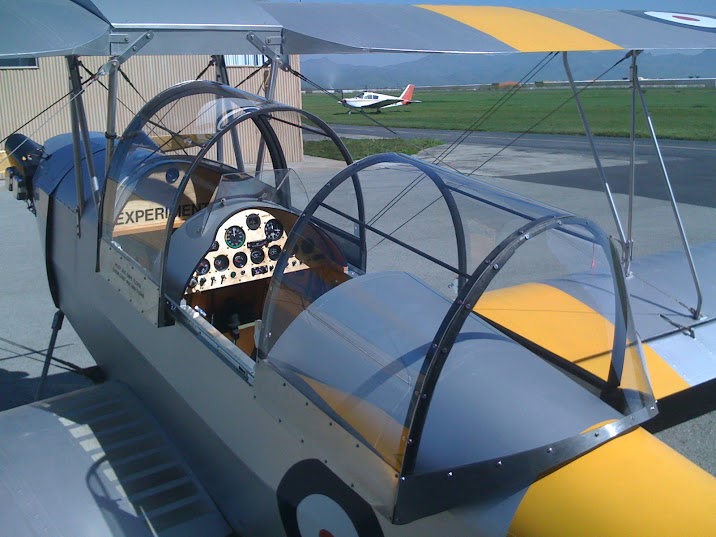

- Fully enclosed cockpit
- Removable cockpit door

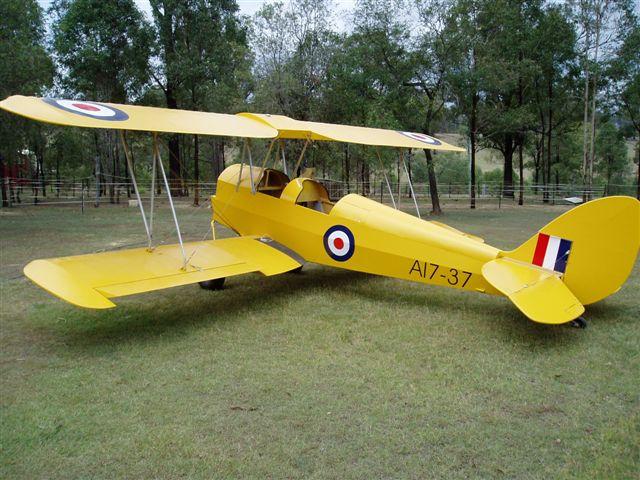

- Available as either a tri-gear or taildragger
- 5 gallon tank
Build Kit:
- Complete Airframe Kit:- Standard and Quick-Build
- Partial Airframe Kits:- Wing, Fuselage and Hardware Kits
- Plans and Instructions Included
- Excluded:- Engine, Engine Mount, Instruments, Upholstery, Restraints and Paint
- Engine HP range:- 85-115 hp
Flight Performance:
| Climb Rate | 800-900 fpm |
| Cruise Speed | 90 mph |
| Glide Ratio | 9:1 |
| Landing Roll | 400 ft |
| Maximum Speed-VNE | 110 mph |
| Stall Speed -VSO | 35 mph |
| Takeoff Run | 300 ft |
| Top Level Speed | 100 mph |
Specifications:
| Cockpit Width | 26 in |
| Construction Time | Approx. 1000 hrs |
| Design Loads | +6.0G and -3.0G |
| Empty Weight | 560 lbs |
| Engine HP | 85 to 115 hp |
| Engines | ZonSen C80, C100 , or C115 |
| Field Assembly | Approx 30 min |
| Fuel Capacity | 13 gal (Optional 6 gal wing tank) |
| Gross Weight | 1150 lbs |
| Height | 7 ft 4 in |
| Length | 19 ft 0 in |
| Power Loading | 11.5 lb/hp |
| Prop Diameter | 66-72 in |
| Range | 250-400 Miles |
| Reduction Ratio | 2.58-to-1 |
| Useful Load | 590 lbs |
| Wing Area | 170 sq ft |
| Wing Loading | 6.76 lb/sf |
| Wingspan | 23 ft 0 in |
