Fisher FP-404 EXP

The FP-404 will turn a love of flying into a passion for flight.
Once enchanted by this biplane, you will always long for that next flight!

Click here for Plans
Click here for Kits

Features:

  • Short wings
  • Full-span ailerons
  • Semi- symmetrical airfoil
  • Geodetic wood construction
  • Additional bracing for structural strength
  • Minimal instruments
  • Bare-necessity controls

   Build Kit

  • Complete Airframe Kit:- Standard and Quick-Build
  • Partial Airframe Kits:- Wing, Fuselage and Hardware Kits
  • Technical drawings Included.
  • Excluded:- Engine, Engine Mount, Instruments, Upholstery, Restraints and Paint

Flight Performance:

Climb Rate 700-800 fpm
Cruise Speed 45-60 mph
Glide Ratio 9:1
Landing Roll 125 ft
Maximum Speed – VNE 70 mph
Stall Speed -VSO 25 mph
Takeoff Run 125 ft
Top Level Speed 60 mph

Specifications:

Cockpit Width 24 in
Construction Time Approx. 500 hrs
Design Loads +6.0G and -3.0G
Empty Weight 275 lbs
Engine ZonSen C80
Engine HP 50-65 hp
Field Assembly Approx 30 min
Fuel Capacity 8.0 gal (opt. wing tanks-6 gal)
Gross Weight 540 lbs
Height 5 ft 5 in
Length 14 ft 6 in
Power Loading 10.8 lb/hp
Prop Diameter/Pitch 60”/28”
Range 125-150 Miles
Reduction Ratio 2.58-to-1
Useful Load 265 lbs
Wing Area 120 sq ft
Wing Loading 4.5 lb/sf
Wingspan 18 ft 0 in

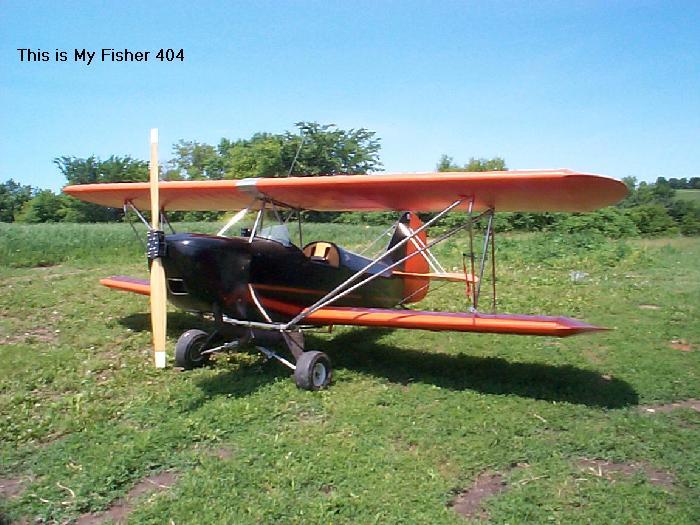

fp-404-11

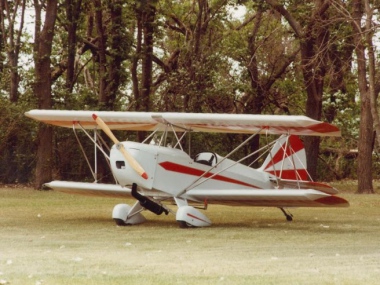

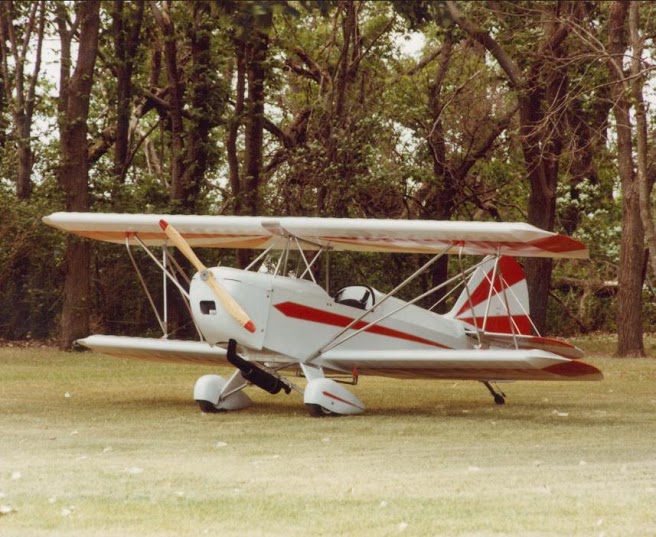

fp-404-14

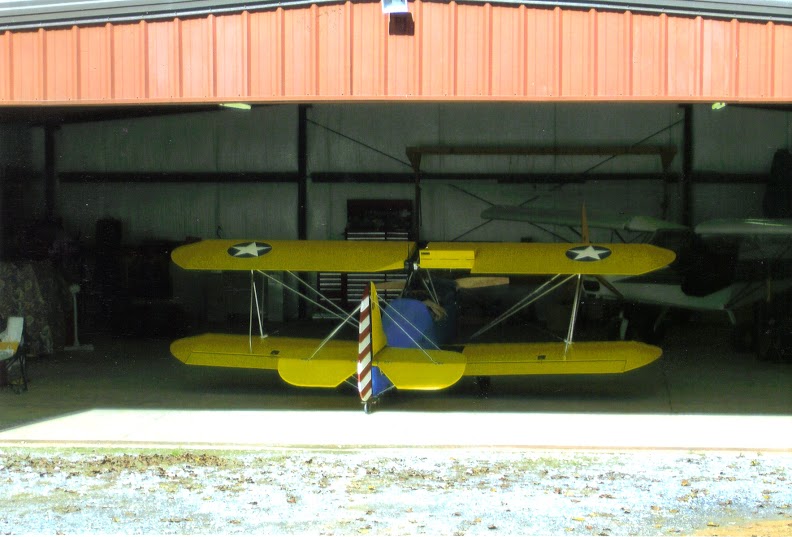

fp-404-15

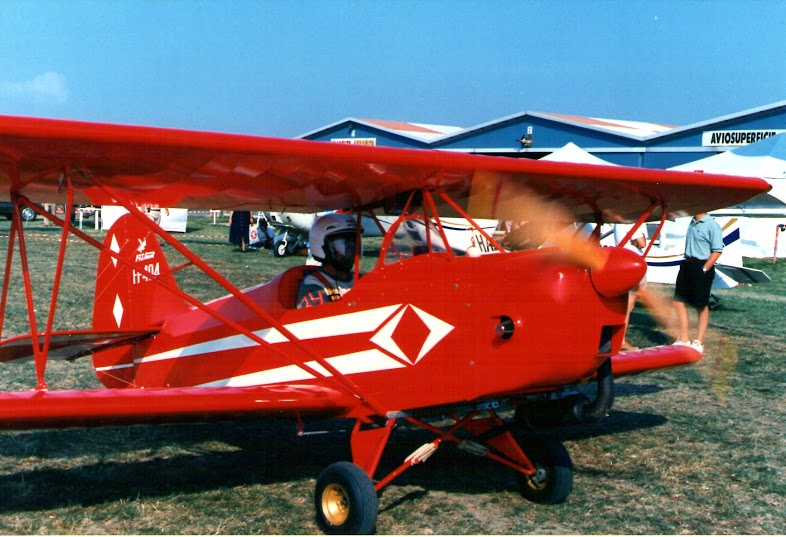

fp-404-16

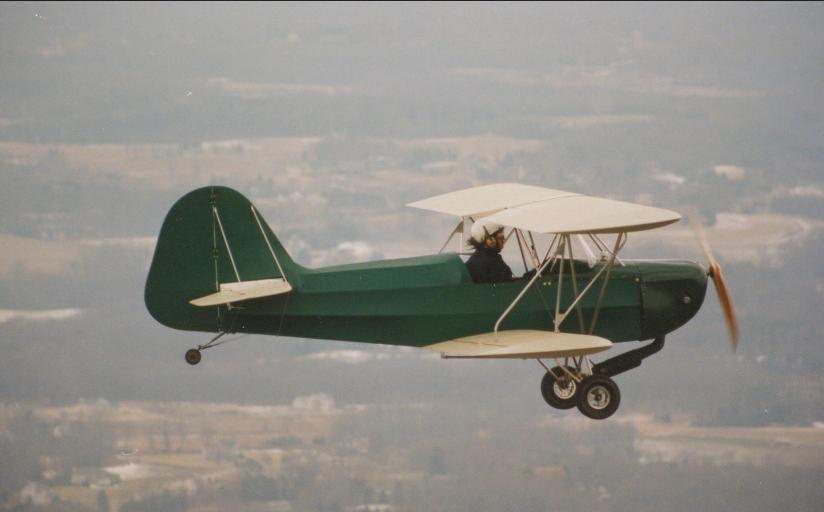

fp-404-12

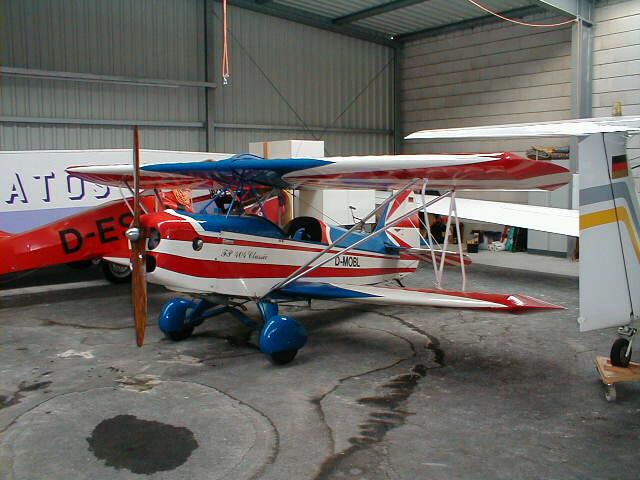

fp-404-13

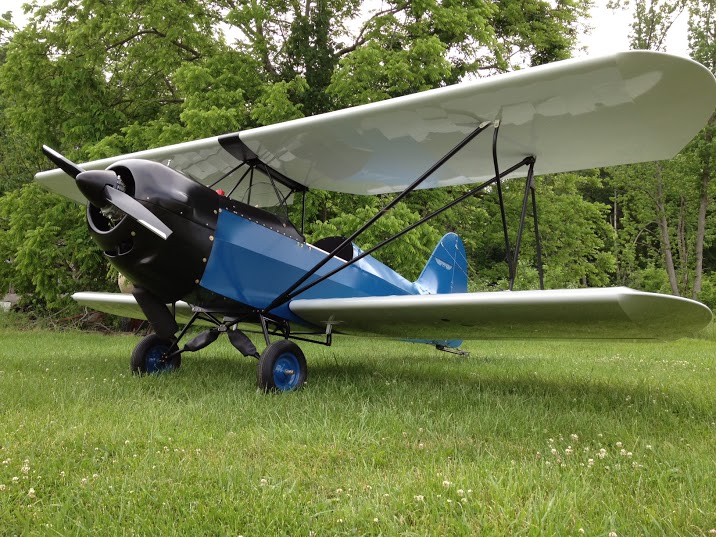

fp-404-2

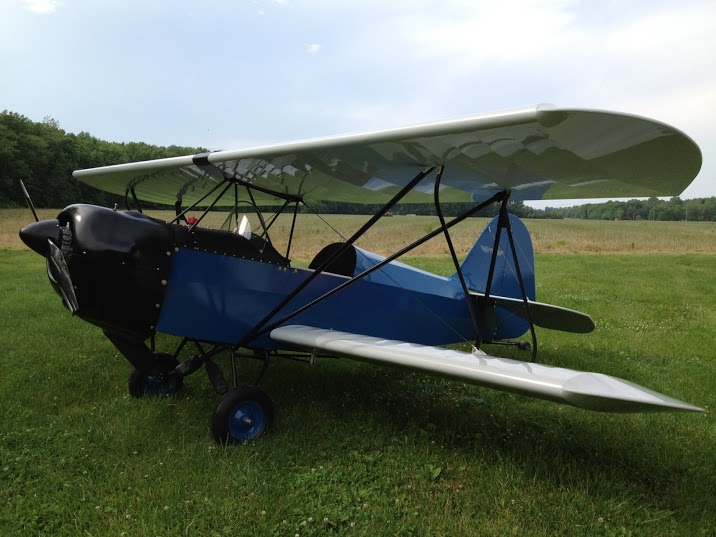

fp-404-1

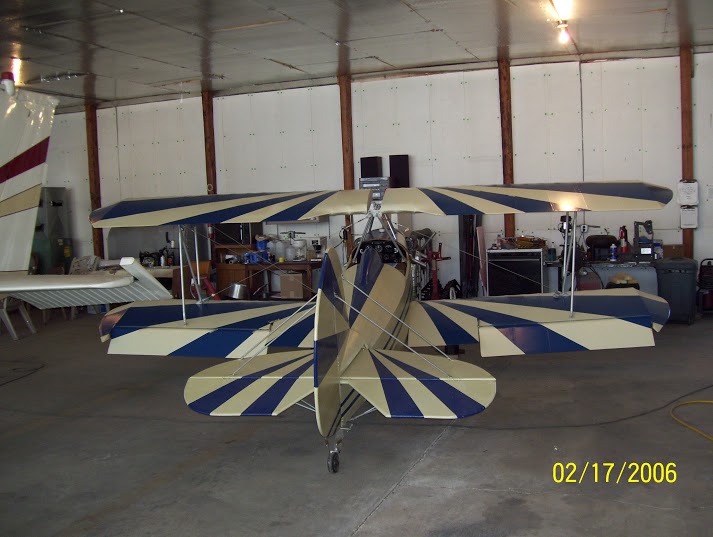

fp-404-3

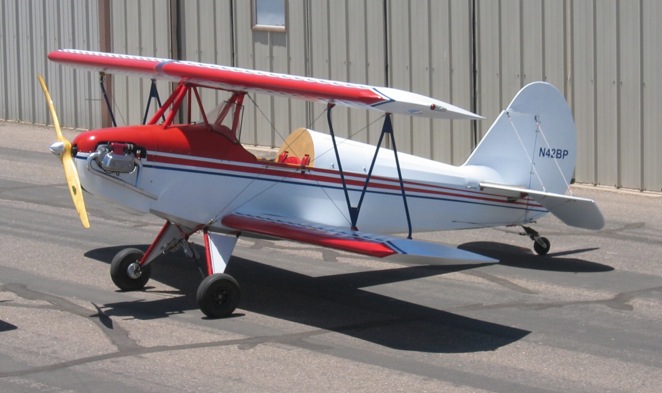

fp-404-4

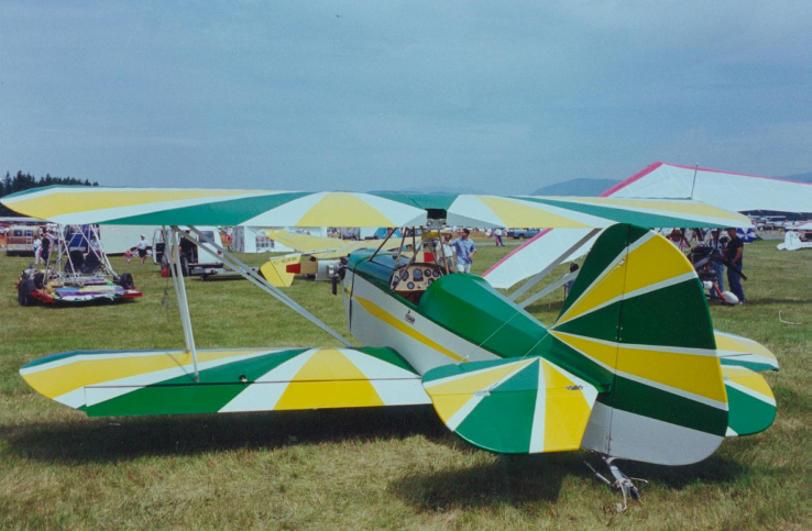

fp-404-17

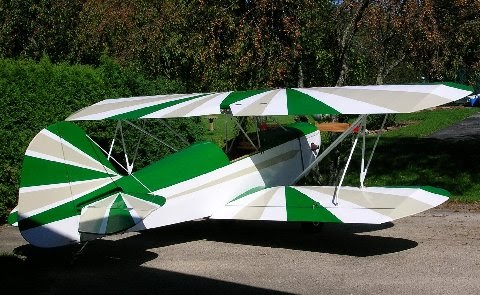

fp-404-5

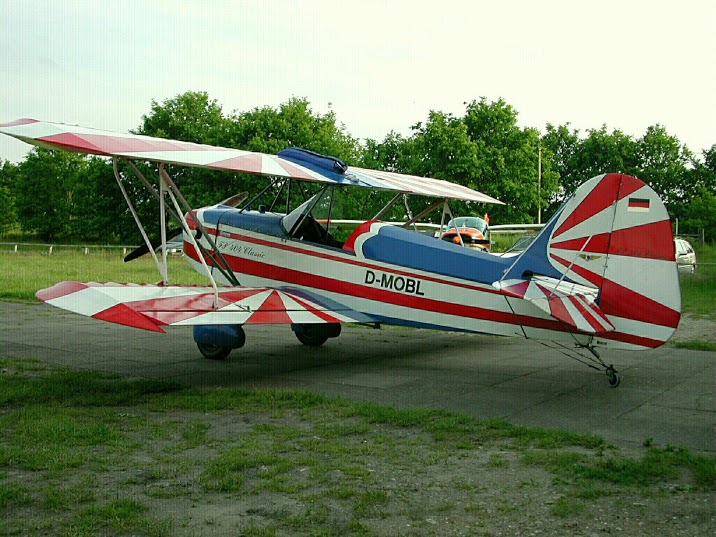

fp-404-10

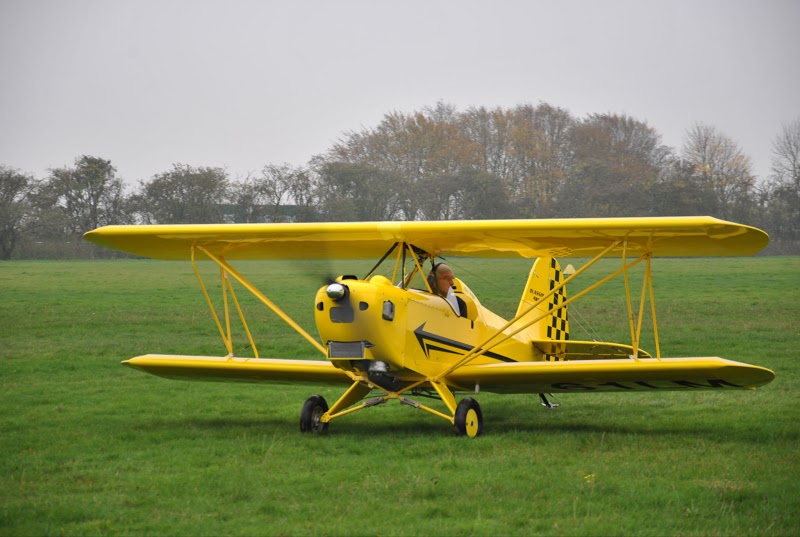

fp-404-7

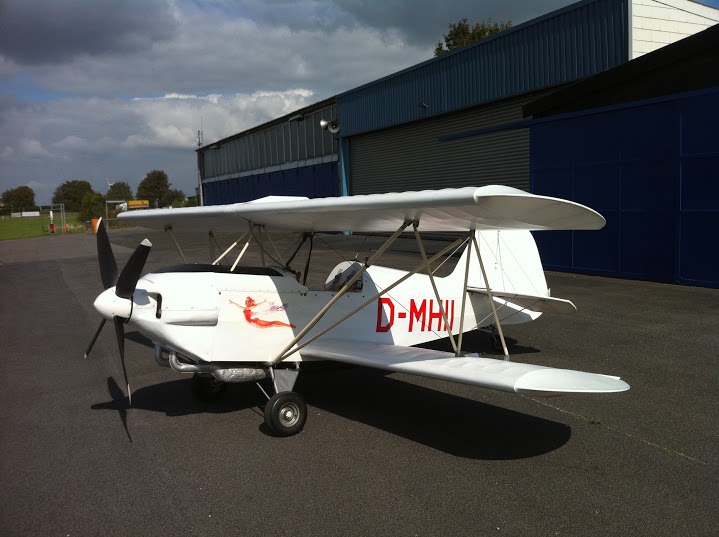

fp-404-8

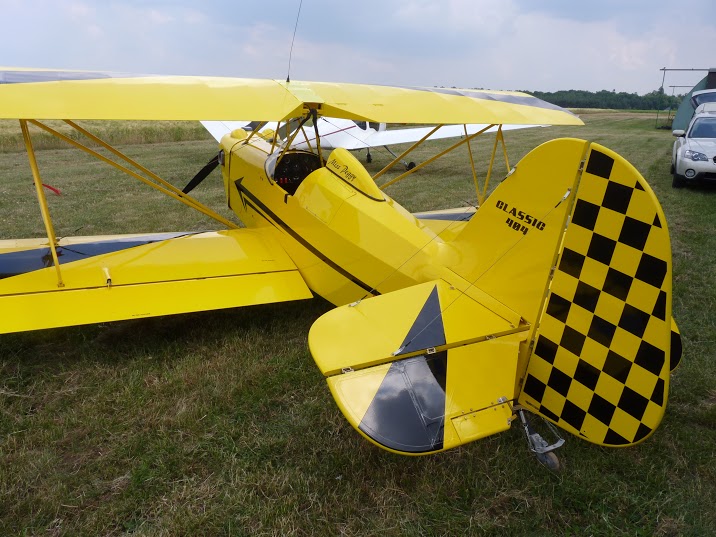

fp-404-6
