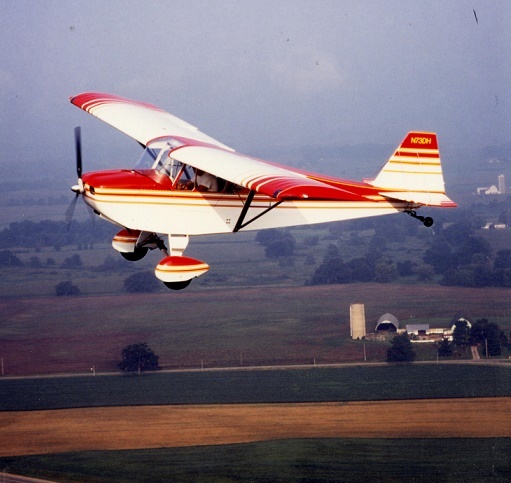

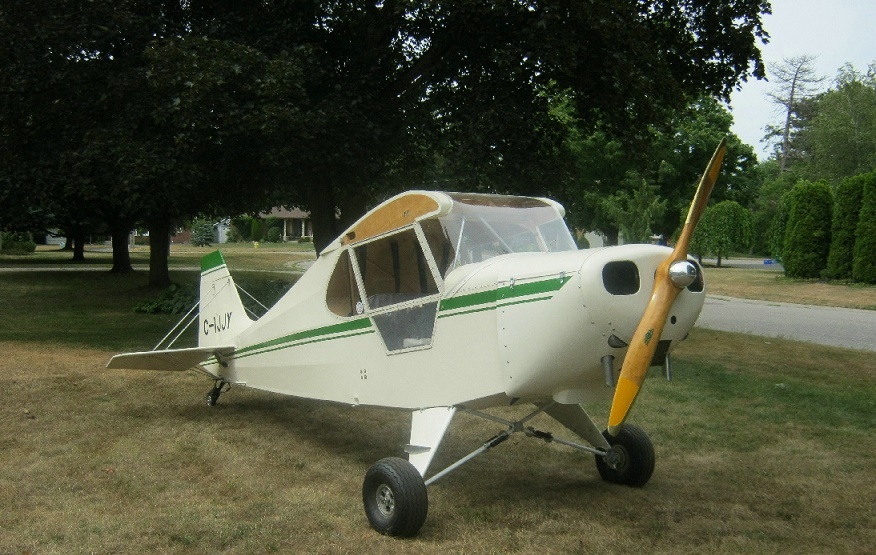

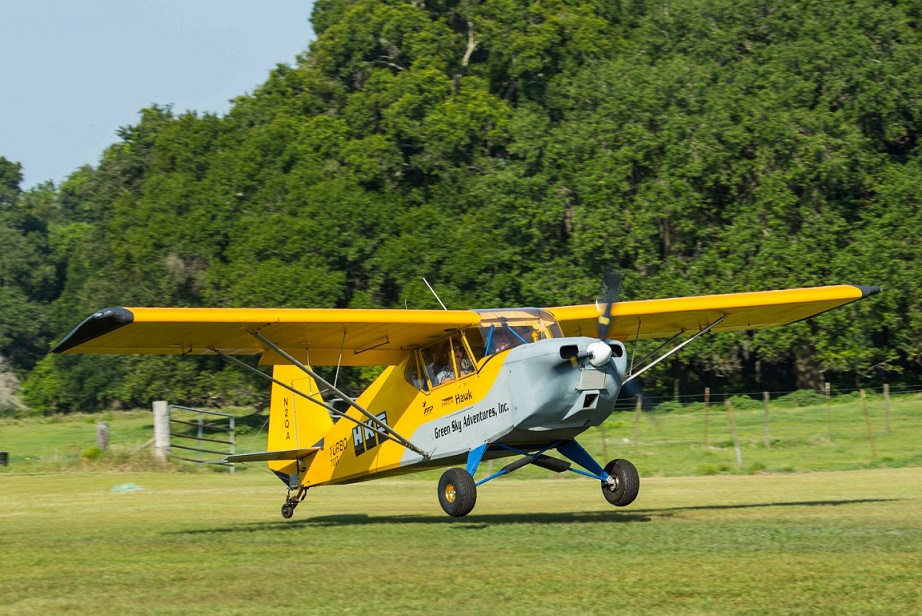

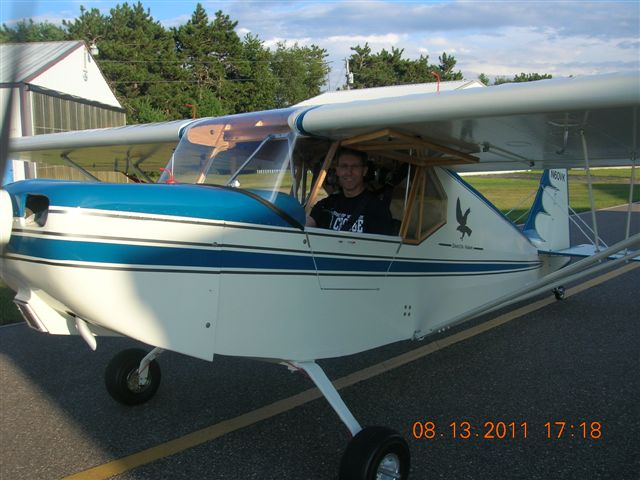

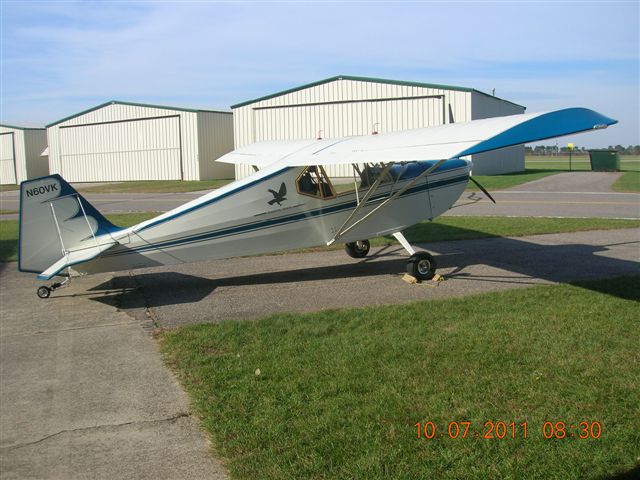

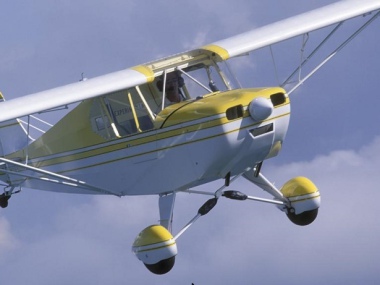

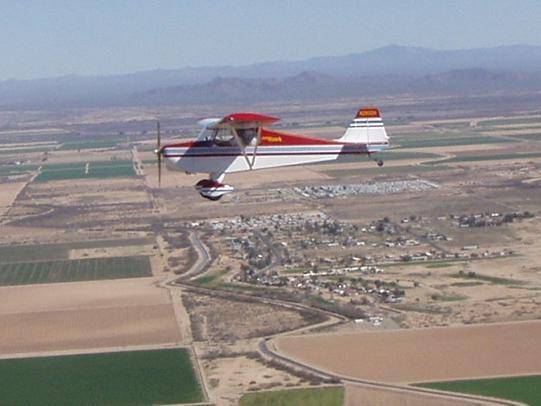

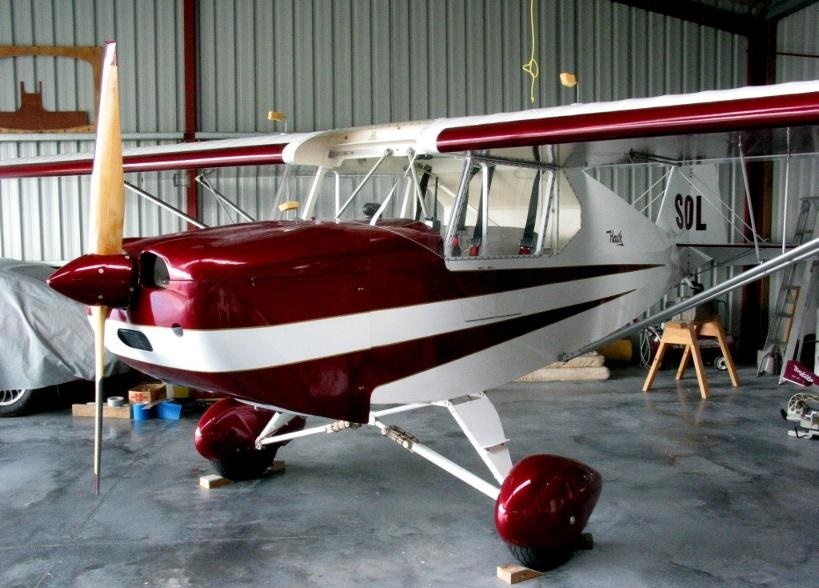

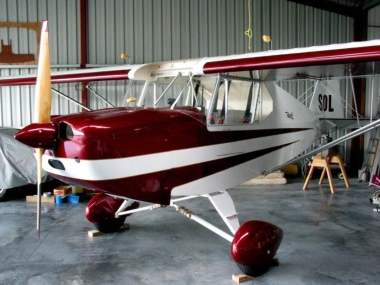

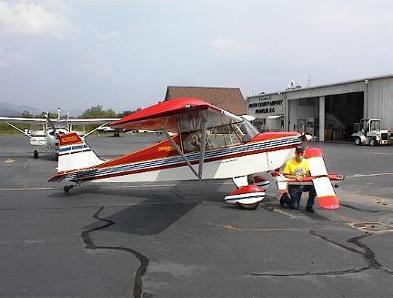

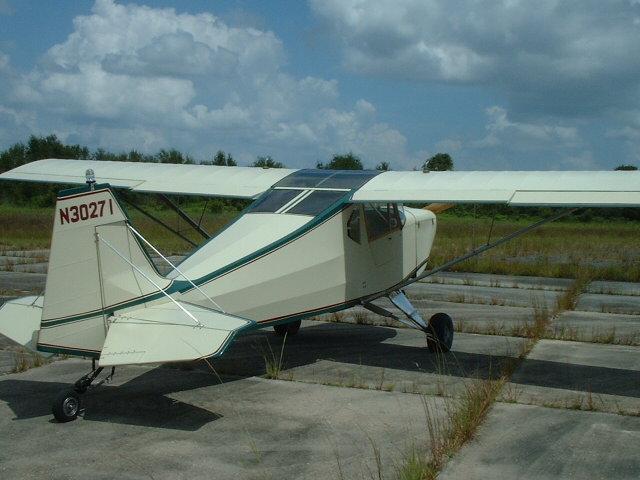

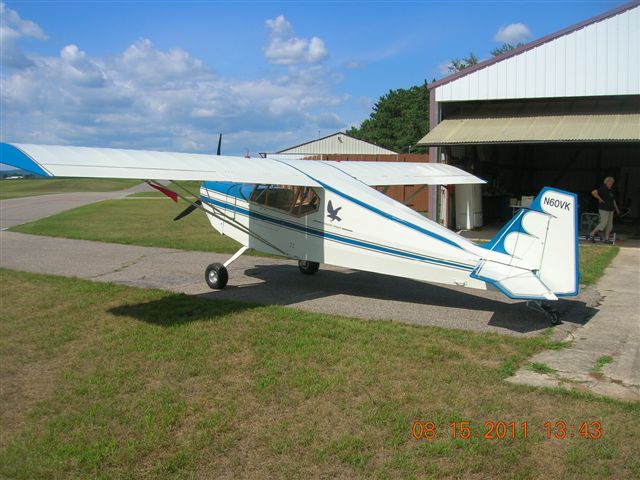

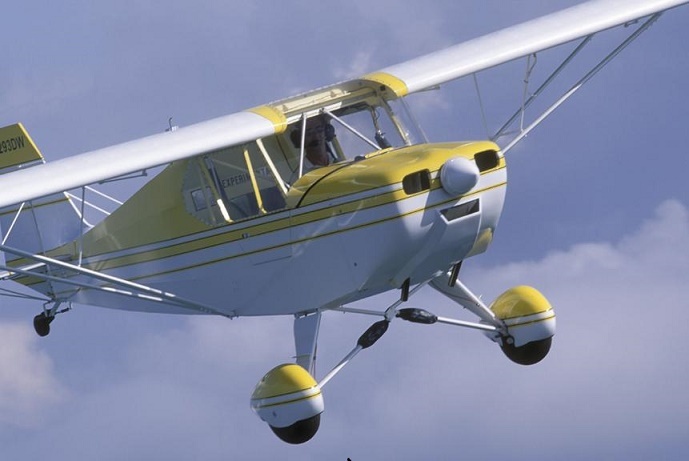

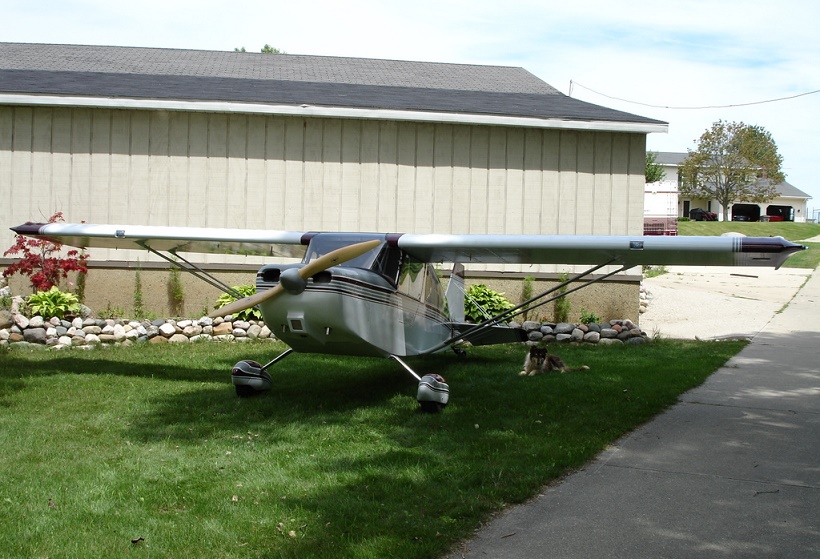

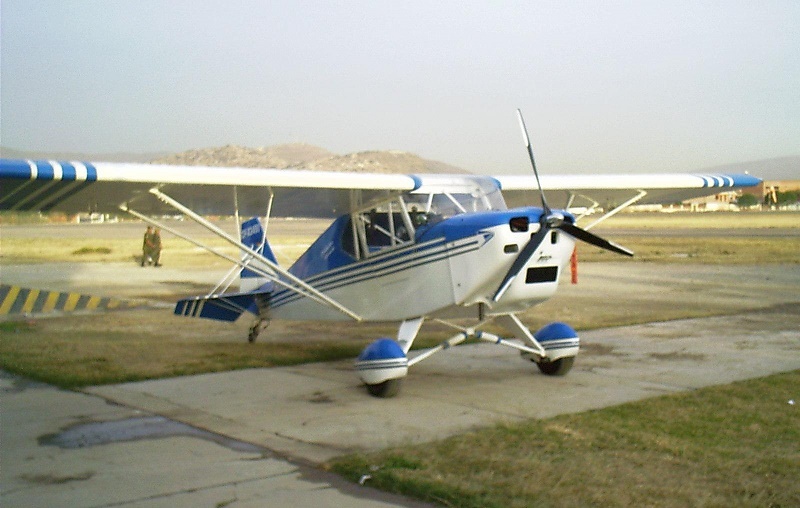

One of our recent additions. The Hawk has quickly become sought after by pilots seeking a high-performance flight for cross country trips.
Features:
- Dual Controls
- Roomier cabin
- Steerable Tail Wheel
- Robust Main Landing Gear
- Foldable Wings
- Cargo Space
- Optional 7.5 gal Wing Tanks

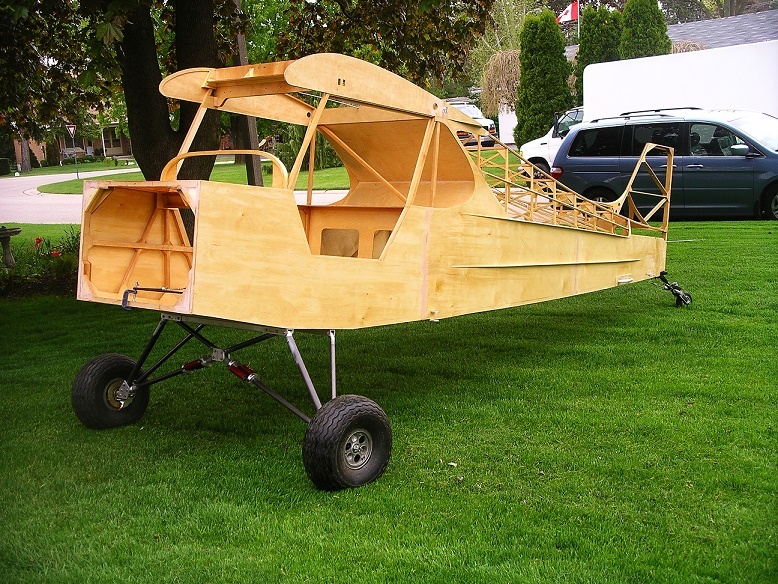

Build Kit
- Complete Airframe Kit:- Standard and Quick-Build
- Partial Airframe Kits:- Wing, Fuselage and Hardware Kits
- Plans and Instructions Included
- Excluded:- Engine, Engine Mount, Instruments, Upholstery, Restraints and Paint
Flight Performance:
| Climb Rate | 800-1200 FPM |
| Cruise Speed | 90-100 mph |
| Glide Ratio | 8:1 |
| Landing Roll | 300 ft |
| Max Normal Op – VNO | 100mph |
| Maximum Speed- VNE | 120 mph |
| Stall Speed- VSO | 35 mph |
| Takeoff Run | 300 ft |
Specifications:
| Design Loads | +5.7G and -2.3G |
| Empty Weight | 600 lbs |

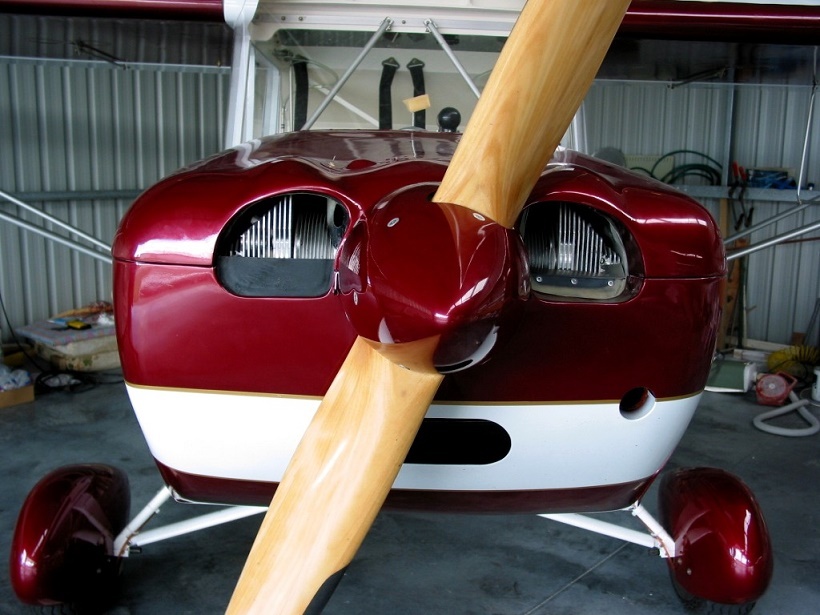

| Engine | ZonSen C80 or C100 |
| Engine HP | 85 hp to 100 hp |
| Field Assembly | Folding Wings-15 Min/wing |
| Fuel Capacity | 27 Gal-12 in Main + 15 in Wings |
| Fuselage Width | 39 in (Extra Wide Version 41”) |
| Gross Weight | 1,150 lbs |
| Height | 73” |
| Length | 19ft 9 in |
| Seat(s) | 2 |
| Useful Load | 550 lbs |
| Wing Area | 128 sq ft |
| Wing Loading | 9 lbs/sqft |
| Wingspan | 28’ 6” |
