Known for its control and harmony. This is a special plane for the pilot who appreciates the “Low and Slow” joy of flying!
Features:
- All wood is cut to shape
- Metal parts are ready for installation

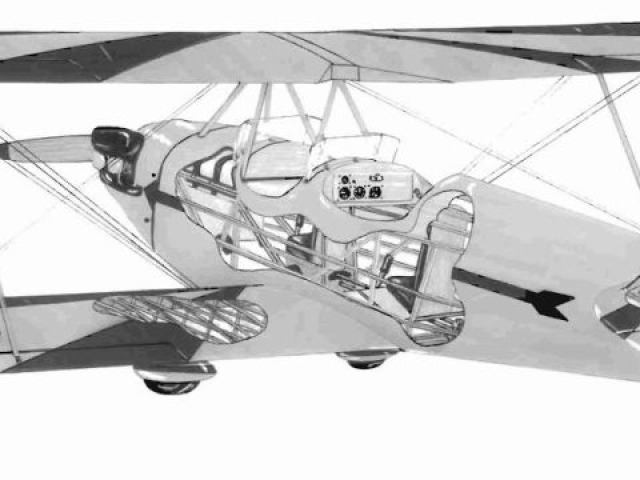

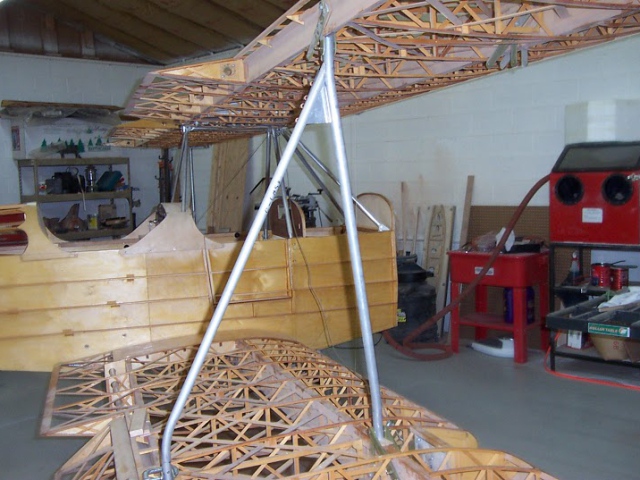

- Warner Truss Frame
- 1/8” birch ply skin
- Pre-molded fiber-glass cowling
- Moulded windshield w/canopy
Build Kit
- Complete Airframe Kit :- Standard and Quick-Build
- Partial Airframe Kits :- Wing, Fuselage and Hardware Kits
- Plans and Instructions Included
- Excluded :- Engine, Engine Mount, Instruments, Upholstery, Restraints and Paint
Flight Performance:
| Climb Rate | 800-900 FPM |
| Cruise Speed | 80-85 mph |
| Landing Roll | 300 ft |
| Max Normal Op-VNO | 95 mph |
| Maximum Speed-VNE | 120 mph |
| Stall Speed- VSO | 40 mph |
| Takeoff Run | 300 ft |
Specifications
| Cockpit Width | 23 in. |
| Design Loads | +4G and -2.5G |
| Empty Weight | 600 lbs |
| Engine HP | 85-125 hp |
| Fuel Capacity | 13 gal (21 gal w/ wing tanks) |
| Fuselage Height | 6.0 ft |
| Fuselage Length | 17.5 ft |
| Gap Between Upper Wings | 38 in. |
| Maximum Gross Weight | 1,230 lbs |
| Seat(s) | 2 / tandem-dual controls |
| Tail Span | 7.0 ft |
| Wing Area | 176 sq. ft. |
| Wing Loading | 6.98 lb/sqft at gross weight |
| Wingspan | 22.0 ft |
