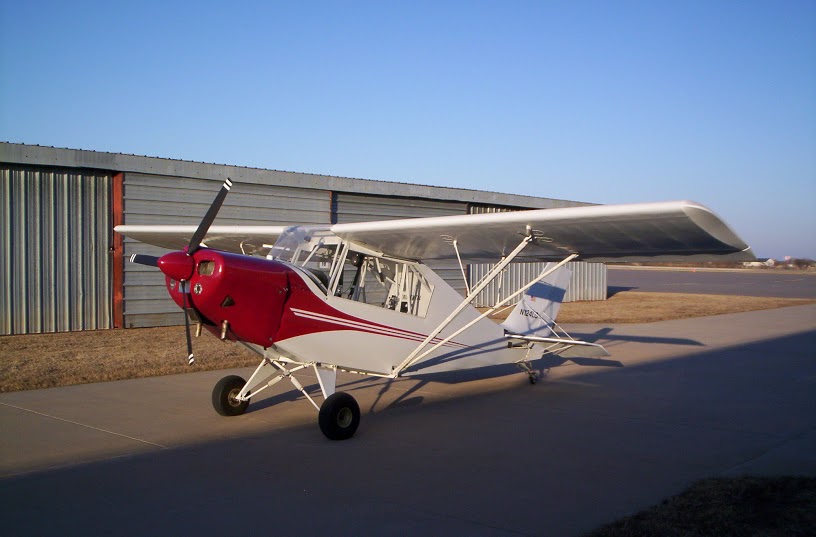

Picture yourself in a shiny new airplane, one that looks and feels like a classic air machine.
Features:
- Can carry a payload equal to its weight.
- Excellent platform for lightweight floats or skis
- Optional two-cycle or four-cycle engines

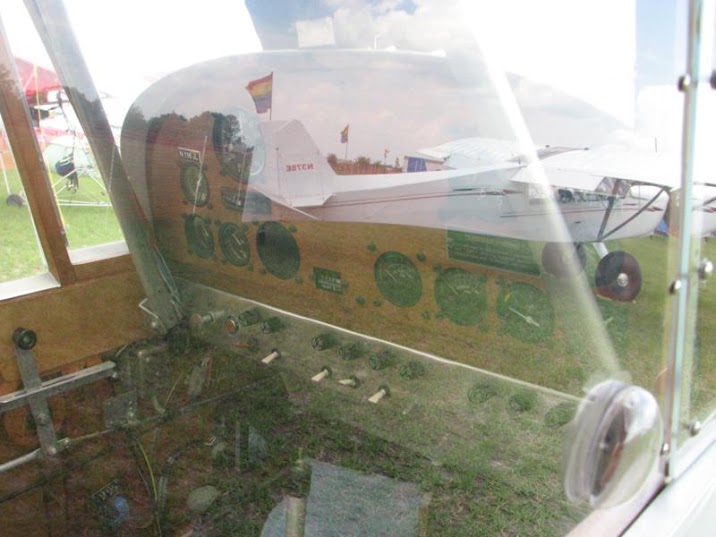

- Roomier cockpit

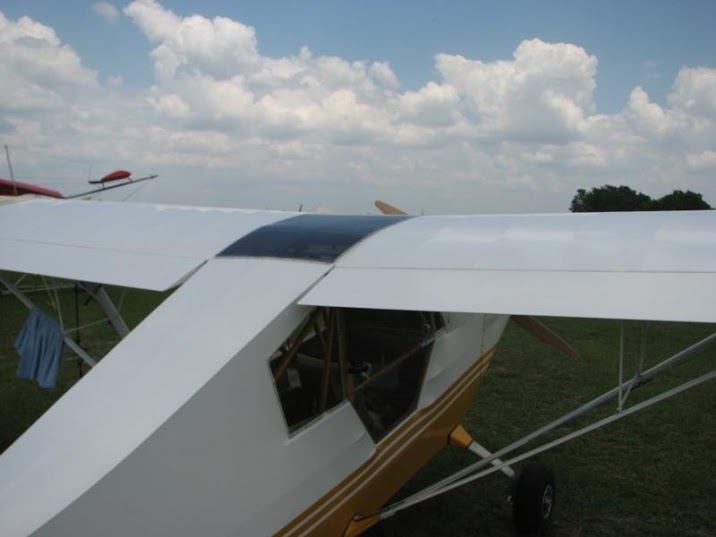

- One man-two minute wing fold system
Build Kit:
- Complete Airframe Kit:- Standard and Quick-Build
- Partial Airframe Kits:- Wing, Fuselage and Hardware Kits

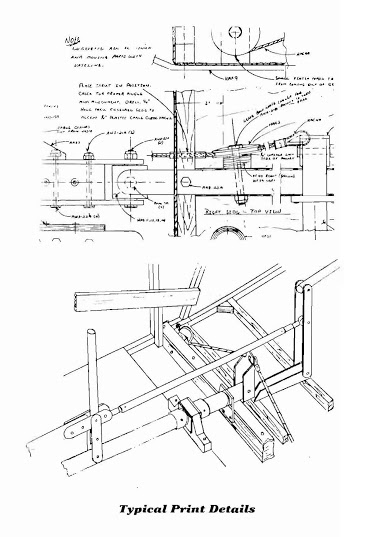

- Technical drawings Included.
- Excluded:- Engine, Engine Mount, Instruments, Upholstery, Restraints and Paint
Flight Performance:
| Climb Rate | 800-900 fpm |
| Cruise Speed | 95 mph |
| Glide Ratio | 9:1 |
| Landing Roll | 350 ft |
| Maximum Speed-VNE | 120 mph |
| Stall Speed -VSO | 38-40 mph |
| Takeoff Run | 500 ft |
| Top Level Speed | 100 mph |
Specifications:
| Cockpit Width | 24 in |
| Construction Time | Approx. 1000 hrs |
| Design Loads | +4.0G and -2.5G |
| Empty Weight | 520 lbs |
| Engine HP | 85 to 115 hp |
| Engines | Rotax 912, C-85, AM-13H, O200 |
| Field Assembly | Approx 30 min |
| Fuel Capacity | 13 gal (Optional wing tanks) |
| Gross Weight | 1050 lbs |
| Height | 5 ft 8 in |
| Length | 18 ft 8 in |
| Power Loading | 10.5 lb/hp |
| Prop Diameter/Pitch | 60”/28” |
| Range | 250-400 Miles |
| Reduction Ratio | 2.58-to-1 |
| Useful Load | 530 lbs |
| Wing Area | 113 sq ft |
| Wing Loading | 9.2 lb/sf |
| Wingspan | 25 ft 3 in |
